1734795-1 RJ45 Single Port 8P8C Shield Modular Jack LPJE841-0DNL

Name: 17347951 RJ45 Single Port 8P8C Shield Modular Jack LPJE8410DNL
Brand: LINK-PP
Price: 0.09 USD

1734795-1 RJ45 Single Port 8P8C Shield Modular Jack LPJE841-0DNL Manufactures

Brand Name : LINK-PP

Model Number : 1734795-1

Certification : UL,ROHS,Reach,ISO

Place of Origin : Guangdong,China

MOQ : 50/500/1000/25K

Price : $0.09-$1.85

Payment Terms : TT,NET30/60/90 Days

Supply Ability : 250000-320000/Month

Delivery Time : 3-6 days

Packaging Details : 50pcs/tray,1200pcs/carton

Port Configuration : Single Port 1 x 1

Shielding : Shielded

Modular Jack Latch Orientation : Latch Up

Number of Positions : 8

Number of Loaded Positions : 8

PCB Mount Orientation : Right Angle

Contact Now

1734795-1 RJ45 8P8C Modular Jack Overview

The 1734795-1 is a modular RJ45 connector designed for Ethernet applications requiring a shielded, right-angle, through-hole solution. It offers 8 positions and 8 contacts (8P8C), making it compliant with standard Ethernet pinouts. The shielded construction provides robust EMI protection. This connector suits various networking equipment, including routers, switches, and industrial control systems.

Part Number	1734795-1
LINK-PP Part Number	LPJE841-0DNL
Connector Type	RJ45 (8P8C)
Port Configuration	Single Port (1x1)
LED Indicators	None
Category Rating	Cat 3
Application-Lan	ETHERNET(NoN PoE)
Contact Plating	Gold Flash (6μ")
LED Option	WITHOUT
Shielding	Yes
Mounting Type	Through-Hole - Solder
Orientation	90° Angle (Right)
Latch	TAB UP
PCB Mount Angle	SIDE ENTRY
Pin Type	THT SOLDER
Operating Temperature	-40°C to +85°C
RoHS Compliant	YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION
Shield EMI Tabs	WITHOUT
Housing Material	Thermoplastic, UL 94V-0 flame retardant
Turns Ratio RX	1CT:1CT
Turns Ratio TX	1CT:1CT

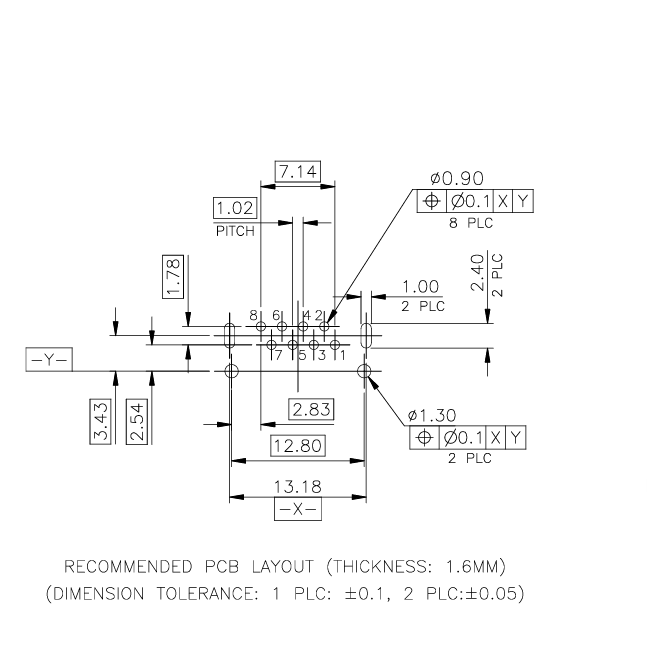

1734795-1 Drawing

1734795-1 Features and Benefits

Shielded Body: Minimizes EMI/RFI interference, ensuring clean signal transmission even in noisy environments.
Right Angle (90°) Configuration: Ideal for edge-mounted PCBs or horizontal layouts.
Durable Gold-Plated Contacts: Provides corrosion resistance and long-term reliability.
Industrial Temperature Range: Supports applications in harsh conditions down to -40°C.
Latch-Up Orientation: Ensures secure mating with standard patch cables in upward-facing ports.
