RJSAE538408 Stacked RJ45 2x4 Without Magnetics Connector LPJE108XAHNL

Name: RJSAE538408 Stacked RJ45 2x4 Without Magnetics Connector LPJE108XAHNL
Brand: LINK-PP
Price: 0.11 USD

RJSAE538408 Stacked RJ45 2x4 Without Magnetics Connector LPJE108XAHNL Manufactures

Brand Name : LINK-PP

Model Number : RJSAE538408

Certification : UL,RoHS,Reach,ISO

Place of Origin : China

MOQ : 50/500/1000/60K

Price : $0.11-$24

Payment Terms : TT,NET30/60/90 Days

Supply Ability : 180K/Month

Delivery Time : Stock

Packaging Details : Tray

Spec : RJSAE538408

Port : 2x4 Female Rj45

Magnetics : WITHOUT

LED : GREEN / YELLOW

Mounting : Side Entry (Right Angle)

Cross Ref : LPJE108XAHNL

Contact Now

RJSAE538408 Stacked RJ45 2x4 Without Magnetics Connector LPJE108XAHNL

2x4 Port 8P8C RJ45 Female Connector without Integrated Magnetics,Green/Yellow LED,Tab Up/Tab Down,RoHS
LINK-PP Part Number	LPJE108XAHNL
Application-Lan	ETHERNET(NoN PoE)
Contact Mating Area Plating	GOLD 6u"/15u"/30u"
Cores per Port	NO
Diodes	NO DIODES
LED Option	Green/Yellow LEDS
Latch	TAB UP/TAB DOWN
Number of Ports	2X4
PCB	FR4
PCB Mount Angle	SIDE ENTRY
PCB Retaining Post	T POST
Package Height (mm)	25.40
Package Length (mm)	28.15
Package Width (mm)	63.86
Pin Type	THT SOLDER
RoHS Compliant	YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION
Search	YES
Shield EMI Tabs	WITH
Speed	without Magnetics
Temperature	- 40 TO + 85℃
Turns Ratio RX	1CT:1CT
Turns Ratio TX	1CT:1CT

Why Choose Us

World’s Leader Supplier Of Integrated RJ45 Connector And Discrete Magnetic Transformers

100% Guarantee Qualtiy

•Manufactured Under Strict Controls.

•100% Tested (Not Just Batch Tested)

•LINK-PP Is OEM Of TE (Tyco) For 9 Years

•Successful Customer: Texas Instruments Samsung Cisco Siemens And Intel…

•LINK-PP Is The Preferred Supplier Of TI (Texas Instruments)

•Quality Guarantee:6 Years

RJSAE538408 Stacked RJ45 2x4 Without Magnetics Connector LPJE108XAHNL

Competitive Price And Service

•More Competitive Price Than Pulse Tyco Halo And Amphenol

•Free Samples Are Available

•Provide New Design For Customer Requirements

•90% Off Shipping Cost By DHL UPS DEDEX Or TNT

•Delivery Time:2-3 Weeks After Orders

Professional Certification

•ISO 9001:2008

•UL Certification

•Reach Cetitifaction

•RoHS Compliance

•Active Environmental Policy

LINK-PP Corporate Policy

• LINK-PP Is Committed To And Expects Quality Performance From Every Employee

• The Company Standard Is Defect-Free Products And Services

•The Corporate Goal Is To Achieve The Highest Level Of Customer Satisfaction

Through Continuous Improvements In Quality, Delivery And Service

Product Tags:

modular jacks rj45

rj45 usb connector combo

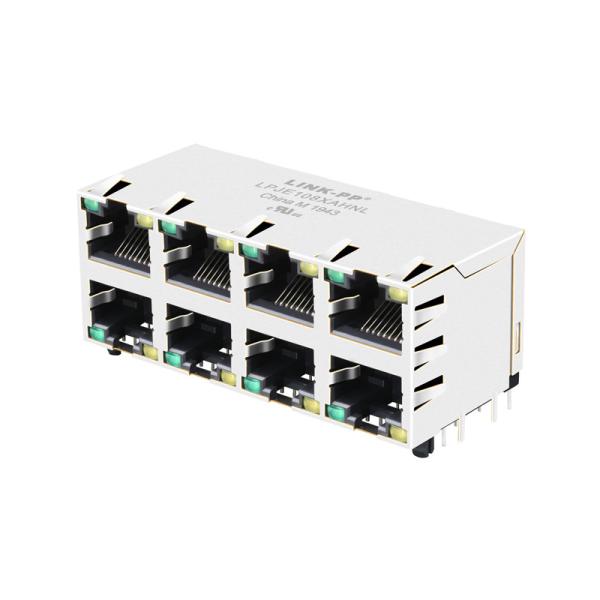

RJSAE538408 Stacked RJ45 2x4 Without Magnetics Connector LPJE108XAHNL Images
