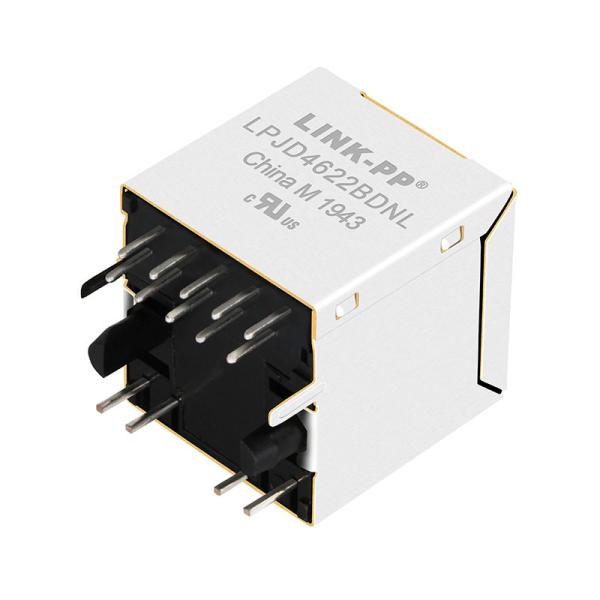

JXD2-0015NL Vertical RJ45 Jack With 1000 Base-T Integrated Magnetic Compatible LPJD4622BDNL

Name: JXD20015NL Vertical RJ45 Jack With 1000 BaseT Integrated Magnetic Compatible LPJD4622BDNL
Brand: LINK-PP
Price: 0.09 USD

JXD2-0015NL Vertical RJ45 Jack With 1000 Base-T Integrated Magnetic Compatible LPJD4622BDNL Manufactures

Brand Name : LINK-PP

Model Number : LPJD4622BDNL

Certification : UL,ROHS,Reach,ISO

Place of Origin : GuangDong, China

MOQ : 50/500/1000/25K

Price : $0.09-$1.85

Payment Terms : TT,NET30/60/90 Days

Supply Ability : 3000000/Month

Delivery Time : Stock

Packaging Details : Optional

Original : JXD2-0015NL

Equivalent : LPJD4622BDNL

Speed : 10/100/1000 BASE-T

Temperature : -40 TO +85℃

File : PDF/3D/ISG/Stp/Step/Datasheet

Samples : Free

Contact Now

JXD2-0015NL Vertical RJ45 Jack With 1000 Base-T Integrated Magnetic Compatible LPJD4622BDNL

Vertical RJ45 Connector with 10/100/1000 Base-T Integrated Magnetics ,Yellow/Green LED,RoHS
LINK-PP Part Number	LPJD4622BDNL
Belfuse Part Number	JXD2-0015NL
Application-Lan	ETHERNET(NoN PoE)
AutomDX	YES
Bst Circuit	YES
Configuration RX	T,C
Configuration TX	T,C
Contact Mating Area Plating	GOLD 6u"/15u"/30u"
Cores per Port	8
Diodes	NO DIODES
LED Option	Yellow/Green
Latch	TAB UP
Number of Ports	1X1
PCB	FR4
PCB Mount Angle	SIDE ENTRY
PCB Retaining Post	T POST
Package Height (mm)	16.70
Package Length (mm)	16.90
Package Width (mm)	16.15
Pin Type	THT SOLDER
RoHS Compliant	YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION
Search	YES
Speed	1000 BASE-T
Temperature	-40 TO +85℃
Turns Ratio RX	1CT:1CT
Turns Ratio TX	1CT:1CT

FEATURES

Manufactured with minimal numbers of solder connections to increase reliability over time
All MagJacks are 100% tested
Multiple solutions can be integrated into one connector series
RoHs compatible
Electrical performance
Shielded magnetics
Shorter PCB traces
Over 50% space savings on PCB per RJ port
