1 Port L22N010-0 2.5G Base-T Ethernet Gigabit Transformer Modules SMD

Application:

1 Rigid-Flexible PCB Assembly

2 Human Machine Interfaces

3 CPU Cards and Modules

4 Display Filters and Films

1.Electrical Specifications @25℃
Type : Balance low pass 100Ω impedance
2.Insertion Loss
1-50MHZ .................-0.5 dB Max
50-125MHZ .............-1.0 dB Max
125-300MHZ ...........-2.0 dB Max
3.Return Loss
1-50MHz .................-20 dB Minload 100Ω
50-200MHz .............-20+8*log(Freq MHz/50MHz) dB Min load 100Ω
200-300MHz ...........-15+30*log(Freq MHz/200MHz) dB Min load 100Ω
4.Reflected CM to Diff Conversion (REF)
1MHZ ......................-30 dB Min
50MHZ ....................-30 dB Min
100MHZ ..................-27 dB Min
200MHZ ..................-24 dB Min
300MHZ ..................-22 dB Min
5.CM to DM Conversion(REF)
1-50MHZ ................-35 dB Min
125MHZ .................-30 dB Min
200MHZ .................-27 dB Min
300MHZ .................-24 dB Min
6.Reflected Diff to CM Conversion (REF)
1-10MHZ ................-48 dB Min
10-300MHZ ............-48+19*log(Freq MHz/10MHz) dB Min
7.CM to CM Attenuation (REF)
1-200MHZ ..............-25 dB Min
200-300MHZ ..........-20 dB Min
8.Cross Talk (REF)
1-125MHZ ..............-30 dB Min
125-200MHZ ..........-25 dB Min
200-300MHZ ..........-25 dB Min
9.Inductance

@ 100KHz, 0.1V, 8mA DC BIAS 160uHMin
10.HiPot Test
@ 1500 Vrms
11.Turns Ratio
@ 1:1±5%

gigabit ethernet transformer

power over ethernet transformer

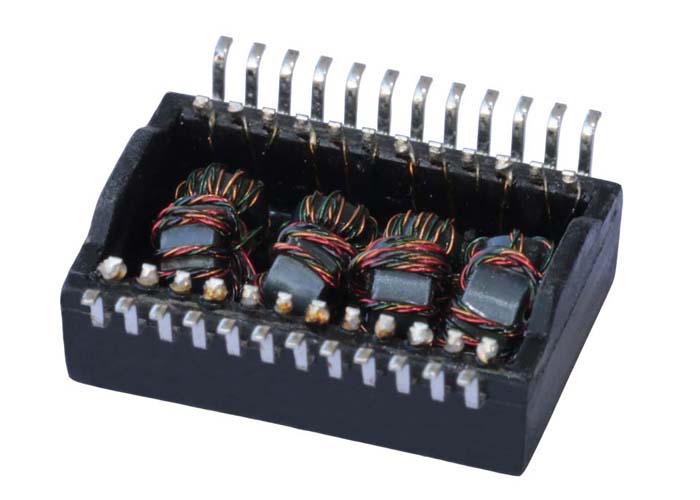

1 Port L22N010-0 2.5G Base-T Ethernet Gigabit Transformer Modules SMD Images
