RM7-ZZ-0002 2X6 Multi-port RJ45 1000Base-T Connectors LPJG67537A47NL W / LED

Brand Name : LINK-PP

Model Number : RM7-ZZ-0002

Certification : UL,RoHS,Reach,ISO

Place of Origin : China

MOQ : 50/500/1000/60K

Price : $0.11-$24

Payment Terms : TT,NET30/60/90 Days

Supply Ability : 180K/Month

Delivery Time : Stock

Packaging Details : Tray

Product Name : RM7-ZZ-0002

RJ45 Connector : 2X6 Port Muti-port,Custom

Plating : Gold or Tin Plate,OEM

Gender : Female,Receptacle

Application : PCB,networking and communication equipments

base : 1000M

Contact Now

RM7-ZZ-0002 2X6 Multi-port RJ45 1000Base-T Connectors LPJG67537A47NL W / LED

Quick Details

1. 2X6 Multi-port RJ45 connector

2. RJ45 Jack without magnetic modules

3. Shielded RJ45 Modular Jack

4. Router, PC Mainboard, SDH, PDH

5. Reduce EMI radiation, Improve EMI performance

6. Designed to meet IEEE802.3u requirement

Description:

LINK-PP Part Number LPJG67537A47NL

OCL:(@ 100KHz,0.1V,8mA DC Bias)

350uH MIN

Turn Ratio(±2%):

PRI : SEC=1CT :1CT ±2%

Insertion Loss :

-1.0dB MAX @ 1-100MHz

Return Loss :

-18dB MIN @ 1-30MHz

-16dB MIN @ 30-60MHz

-12dB MIN @ 60-80MHz

-10dB MIN @ 80-100MHz

Cross talk :

-30dB MIN @ 1-100MHz

Common Mode Rejection :

-30dB MIN @ 1-100MHz

Hipot : 1500Vrms MIN

Operating Temperature Range :

-40℃ TO 85℃

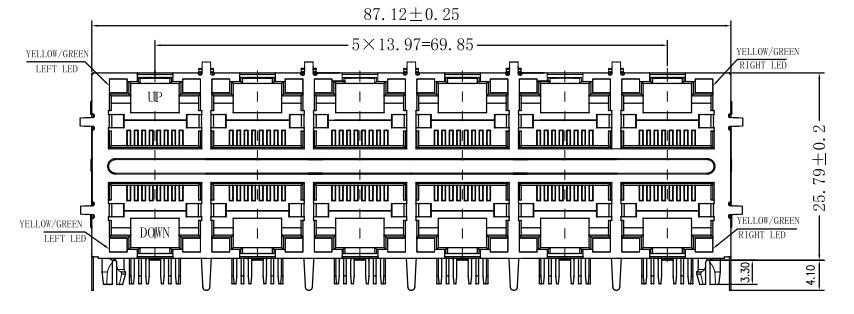

Designing Model RM7-ZZ-0002
Cores per Port 8
LED Option G,Y/Y,G
Latch TAB UP/DOWN
Number of Ports 2X6
PCB Mount Angle SIDE ENTRY
Package Height (mm) 25.79
Package Length (mm) 87.12
Package Width (mm) 28.35
Shield EMI Tabs WITH
Speed 1000 BASE-T
Temperature -40 TO 85℃
Turns Ratio RX 1CT:1CT
Turns Ratio TX 1CT:1CT

Applications:

Used for networking and communication equipments such as HUB, PC card, Switch, Router, PC Mainboard, SDH, PDH, IP Phone, xDSL modem

Competitive Advantage:

16 years production experience,

2600 staff,

100% test

Flexible delivery time
