MIC24210-0104T-LF3 10/100M AutoMDIX Magnetic LPJ0011DNL RJ45 Jack 8P8C Shield

Name: MIC242100104TLF3 10100M AutoMDIX Magnetic LPJ0011DNL RJ45 Jack 8P8C Shield
Brand: LINK-PP
Price: 1 USD

MIC24210-0104T-LF3 10/100M AutoMDIX Magnetic LPJ0011DNL RJ45 Jack 8P8C Shield Manufactures

Brand Name : LINK-PP

Model Number : MIC24210-0104T-LF3

Certification : UL,ROHS,Reach,ISO

Place of Origin : China

MOQ : 50/500/1000

Price : Supportive

Payment Terms : TT,NET30/60/90 Days

Supply Ability : 4600K.PCS/Month

Delivery Time : Stock

Packaging Details : 50pcs/tray,1200pcs/carton

Specification : MIC24210-0104T-LF3

LINK-PP Part : LPJ0011DNL

Standards : IEEE802.3

Ethernet : 10/100M-bit

Documents Available : PDF/3D/Step/IGS/Price/Cross

Samples : Available

Contact Now

MIC24210-0104T-LF3 10/100M AutoMDIX Magnetic LPJ0011DNL RJ45 Jack 8P8C Shield

1. LINK-PP LPJ0011DNL Magnetics jack rj45

2. Magnetic RJ45 Jack IEEE 802.3u 100BASE-T

3. 10/100M AutoMDIX Data I/O connector .

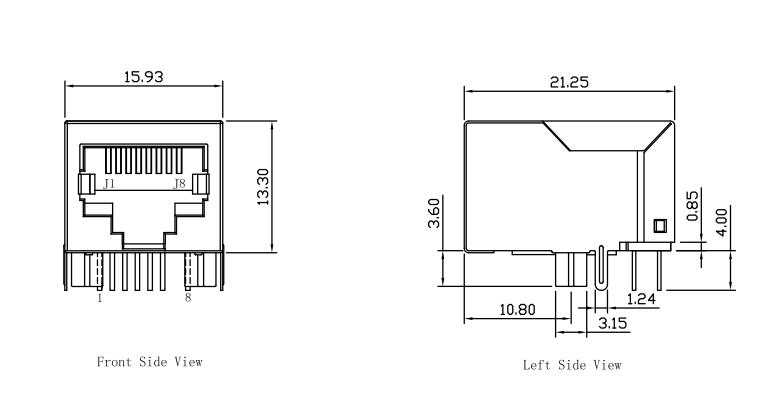

4. Dimension : 15.93x21.25x13.30mm

MIC24210-0104T-LF3 10/100M AutoMDIX Magnetic LPJ0011DNL RJ45 Jack 8P8C Shield

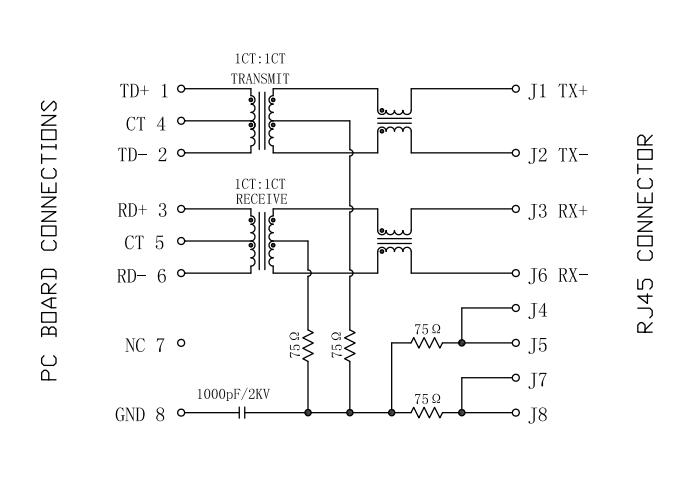

Turn Ratio(±2%):	TX=1CT:1 RX=1CT:1CT
Inductance OCL	350uH MIN/@ 100KHz,0.1V,8mA DC Bias
Insertion Loss	-1.0dB MAX @ 1-65MHz
Return Loss	-20dB MIN @ 1-10MHz
	-16dB MIN @ 10-30MHz
	-12dB MIN @ 30-60MHz
	-10dB MIN @ 60-100MHz
Cross talk	-40dB MIN @ 1-30MHz
	-35dB MIN @ 30-60MHz
	-30dB MIN @ 60-100MHz
Common Mode Rejection	-30dB MIN @ 1-50MHz
Common Mode Rejection	-20dB MIN @ 50-150MHz
Hipot Test	1500Vrms MIN
Operating Temperature Range	0℃ TO 70℃.

NOTES:
1.Designed to support application,such as SOHO(ADSL
modems),LAN-on-Motherboard(LOM),hub and Switches.
2.Meets IEEE 802.3 specification
3.Connector Materials:
Housing: Thermoplastic PBT+30%G.F UL94V-0
Contact: Phosphor Bonze C5210R-EH Thickness=0.35mm
Pins: Brass C2680R-H Thickness=0.35mm
Shield: SUS 201-1/2H Thickness=0.2mm
Contact plating: Gold 6 micro-inches min.In contact area.
4.Wave solder tip temperature: 265℃ Max,5 Sec Max.

MIC24210-0104T-LF3 10/100M AutoMDIX Magnetic LPJ0011DNL RJ45 Jack 8P8C Shield
