7499010126A 1X1 Vertical Entry RJ45 Modular Jack 8P8C Shielded LPJD5011BENL

Name: 7499010126A 1X1 Vertical Entry RJ45 Modular Jack 8P8C Shielded LPJD5011BENL
Brand: LINK-PP
Price: 0.09 USD

Brand Name : LINK-PP

Model Number : 7499010126A

Certification : UL,ROHS,Reach,ISO

Place of Origin : China

MOQ : 50/500/1000/25K

Price : $0.09-$1.85

Payment Terms : TT,NET30/60/90 Days

Supply Ability : 4000K/month

Delivery Time : Stock

Packaging Details : Tray, Tape & Reel

Spec : 7499010126A =MIC24611-5117T-LF3

LINK-PP Part Number : LPJE681XDNL

LEDs : Green / Yellow

Shielded : Yes

Samples : Free

Cross rf : 7499010126A => LPJE681XDNL

Family : Vertical Rj45 Mod-Jack

Speed : 10/100 Magnetic

Contact Now

7499010126A 1X1 Vertical Entry RJ45 Modular Jack 8P8C Shielded LPJD5011BENL

1. LPJD5011BENL Vertical Rj45 Jack

2. 1X1 Vertical Type 7499010126A

3. Through hole RJ45 modular jack

4. 7499010126A PIN TO PIN LPJD5011BENL

5. 7499010126A = MIC24611-5117T-LF3

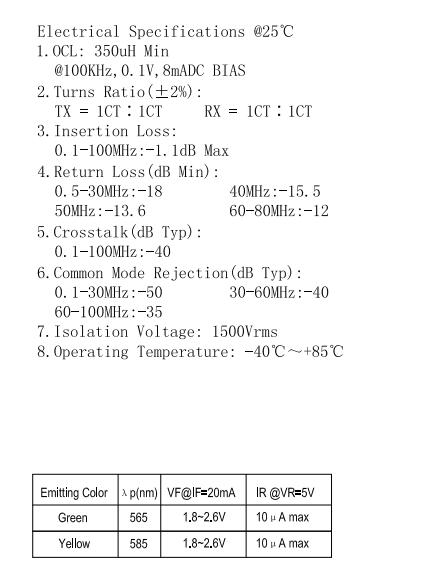

Description:

Application-LAN	ETHERNET(NON POE)
AutomDX	YES
Bst Circuit	YES

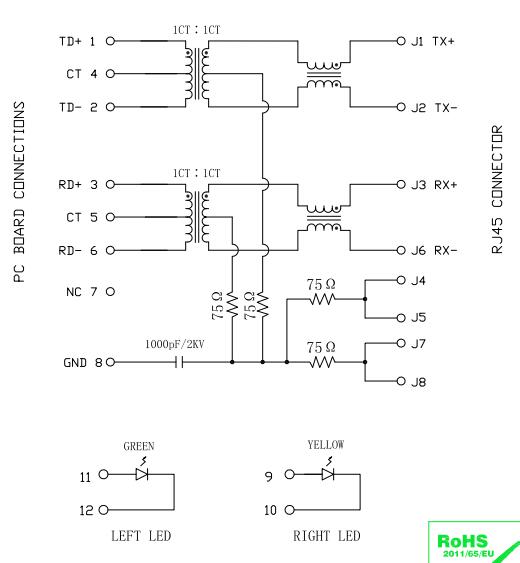

Configuration RX	T,C
Configuration TX	T,C
Contact Mating Area Plating	GOLD 6u"/15u"/30u"
Cores Per Port	4
Diodes	NO DIODES
LED Option	GREEN/YELLOW
Latch	UP/DOWN
Number of Ports	SINGLE PORT With VERTICAL
PCB	FR4
PCB Mount Angle	SIDE ENTRY
PCB Retaining Post	T POST
Pin Type	THT SOLDER
RoHS Compliant	YES-RoHS-5 With LEAD IN SOLDER EXEMPTION
Search	YES
Shield EMI Tabs	With OR WithOUT
Speed	10/100 BASE-T
Temperature	-40 TO 85°C
Turns Ratio RX	1CT:1
Turns Ratio TX	1CT:1

Applications:

Used for networking and communication equipments such as HUB, PC card, Switch, Router, PC Mainboard, SDH, PDH, IP Phone, xDSL modem

Competitive Advantage:

16 years production experience,

2600 staff,

100% test

Flexible delivery time
