SS74800-038F Single Port Gigabit RJ45 Modular Connector With LED LPJE160GDNL

• Single Port RJ45 modular jack
• Network Interface Module
• RJ45 with leds
• Files : PDF/3D/ISG/Stp/Step/Datasheet
• Cross rf : SS74800-038F => LPJE160GDNL

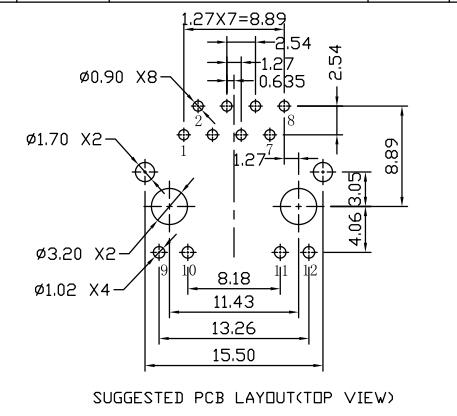

• Dimension: 13.65X21.27X15.88MM
• Stewart connector rj45
  Product Type Single Port Jack
  Part Number SS-7488S-YG-PG4-BA
  Performance Standard
  Orientation Horizontal
  Ports 1
  Shielding Yes
  Shield Type PG4
  8P8C 8 Positions 8 Contacts
  Port Opening Tab Down
  Low Profile
  LED YELLOW-GREEN

Description:

1. Product Type Features:

1) Product Type = Connector
2) Jack Type = RJ45
3) Profile = Standard

2. Mechanical Attachment:
1) Jack Configuration = 1 x 1

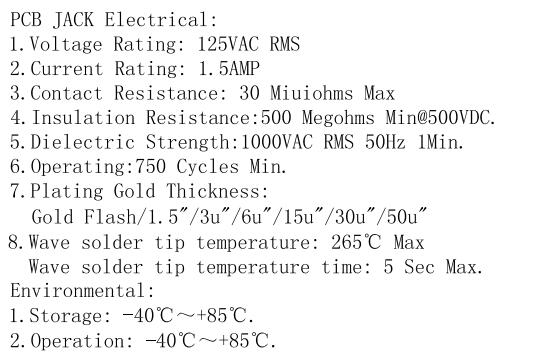

3. Electrical Characteristics:
1) Shielded = Yes

4. Termination Related Features:
1) EMI Finger - Bottom = With
2) Termination Method = Solder

5. Body Related Features:
1) Port Configuration = Single
2) EMI Fingers -Top and Sides = With
3) Latch Orientation = Standard - Latch Down
4) PCB Tail Length

6. Contact Related Features:
1) Preloaded = Yes
2) Contact Termination Type = Through Hole/Surface Mount

7. Housing Related Features:
1) Connector Style = Jack

8. Industry Standards:
1) RoHS/ELV Compliance = RoHS compliant, ELV compliant
2) Lead Free Solder Processes = Wave solder capable to 240°C,

Wave solder capable to 260°C, Wave solder capable to 265°C
3) RoHS/ELV Compliance History = Always was RoHS compliant

9. Identification Marking:
1) Left LED Color (Position #1) = Yellow - 250 ohm resistor
2) Right LED Color (Position #2) = Green - 250 ohm resistor

10. Conditions for Usage:
1) Applies To = Printed Circuit Board
2) Environmental Conditions = Office / Premises
3) Operating Temperature (°C ) = 0 - 70/-40 - +85

Applications:

Used for networking and communication equipments such as HUB, PC card, Switch, Router, PC Mainboard, SDH, PDH, IP Phone, xDSL modem

Competitive Advantage:

16 years production experience,

1100 staff,

100% test

Flexible delivery time
