L-KLS12-TL130-1X1-G/Y-03 10/100M SMT RJ45 Connector 1 x 1 With LEDs LPJ3011ABNL

Product Categories
LINK-PP INT'L TECHNOLOGY CO., LIMITED
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

L-KLS12-TL130-1X1-G/Y-03 10/100M SMT RJ45 Connector 1 x 1 With LEDs LPJ3011ABNL

  • 1
  • 2

Brand Name : LINK-PP

Model Number : L-KLS12-TL130-1X1-G/Y-03

Certification : ISO 9001,ISO 14001,UL,SGS,REACH168

Place of Origin : China

MOQ : 200/500//1200

Price : Supportive & Competitive

Payment Terms : TT,NET30/60/90 Days

Supply Ability : 4200K-PCS/Month

Delivery Time : Stock

Packaging Details : 50pcs/tray,1200pcs/carton

Part Number : L-KLS12-TL130-1X1-G/Y-03

Application : 10/100Base-T

Termination : Solder

LEDs : Green-Yellow

Latch : UP

Archivi Disponibili : PDF/3D/ISG/Stp/Step/Datasheet

Contact Now

L-KLS12-TL130-1X1-G/Y-03 10/100M SMT RJ45 Connector 1x1 With LEDs LPJ3011ABNL

Quick Details

Part Number: L-KLS12-TL130-1X1-G/Y-03 L-KLS12-TL130-1X1-G/Y-03 10/100M SMT RJ45 Connector 1 x 1 With LEDs LPJ3011ABNL
Speed: 10/100 Base-T
Number of Ports: 1X1
Application-Lan: Ethernet(NoN PoE)
Latch: Up
PIN Type: Surface Mount
Temperature: 0 TO 70

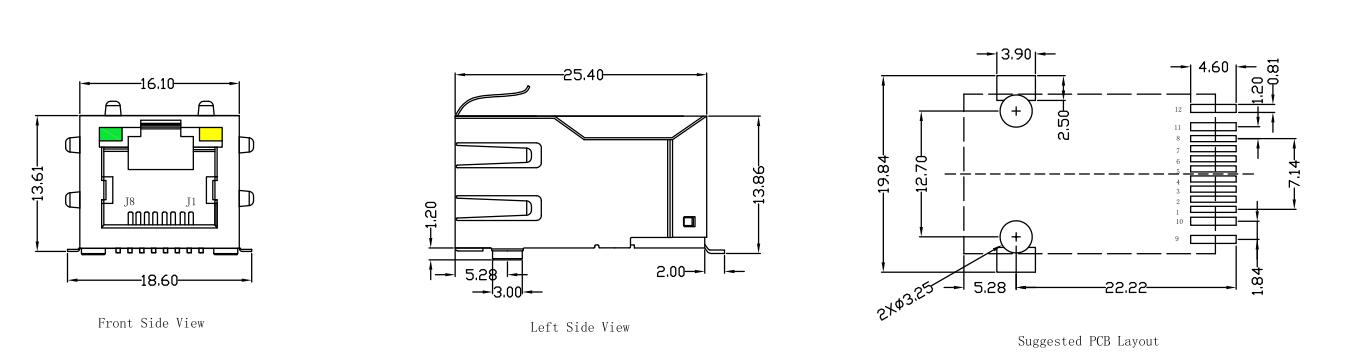

Package Height (mm): 13.61
Package Length (mm): 25.40
Package Width (mm): 16.10
CrossPart Number: LPJ3011ABNL

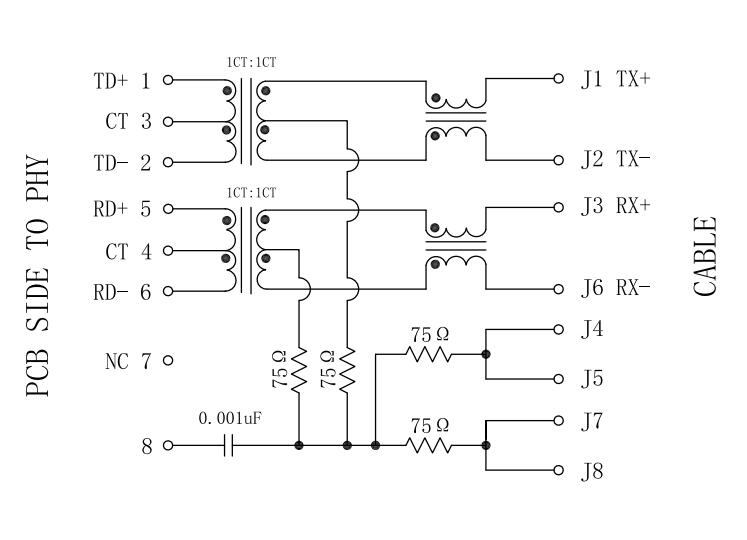

Electrical Specifications @ 25℃

unless otherwise noted:

1.Turns Ratio:(±3%) TX=1CT∶1CT RX=1CT∶1CT
2.Intuctance OCL 350uH MIN @ 100KHz 0.1V 8mA DC
3.DCR : 1.2Ω MAX
4.Insertion Loss(dB MIN): 1-100MHz:-1.0dB Min
5.Return Loss(dB Min): 1-30MHz:-18 dB Min
30-60MHz:-15dB Min
60-100MHz:-12dB Min
6.Cross talk: 1-30MHz:-40dB Min
30-60MHz:-35dB Min
60-100MHz:-30dB Min
5.CMR: 1-50MHz:-30dB Min
50-100MHz:-20dB Min
7.Isolation Voltage: 1500Vrms/60Hz
8.Operating Temperature Range: 0℃-70℃.

L-KLS12-TL130-1X1-G/Y-03 10/100M SMT RJ45 Connector 1 x 1 With LEDs LPJ3011ABNL

L-KLS12-TL130-1X1-G/Y-03 10/100M SMT RJ45 Connector 1 x 1 With LEDs LPJ3011ABNL

Applications:

Used for networking and communication equipments such as HUB, PC card, Switch, Router, PC Mainboard, SDH, PDH, IP Phone, xDSL modem
