PT61020 / PT61020L Magnetic Lan 10/100/1000 BASE-T Ethernet Isolation Transformer

Name: PT61020 PT61020L Magnetic Lan 101001000 BASET Ethernet Isolation Transformer
Brand: LINK-PP
Price: 0.06 USD

PT61020 / PT61020L Magnetic Lan 10/100/1000 BASE-T Ethernet Isolation Transformer Manufactures

Brand Name : LINK-PP

Model Number : PT61020L

Certification : UL,RoHS,Reach,ISO

Place of Origin : Guangdong,China

MOQ : 400/2000/10K/25K

Price : $0.06-$3.2

Payment Terms : TT,NET30/60/90 Days

Supply Ability : 3KK/Month

Delivery Time : In Stock Ship Within 3 Days

Packaging Details : Tape & Reel 400 pcs./reel

Vendor : PT61020 / PT61020L

Manufacturer : LP5007NL

Pin No : 24 pins

Series : Single Port GigE Transformer

Termination Style : Surface mount package

Isolation Voltage : 1.5KV

Samples : Free Offer

PoE : Support

Contact Now

Product Overview – PT61020L 10/100/1000BASE-T LAN Transformer Module

Features

■ Compliant with IEEE802.3ab Draft Standards for 1000 Base-T.

■ Surface mount package.
■ Designed for Long Haul Gigabit Ethernet 10/100/1000 Base-T Full Duplex applications.
■ Low-profile surface-mount packaging designed for reflow processing (245 °C peak).
■ Supports 4 pairs of Category 5 UTP cables.

■ Applicable to LAN (Local Area Network) and Ethernet
■ RoHS compliant.

Specification

Parameter	Specification
Part Number	PT61020L
Transformer Type	LAN Transformer Module
Application	10/100/1000BASE-T Ethernet
Mounting Type	Surface Mount (SMD)
Operating Temperature	-40°C to +85°C
Packaging	Tape & Reel
RoHS Compliant	Yes
REACH Compliant	Yes
Terminal Finish	Tin
PoE Support	Up to 640 mA for 1000BASE-T
Turns Ratio	1CT : 1CT ±5%

Mechanical Dimensions

Dimension	Size
Length	17.62 mm
Width	16.00 mm
Height	6.00 mm

Electrical Specifications (@ 25°C)

Parameter	Specification
Inductance	350 µH min @ 100 kHz, 0.2 V, 8 mA DC Bias
Leakage Inductance	0.50 µH max @ 100 kHz, 0.2 V
Interwinding Capacitance	25 pF typ @ 100 kHz, 0.2 V
DC Resistance (DCR)	0.90 Ω max
Insertion Loss	-1.1 dB max (0.3–100 MHz)
Return Loss (dB min)	0.3–30 MHz: -18 dB 40 MHz: -14.4 dB 50 MHz: -13.1 dB 60–80 MHz: -12 dB
Crosstalk (dB min)	0.3–30 MHz: -35 dB 60–100 MHz: -28 dB
Common Mode Rejection (CMRR)	0.3–30 MHz: -40 dB 60 MHz: -35 dB 80–100 MHz: -30 dB
Hi-Pot Isolation Voltage	1500 VAC, 1 mA, 1 second

PT61020L Datasheet

PT61020L Datasheet Electrical Schematic

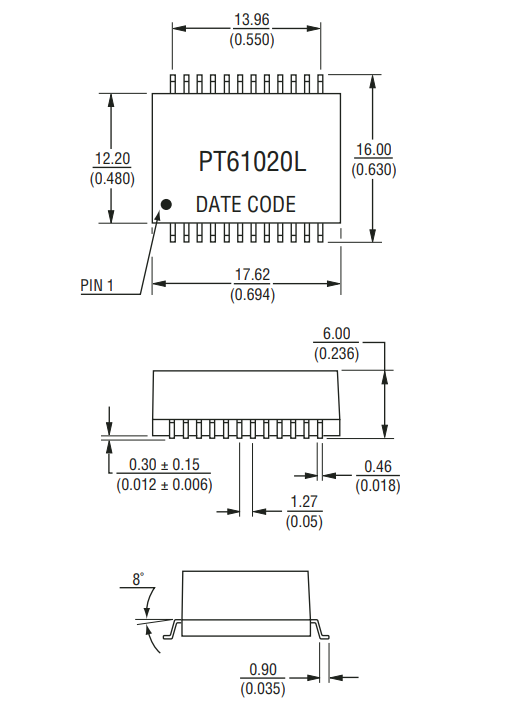

PT61020L Datasheet Dimensions

PT61020 / PT61020L Magnetic Lan 10/100/1000 BASE-T Ethernet Isolation Transformer

PT61020L Datasheet Recommended Layout

PT61020 / PT61020L Magnetic Lan 10/100/1000 BASE-T Ethernet Isolation Transformer
