Equivalent PT61017PEL Ethernet Magnetic Transformers 10/100Base SMD

Brand Name : LINK-PP

Model Number : LP1102NL

Certification : UL,RoHS,Reach,ISO

Place of Origin : Guangdong,China

MOQ : 400/2000/10K/25K

Price : $0.06-$3.2

Payment Terms : TT,NET30/60/90 Days

Supply Ability : 3KK/Month

Delivery Time : Stock

Packaging Details : T&R

Spec : PT61017PEL

Substitute : LP1102NL

Turns Ratio : 1CT : 1CT

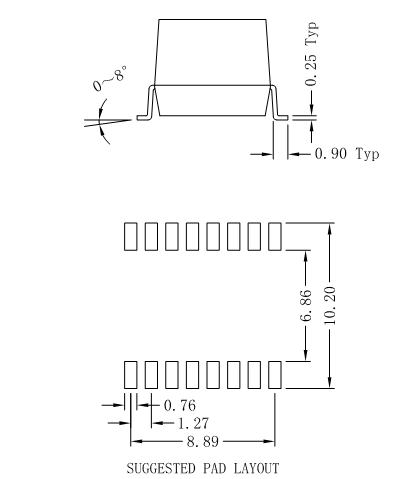

Size / Dimension : 12.80 mm L x 9.30mm W

Hipot : 1500V

Samples : Free Available

Cross Rf : PT61017PEL = LP1102NL

Contact Now

Equivalent PT61017PEL Ethernet Magnetic Transformers 10/100Base SMD

Features
IEEE 802.3 Ethernet compatible
Designed for AMD IC manufacturers
Fully integrated for adapter, hub and motherboard applications
RoHS compliant

Applications
LAN (Local Area Network)
Ethernet

Turns Ratio ± 5% ....................1CT*:1CT*
Inductance
Pin 1-3, 6-8 ..350 µH min. @ 100 KHz,
0.2 Vrms, 8 mA DC Bias
DCR
Pin 1-3, 6-8 ........................ 0.6 Ω max.
Pin 9-11, 14-16 ................... 1.1 Ω max.
Insertion Loss
0.3-100 MHz ................. -1.15 dB max.
Return Loss
30 MHz .............................-18 dB min.
60 MHz .............................-12 dB min.
100 MHz .............................-10 dB min.
Common Mode Rejection
30 MHz .............................-40 dB Min.
60 MHz .............................-35 dB Min.
100 MHz .............................-30 dB Min.
Crosstalk
1-60 MHz .........................-45 dB Min.
60-100 MHz .......................-35 dB Min.
Hipot
1 mA, 2 sec. ......1500 VAC (PRI-SEC)
Operating Temperature ....0 °C to +70 °C
Storage Temperature.. -25 °C to +125 °C
