LP5020NLR Gigabit 2x 10/100/1000Base-T Magnetic Module SMD 50pins Transformer

Name: LP5020NLR Gigabit 2x 101001000BaseT Magnetic Module SMD 50pins Transformer
Brand: LINK-PP
Price: 0.06 USD

LP5020NLR Gigabit 2x 10/100/1000Base-T Magnetic Module SMD 50pins Transformer Manufactures

Brand Name : LINK-PP

Model Number : LP5020NLR

Certification : UL,RoHS,Reach,ISO

Place of Origin : Guangdong,China

MOQ : 400/2000/10K/25K

Price : $0.06-$3.2

Payment Terms : TT,NET30/60/90 Days

Supply Ability : 3KK/Month

Delivery Time : Stock

Packaging Details : T&R

Specification : LP5020NLR

P/N : LP5020NLR

Mounting : SMD

Apllication : 10/100/1000base-T

Measure : 17.70x15.80x6.60mm

Samples : Available

Archivi Disponibili : PDF/3D/ISG/Stp/Step/Datasheet

Contact Now

LP5020NLR Gigabit 2x 10/100/1000Base-T Magnetic Module SMD 50pins Transformer

Specification	P/N	Brand	Description
LP5020NLR	LP5020NLR	LINK-PP	2x 10/100/1000Base-T Magnetic Module SMD Or 4x 10/100Base-T Magnetic Module SMD

Series	Transformer Type	Applications	Turn Radio
Transformer	Isolation and Data Interface	10/100/1000 Base-T	1:1

Mounting Type	Size / Dimension	Height - Seated (Max)	Unit Price(USD)
Surface Mount	27.94x10.92	8.66mm	Supportive

NOTES:
1.Designed to support dual gigabit ethernet
Or Quad Port 10/100Base-T Ethernet
10/100/1000 AutoMDIX
2.With various Turns Ratios.
3.350uH min OCL with 8mA bias .
4.RoHS "NL" peak solder rating 260± 5℃.
5.UL Certification: File Number E484635

LP5020NLR Gigabit 2x 10/100/1000Base-T Magnetic Module SMD 50pins Transformer

Product Tags:

LP5020NLR Magnetic Module

1000base-t magnetic module

50pins SMD Transformer

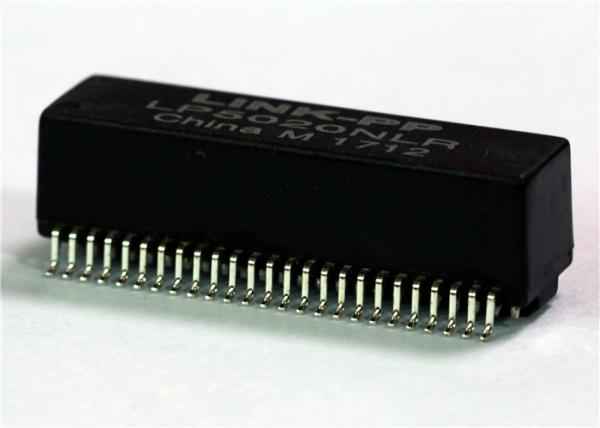

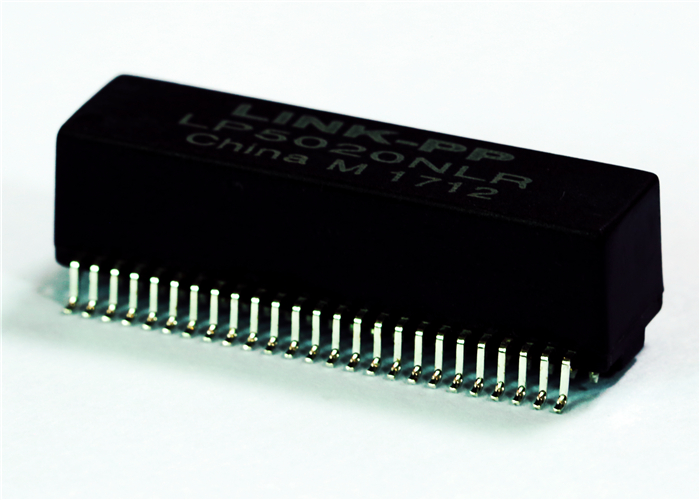

LP5020NLR Gigabit 2x 10/100/1000Base-T Magnetic Module SMD 50pins Transformer Images
