SI-60078-F 100Base-T Connector Rj45 Socket LPJ0011CNL 8 ways without LEDs

Name: SI60078F 100BaseT Connector Rj45 Socket LPJ0011CNL 8 ways without LEDs
Brand: LINK-PP
Price: 1 USD

SI-60078-F 100Base-T Connector Rj45 Socket LPJ0011CNL 8 ways without LEDs Manufactures

Brand Name : LINK-PP

Model Number : SI-60078-F

Certification : UL,ROHS,Reach,ISO

Place of Origin : China

MOQ : 50/500/1000

Price : Supportive

Payment Terms : TT,NET30/60/90 Days

Supply Ability : 4600K.PCS/Month

Delivery Time : Stock

Packaging Details : 50pcs/tray,1200pcs/carton

Specification : SI-60078-F

Part No : LPJ0011CNL

Ethernet : 1 x 10/100 BT Interface

Mounting : Thru-hole

Termination : Solder

Samples : Available Free

Contact Now

SI-60078-F Magnetic RJ45 Jack Equivalent Specification

Single Port Rj45 Fase Ethernet SI-60078-F
1x1 10/100Mbps Configuration Without LEDs
LPJ0011CNL Compatible / Cross Equivalent in China
Reach,UL Complaint

1.Designed to support application,such as SOHO(ADSL
modems),LAN-on-Motherboard(LOM),hub and Switches.
2.Meets IEEE 802.3u specification
3.Connector Materials:
Housing: Thermoplastic PBT+30%G.F UL94V-0
Contact: Phosphor Bonze C5210R-EH Thickness=0.35mm
Pins: Brass C2680R-H Thickness=0.35mm
Shield: SUS 201-1/2H Thickness=0.2mm
Contact plating: Gold 6 micro-inches min.In contact area.
4.Wave solder tip temperature: 265℃ Max, 5 Sec Max
5.UL Certification: File Numbe E484635

SI-60078-F 100Base-T Connector Rj45 Socket LPJ0011CNL 8 ways without LEDs

SI-60078-F 100Base-T Connector Rj45 Socket LPJ0011CNL 8ways without LEDs

Product Tags:

stacked rj45 connectors

rj45 with magnetics

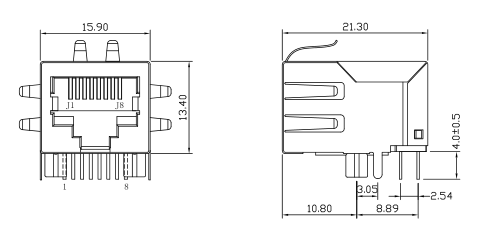

SI-60078-F 100Base-T Connector Rj45 Socket LPJ0011CNL 8 ways without LEDs Images
