350uH 1000base-T SMD 48 Pins Ethernet Transformer H5012FNL / H5012FNLT

Name: 350uH 1000baseT SMD 48 Pins Ethernet Transformer H5012FNL H5012FNLT
Brand: LINK-PP
Price: 0.06 USD

Brand Name : LINK-PP

Model Number : H5012FNLT

Certification : UL,RoHS,Reach,ISO

Place of Origin : China

MOQ : 400/2000/10K/25K

Price : $0.06-$1.2

Payment Terms : TT,NET30/60/90 Days

Supply Ability : 3KK/Month

Delivery Time : In Stock Ship Within 3 Days

Packaging Details : Tape & Reel, Tube

Part Number : H5012FNL / H5012FNLT

No. of Channels/Ports : Dual

Data Rate : 1000BASE-T

Isolation Voltage : 1500 VAC

Turns Ratio : 1CT:1CT

Key Resources : Datasheet, STEP/CAD, EDA/MCAD

Contact Now

Key Technical Specifications

Part Number	H5012FNL /H5012FNLT
Product Category	Pulse Transformer
Transformer Type	LAN 10/100/1000 Base-T
Inductance	350µH
Turns Ratio	1CT:1CT (Tx), 1CT:1CT (Rx)
Mounting Type	Surface Mount
Dimensions	1.095" L x 0.590" W (27.81mm x 14.99mm)
Height	0.285" (7.24mm)
Operating Temperature	0°C ~ 70°C
Packaging	Tube Tape & Reel (TR)

1000base-T Ethernet Magnetics Applications:

1000BASE‑T Ethernet magnetics are essential components in gigabit network systems, providing electrical isolation, signal conditioning, and EMI suppression. These Ethernet transformers are widely used in the following applications:

Networking Equipment
Telecom & Broadband Devices
Industrial & Embedded Systems
Consumer & Enterprise Electronics

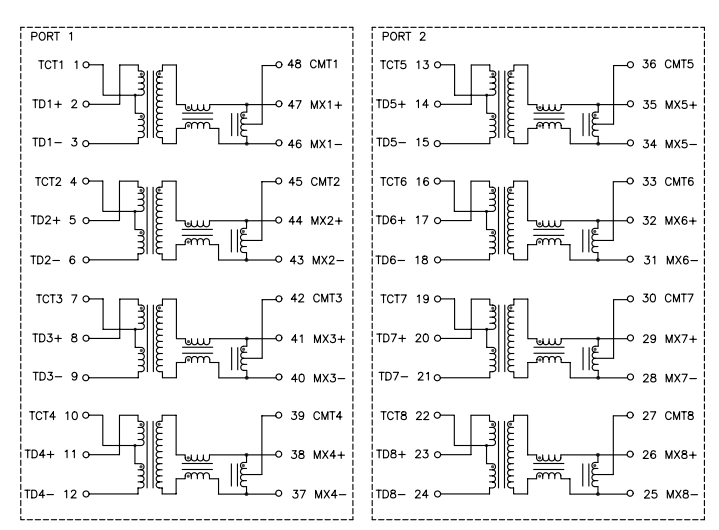

H5012FNL / H5012FNLT Pulse Transformer Datasheet -Schematics :

350uH 1000base-T SMD 48 Pins Ethernet Transformer H5012FNL / H5012FNLT
