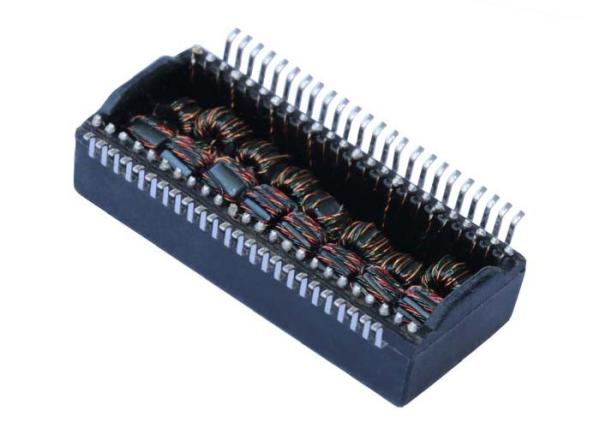

H6101FNLT SMD Gigabit Magnetic POE+ Transformer LP6080NL

Name: H6101FNLT SMD Gigabit Magnetic POE Transformer LP6080NL
Brand: LINK-PP
Price: 0.09 USD

H6101FNLT SMD Gigabit Magnetic POE+ Transformer LP6080NL Manufactures

Brand Name : LINK-PP

Model Number : H6101FNLT

Certification : UL,RoHS,Reach,ISO

Place of Origin : Guangdong,China

MOQ : 400/2000/10K/25K

Price : $0.09-$2.2

Payment Terms : TT,NET30/60/90 Days

Supply Ability : 5KK/Month

Delivery Time : Stock

Packaging Details : T&R

Pulse Electronics : H6101FNLT

LINK-PP P/N : LP6080NL

Application : Ethernet Transformer/Choke

Data Rate : 100/1000base-T POE(+)

PoE : PoE (4pr)

Turns Ratio : 1:1

Contact Now

H6101FNLT ELECTRICAL CHARACTERISTICS AT +25℃

MEETS IEEE 802.3 SPECIFICATION
PARAMETER	SPECIFICATIONS
TURNS RATIO	1.00士2%
POLARITY	PER SCHEMATIC
INSERTION LOSS	-1.2 dB MAX @ 100KHz -0.2-0.002*1.4 dB MAX @ 1-125KHz
RETURN LOSS	-16 dB MIN @ 1-40KHz -10+20*LOG 10(f/80 MHz)dB MIN @ 40-100KHz
INDUCTANCE(OCL)	350uH MIN
CROSSTALK, ADJACENT CHANNELS	-50 dB MIN @ 1MHz -55+22*LOG10(f/10)dB MIN @ 10-100MHz
COMMON MODE REJECTION RATIO	-50 dB MIN @ 2MHz -15+20*LOG10(f/200)dB MIN @ 30-200MHz
DC RESISTANCE,1/2 WINDING	0.30 OHMS TYP
DC RESISTANCE BALANCE	±0.05 OHMS MAX(CENTER TAP SYMMETRY)
DC CURRENT/VOLTAGE RATING-PSE PINS	600 mA MIN @ 57V(CONTINUOUS)
INPUT-OUTPUT ISOLATION	1500 VRMS MIN @60 SECONDS

LP6080NL (Cross H6101FNLT) 1000Base-T Transformer Drawing

LP6080NL.pdf

LINK-PP Services

1. Over 20 Years of Experience:
Since 1997, LINK-PP has specialized in the design, development, production, and sales of RJ45 network connectors and magnetic transformers.

2. OEM Services:
High-quality, reliable, and reasonably priced network magnetics recognized by Fortune 500 OEMs worldwide.

3. Production Capabilities:
The factory is equipped with in-house injection molding, stamping, automated assembly, and testing facilities. An independent R&D lab enhances innovation.

4. Refund and Replacement Assurance:
LINK-PP offers robust guarantees, ensuring customer satisfaction and product reliability.
