H6400NL H6400NLT Quad Port 1000BASE-T Discrete Magnetic Transformers

Brand Name : LINK-PP

Model Number : H6400NL

Certification : UL,RoHS,Reach,ISO

Place of Origin : Guangdong,China

MOQ : 400/2000/10K/25K

Price : $0.06-$3.2

Payment Terms : TT,NET30/60/90 Days

Supply Ability : 3KK/Month

Delivery Time : in Stock Ship Today

Packaging Details : T&R

P/N : H6400NL / H6400NLT

Series : 1000BASE-T Ethernet Transformers

Mounting : BGA Bump Grid Array

PoE : PoE+ (4pr)

Number of Ports : Quad Port Transformers

Isolation Voltage : 1500VAC

IEEE Standard : IEEE 802.3 Compliant

Free Samples : Available

Operating Temperature : 0 to 70°C

Storage Temperature : -20 to +125°C

RoHS Compliance : YES-RoHS-6

Flammability Rating : UL 94V-0

Contact Now

H6400NL/H6400NLT Quad Port 1000BASE-T Ethernet Transformer

Product Overview:

The H6400NL and H6400NLT are high-performance Quad Port 1000BASE-T Ethernet Transformers designed for advanced networking applications requiring superior signal integrity and reliable power delivery. These LAN Transformers feature an open frame construction in a BGA (Bump Grid Array) package, optimized for 1000BASE-T data transmission. Engineered to comply with IEEE 802.3 standards for Gigabit Ethernet applications fully, the H6400NL/H6400NLT series delivers exceptional electromagnetic performance with carefully controlled insertion loss, return loss, and crosstalk parameters across a wide frequency range. These transformers provide excellent common-mode rejection and maintain signal quality even in electrically noisy environments, making them ideal for data centers, networking equipment, and industrial Ethernet applications.

Detailed Specifications:

PART NUMBER H6400NL/H6400NLT
APPLICATION-LAN ETHERNET TRANSFORMER
NUMBER OF PORTS QUAD
PoE PoE+ (4pr)
DATA RATE 1000BASE-T
PACKAGE BGA BUMP GRID ARRAY
PACKAGE HEIGHT 11.18 mm
LENGTH 28.45 mm
PACKAGE WIDTH 17.27 mm
PoE RATING 4PAIR PoE 70W MAX
TURN RATIO 1:01
OPERATING TEMPERATURE 0 TO 70℃

Key Features and Benefits:

  • Quad Port Configuration: Supports four independent 1000BASE-T Ethernet channels in a single compact package.
  • Power over Ethernet (PoE) Support: 4PAIR PoE 70W max rating with 600mA @ 57V continuous current capability.
  • Superior Isolation: 1500 VRMS minimum between input and output for enhanced safety and signal integrity.
  • BGA Bump Grid Array Package: Space-efficient design with dimensions of 28.45mm x 17.27mm x 11.18mm.
  • RoHS-6 Compliant: Environmentally friendly design meeting latest regulatory requirements.
  • Open Frame Construction: Optimized for thermal performance and reliability.
  • Commercial Temperature Range: Operates from 0°C to 70°C for versatile deployment options.
  • High OCL (Open Circuit Inductance): 350μH minimum (media side) and 120μH minimum (line side) for superior signal quality.
  • Low DC Resistance: 65 Ohms maximum (1/2 winding) with ±0.065 Ohms maximum imbalance for efficient power handling.
  • Optimized Return Loss: -16dB minimum (1-40 MHz) and -10+20*LOG(f/80 MHz) dB minimum (40-100 MHz).

H6400NL/H6400NLT Datasheet

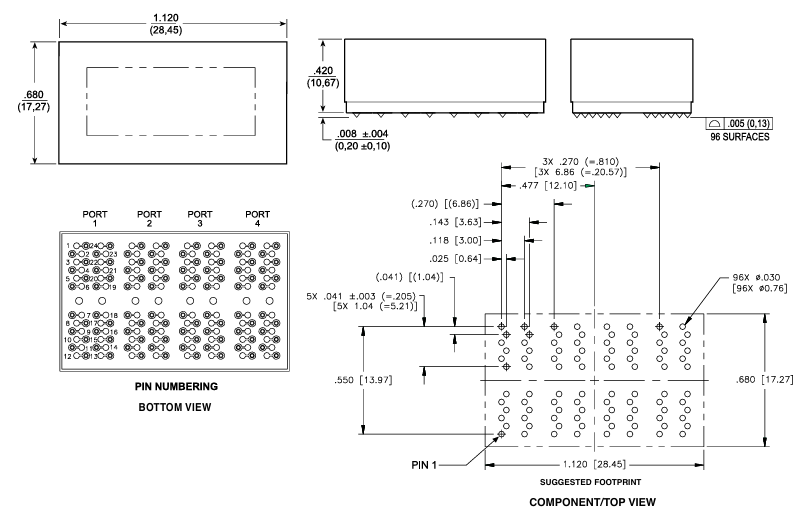

Mechanical:

H6400NL H6400NLT Quad Port 1000BASE-T Discrete Magnetic Transformers

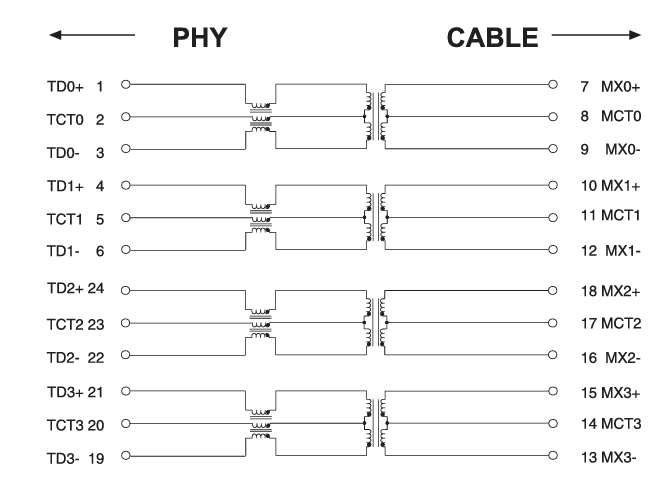

Schematic:

H6400NL H6400NLT Quad Port 1000BASE-T Discrete Magnetic Transformers
