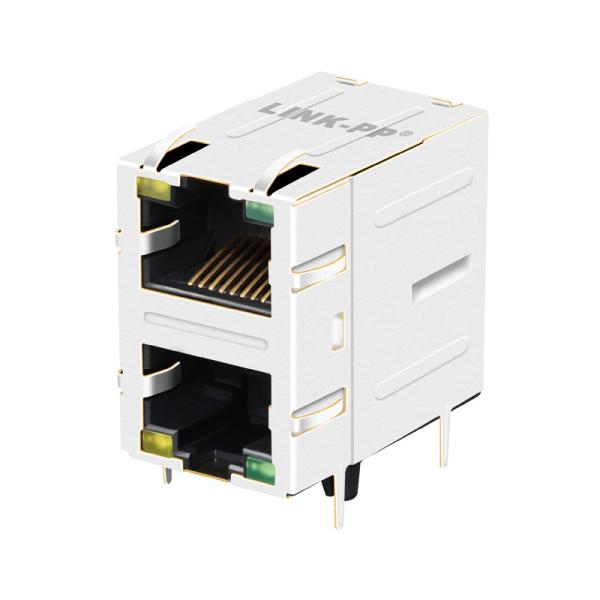

HR916130HE 1000 Base-T 2x1 Port Stacked RJ45 Connector UL LPJG17610AANL

Brand Name : LINK-PP

Model Number : HR916130HE

Certification : UL,ROHS,Reach,ISO

Place of Origin : China

MOQ : 50/500/1000/25K

Price : $0.05-$1.28

Payment Terms : TT,NET30/60/90 Days

Supply Ability : 6000K/month

Delivery Time : Stock

Packaging Details : Tray, Tape & Reel

Spec : HR916130HE

Port : 2x1 Female Rj45

Magnetics : 1000 Base-T

LED : Yellow/Green Leds

Mounting : Right Angle

Cross Ref : LPJG16402-8DNL

Contact Now

HR916130HE 1000 Base-T 2x1 Port Stacked RJ45 Connector UL LPJG17610AANL

Category
Category RJ45 connector -PCB Socket 8P8C
Filter 1000 Base-T
Entry Angle 90° Angle
LED No
Color - Resin Black
Electrical
Current - Maximum per Contact 1.50A
Voltage - Maximum 125V
Contact Resistance 30 mΩ Max
Insulation Resistance 500 MΩ Min
Withstanding Voltage 1000V AC r.m.s
Temperature Range operating -40ºC~+85ºC
Material and Plating
Material-Metal Phosphor Bronze
Material - Plating Mating Gold
Material - Plating Termination Gold
Material - Resin PBT UL94V-0

HR916130HE 1000 Base-T 2x1 Port Stacked RJ45 Connector UL LPJG17610AANL

HR916130HE 1000 Base-T 2x1 Port Stacked RJ45 Connector UL LPJG17610AANL

Why Choose Us

World’s Leader Supplier Of Integrated RJ45 Connector And Discrete Magnetic Transformers

HR916130HE 1000 Base-T 2x1 Port Stacked RJ45 Connector UL LPJG17610AANL

HR916130HE 1000 Base-T 2x1 Port Stacked RJ45 Connector UL LPJG17610AANL

HR916130HE 1000 Base-T 2x1 Port Stacked RJ45 Connector UL LPJG17610AANLHR916130HE 1000 Base-T 2x1 Port Stacked RJ45 Connector UL LPJG17610AANL

FAQ
Q1: Can provide a sample test?
A: Yes,we are pleased to supply samples to test and check quality. free samples is also acceptable.

Q2:How about the MOQ?
A: NO MOQ , 1pcs OK . Small order welocome.

Q3: What’s the lead time?
A: Sample :1-3 days.Mass batch: 5-15 days .depend on the specific delivery time depends on the items and the quantity of your order. Please contact us for details.

Q4:Can make customized products ?
A:Yes, we can develop new mold at you need if you can provide us with the samples or drawings and specification.

Q5:What kind of payment do accept ?
A:ONLINE ( TRADE INSURANCE),,VISA,T/T,Western union,MoneyGram.
