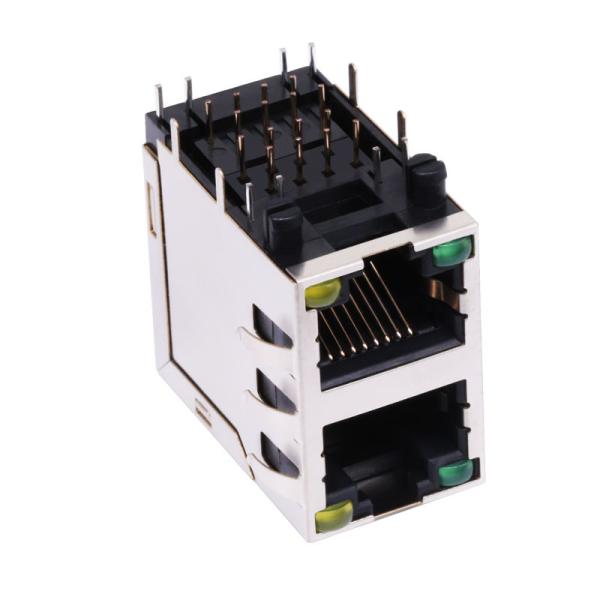

LPJ17410AHNL 10/100Base-T Ethernet 2X1 Ports Stacked RJ45

Name: LPJ17410AHNL 10100BaseT Ethernet 2X1 Ports Stacked RJ45
Brand: LINK-PP
Price: 0.11 USD

LPJ17410AHNL 10/100Base-T Ethernet 2X1 Ports Stacked RJ45 Manufactures

Brand Name : LINK-PP

Model Number : 71F-1208GYD5NL

Certification : UL,RoHS,Reach,ISO

Place of Origin : China

MOQ : 50/500/1000/60K

Price : $0.11-$24

Payment Terms : TT,NET30/60/90 Days

Supply Ability : 180K/Month

Delivery Time : Stock

Packaging Details : Tray

Spec : 71F-1208GYD5NL

Family : 2x1 Stacked RJ45

Application : HUB, PC card, Switch, Router etc

Mounting : Side Entry (Right Angle)

Category : Stacked RJ45

File : PDF/3D/Step/IGS/Price/Cross

Contact Now

LPJ17410AHNL 10/100Base-T Ethernet Rj45 2X1 ports Stacked With Leds 71F-1208GYD5NL

Product parameters:

2X1 Ethernet RJ45 Connector with 10/100 Base-T Integrated Magnetics, Green/Yellow LED,Tab Up/Tab Down,RoHS
LINK-PP Part Number	LPJ17410AHNL
Abracon LLC Part Number	71F-1208GYD5NL
Application-Lan	ETHERNET(NoN PoE)
AutomDX	YES
Bst Circuit	YES
Configuration RX	T,C
Configuration TX	T,C
Contact Mating Area Plating	GOLD 6u"
Cores per Port	4
Diodes	NO DIODES
LED Option	GreenYellow
Latch	TAB UP/TAB DOWN
Number of Ports	2X1
PCB	FR4
PCB Mount Angle	SIDE ENTRY
PCB Retaining Post	T POST
Package Height (Inches)	0.996
Package Height (mm)	25.30
Package Length (Inches)	1.122
Package Length (mm)	28.49
Package Width (Inches)	0.677
Package Width (mm)	17.20
Pin Type	THT SOLDER
RoHS Compliant	YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION
Search	YES
Shield EMI Tabs	WITH
Speed	10/100 Base-T
Temperature	-40°C ~ 85°C
Turns Ratio RX	1CT:1CT
Turns Ratio TX	1CT:1CT

Applications:

Used for networking and communication equipments such as HUB, PC card, Switch, Router, PC Mainboard, SDH, PDH, IP Phone, xDSL modem

Competitive Advantage:

20 years production experience,

1100 staff,

100% test

Flexible delivery time

LPJ17410AHNL 10/100Base-T Ethernet 2X1 Ports Stacked RJ45

FAQ

Q: Are you trading company or manufacturer ?

A: We are professional switches factory.

Q: How long is your delivery time?

A: Generally it is 5-10 days if the rj45 jack are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
