441500012-4 1X4 Port Rj45 Connector 1000 Base - T W / EMI Fingers LPJEF104CNL

Name: 4415000124 1X4 Port Rj45 Connector 1000 Base T W EMI Fingers LPJEF104CNL
Brand: LINK-PP
Price: 0.11 USD

441500012-4 1X4 Port Rj45 Connector 1000 Base - T W / EMI Fingers LPJEF104CNL Manufactures

Brand Name : LINK-PP

Model Number : 441500012-4

Certification : ISO9001,SGS,UL,CE,REACH

Place of Origin : GuangDong, China

MOQ : 50/500/1000/25K

Price : $0.11-$12

Payment Terms : TT,NET30/60/90 Days

Supply Ability : 208K/Month

Delivery Time : Stock

Packaging Details : Tray

Part Number : 441500012-4

Samples : Active&Available

Category : Multi-port RJ45

Interface : 1000Mbps

Port : 1x4 Port

Made In China : LPJEF104CNL

Contact Now

441500012-4 1X4 Port Rj45 Connector 1000Base-T W / EMI Fingers LPJEF104CNL

Shielded 1x4 Port RJ45 Magjack Connector without Integrated Magnetics,without LED,Tab Down,RoHS
LINK-PP Part Number	LPJEF104CNL
Molex Part Number	441500012-4
Application-Lan	ETHERNET(NoN PoE)
AutomDX	YES
Bst Circuit	YES
Configuration RX	T,C
Configuration TX	T,C
Contact Mating Area Plating	GOLD 6u"/15u"/30u"
Cores per Port	-
Diodes	NO DIODES
LED Option	without LEDs
Latch	TAB Down
Number of Ports	1X4
PCB	FR4
PCB Mount Angle	SIDE ENTRY
PCB Retaining Post	T POST

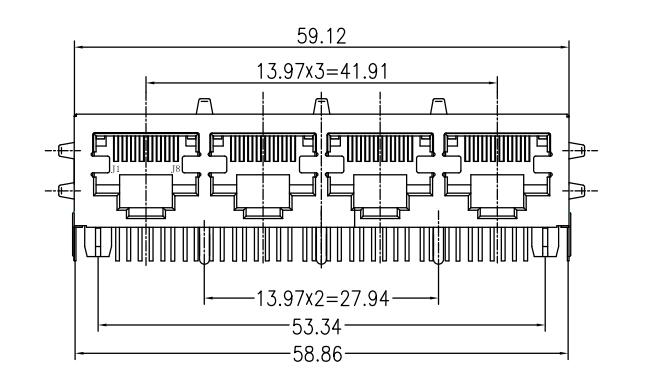

Package Height (Inches)	0.537
Package Height (mm)	13.65
Package Length (Inches)	0.837
Package Length (mm)	21.27
Package Width (Inches)	2.325
Package Width (mm)	59.05
Pin Type	THT SOLDER
RoHS Compliant	YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION
Search	YES
Shield EMI Tabs	WITHOUT
Speed	without magnetics
Temperature	-40 TO 85℃
Turns Ratio RX	1CT:1CT
Turns Ratio TX	1CT:1CT

441500012-4 1X4 Port Rj45 Connector 1000 Base - T W / EMI Fingers LPJEF104CNL
