LMJ2138814S0L1T1C Vertical RJ45 Jack With 10/100 Base-T Magnetic LPJD4012BHNL

Name: LMJ2138814S0L1T1C Vertical RJ45 Jack With 10100 BaseT Magnetic LPJD4012BHNL
Brand: LINK-PP
Price: 0.09 USD

LMJ2138814S0L1T1C Vertical RJ45 Jack With 10/100 Base-T Magnetic LPJD4012BHNL Manufactures

Brand Name : LINK-PP

Model Number : LMJ2138814S0L1T1C

Certification : UL,ROHS,Reach,ISO

Place of Origin : GuangDong, China

MOQ : 50/500/1000/25K

Price : $0.09-$1.85

Payment Terms : TT,NET30/60/90 Days

Supply Ability : 3000000/Month

Delivery Time : Stock

Packaging Details : Optional

Part Number : LMJ2138814S0L1T1C

PIN TO PIN : LPJD4012BHNL

Speed : 10/100 BASE-T

Temperature : -40 TO +85℃

File : PDF/3D/ISG/Stp/Step/Datasheet

Samples : Free

Contact Now

LMJ2138814S0L1T1C Vertical RJ45 Jack With 10/100 Base-T Magnetic LPJD4012BHNL

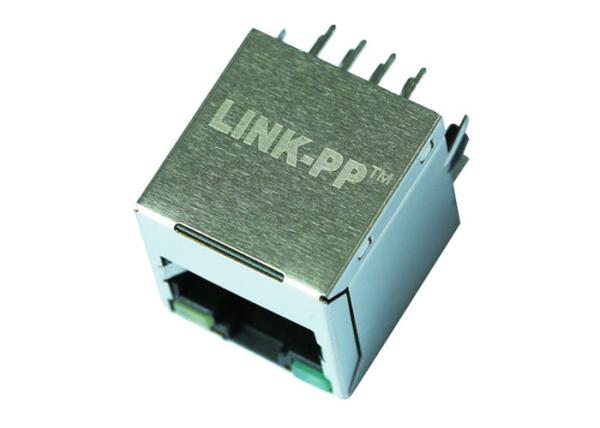

Shielded Vertical RJ45 Magnetic Ethernet Connector with 10/100 Base-T Integrated Magnetics ,Green/Yellow LED,RoHS
LINK-PP Part Number	LPJD4012BHNL
Amphenol Part Number	LMJ2138814S0L1T1C
Application-Lan	ETHERNET(PoE)
AutomDX	YES
Bst Circuit	YES
Configuration RX	T,C
Configuration TX	T,C
Contact Mating Area Plating	GOLD 6u"/15u"/30u"
Cores per Port	4
Diodes	NO DIODES
LED Option	Green/Yellow LEDs
Latch	TAB UP
Number of Ports	1X1
PCB	FR4
PCB Mount Angle	Vertical
PCB Retaining Post	T POST
Package Height (Inches)	0.657
Package Height (mm)	16.70
Package Length (Inches)	0.665
Package Length (mm)	16.90
Package Width (Inches)	0.636
Package Width (mm)	16.15
Pin Type	THT SOLDER
RoHS Compliant	YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION
Search	YES
Shield EMI Tabs	WITHOUT
Speed	10/100 Base-T
Temperature	-40 TO + 85℃
Turns Ratio RX	1CT:1CT
Turns Ratio TX	1CT:1CT
