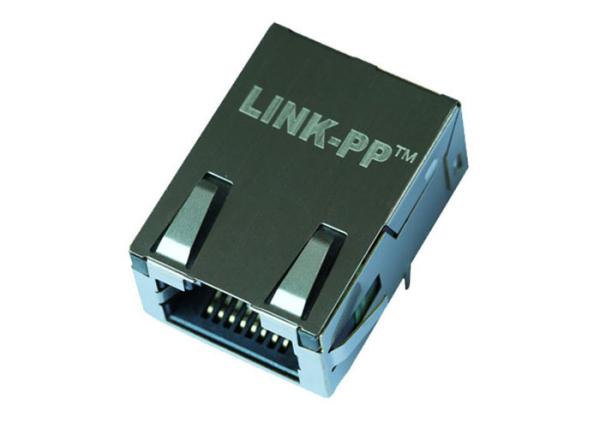

J1L-0103NL Low-Profile RJ45 PCB Jack Tab-up 10/100/1000 Magnetics
| PART NUMBER | J1L-0103NL |
| CONTACT MATING AREA PLATING | GOLD 50 U'' |
| LATCH | UP |
| LED OPTION | GREEN & GREEN |
| NUMBER OF PORTS | 1X1 |
| PACKAGE | THT |
| PACKAGE HEIGHT MM | 11.300 |
| PACKAGE LENGTH MM | 26.060 |
| PACKAGE WIDTH MM | 17.580 |
| PCB MOUNT ANGLE | SIDE ENTRY |
| POE RATING | NON-POE |
| ROHS COMPLIANT | YES-RoHS-6 |
| SPEED | 1000BASE-T |
| TEMPERATURE | 0 TO 70 |
| TURNS RATIO | 1:1 |
Descriptions
Mag45 - RJ45 with Integrated Magnetics
Designing Model: 【J1L-0103NL】
♦ J1L-0103NL Low Profile TE Magjack
♦ Low Profile Rj45 plug J1L-0103NL
♦1000Base-T Low Profile Rj45 With Magnetics
♦ Low Profile Rj45 PCB
♦ Low Profile Rj45 10/100/1000 With Magnetics
♦ low profile Rj45 connector
♦ Designed for network interface card application.
♦ Designed to meet IEEE802.3u requirement.
♦ Available in all turn ratios used by LAN ICmanufactures.
♦ Primary center taps available for additional EMIreduction.
♦ Simplest magnetic component to place and route on PCB.
♦ Conserves minimizing PCB space.
♦ Mass Production Model:【LPJXXXXNL】
MAG.REVERSE LATCH ,
LED optional ; EMI-finger Optional.
Description
1840718-8 Low Profile TE Magjack Rj45 PCB Gigabit Tab-up 10/100/1000 Magnetics
1. Product Type Features:
1) Product Type = Connector
2) Jack Type = RJ45
3) Profile = Standard
4) PCB Mounting Orientation = Side Entry (Right Angle)/Top Entry(Vertical)
2. Mechanical Attachment:
1) Jack Configuration = 1 x 1
3. Electrical Characteristics:
1) Shielded = Yes
4. Termination Related Features:
1) EMI Finger - Bottom = Without
2) Termination Method = Solder
5. Body Related Features:
1) Port Configuration = Single/Multi
2) EMI Fingers -Top and Sides = With/ Without
3) Latch Orientation = Standard - Latch Down
4) PCB Tail Length
6. Contact Related Features:
1) Preloaded = Yes
2) Contact Termination Type = Through Hole/Surface Mount
7. Housing Related Features:
1) Connector Style = Jack
8. Industry Standards:
1) RoHS/ELV Compliance = RoHS compliant, ELV compliant
2) Lead Free Solder Processes = Wave solder capable to 240°C,
Wave solder capable to 260°C, Wave solder capable to 265°C
Reflow-Soldering Optional;
3) RoHS/ELV Compliance History = Always was RoHS compliant
9. Identification Marking:
1) Left LED Color (Position #1) = Green - 250 ohm resistor
2) Right LED Color (Position #2) = Green - 250 ohm resistor
10. Conditions for Usage:
1) Applies To = Printed Circuit Board
2) Environmental Conditions = Office / Premises
3) Operating Temperature (°C ) = 0 - 70/-40 - +85
11.Hipot:
1500Vrms MIN Or More
Ethernet Applications
Designed to support applications, such as ADSL modems, LAN-on-Motherboard. Networking and communication equipments such as HUB, PC card, Switch, Router, PC Mainboard, SDH, PDH, IP Phone, xDSL modem,Call Center solutions , Complex set top boxes , VOIP gateways setup,Border Gateway Protocol,fast ethernet switch ...
Advantage
1840718-8 Low Profile TE Magjack
18 years production experience,
2600 staff,
100% test
Flexible delivery time
Famous Customer
Design for Ti , Intel , Samsung , Fluke , Jabil , Flextronics ,Cypress, Freescale,EKF.......
EMS Components Sourcing
Built-in Flexible PCB Assembly; Rigid-Flexible PCB Assembly; Microelectronic, Flip Chip; Microelectronic, Chip On Board; Optoelectronic Assembly; RF / Wireless Assembly; Through Hole Assembly; Surface Mount Assembly; System Assembly; Printed Circuit Board Assembly
