L24H005-3 Dual Port 1000 Base - T Lan Filter Magnetic Transformer PoE 30W / 60W

Brand Name : LINK-PP

Model Number : LPxxxxxx

Certification : UL,RoHS,Reach,ISO

Place of Origin : Guangdong,China

MOQ : 400/2000/10K/25K

Price : $0.06-$3.2

Payment Terms : TT,NET30/60/90 Days

Supply Ability : 3KK/Month

Delivery Time : Stock

Packaging Details : T&R

Original : L24H005-3

Equivalent : LPxxxxxx

Speed : 1000 Base –T

Transformer Type : Isolation and Data Interface

Operating T-40~+105℃emperature : 0~+70℃

File : PDF/3D/ISG/Stp/Step/Datasheet/Touchstone Format/S-parameters

Contact Now

L24H005-3 Dual Port 1000 Base –T Lan Filter Magnetic Transformer PoE_30/60W

Item Part Number L24H005-3
LINK-PP Part Number LPxxxxxx
Manufacturer LINK-PP
Speed 1000 BASE-T
Number of Ports Dual Port
PIN number 48 PIN
Cores per Port 16
POE PoE_30/60W
Type SMD
Size 27.8 x 15.2 x 7.2
Pin Pitch 1.02
Circuits 2C+T
Operating Temperature 0~+70℃
CMC Cable

You may be interesting in below considerate supports:
Datasheet Request by email to contact us
Samples Free For Free samples delivery, pls advise below infomation For Shipping
Company Name
Delivery Address
Telephone Number
Contact Person
UPS/DHL/Fedex/TNT A.C (If available)
Trial Production U/P(USD) $0.06-$3.2 We can ship out parts directly to your warehouse/door to door
L/T(Weeks) Stock
Shipping Term DAP/CIF/FCA/FOB
Mass Production U/P(USD) Stock
L/T(Weeks) Stock
Shipping Term DAP/CIF/FCA/FOB
Lifecycel More than 20 years You can use our parts for long term consideration
Reject Ratio Zero Defective (100% Tested)
Special Services Accept customized service Accept revised designing
Now you can contact us instantly

L24H005-3​ ​​FEATURES​:

Designed for Ethernet 1000 Base-T,full Dual ports applications.


Supports 8 pairs of category 5 UTP cable.


Cable interface for isolation and low common mode emissions.


Design to meet IEEE 802.3bt type3 with 720mA balanced current.


Compliance with RoHS&Halogen Free requirements.


Operating and Storage Temperature
Operating Temperature: 0°C to +70°C
Storage Temperature: -25°C to +105°C


Packing Information
350 pcs finished goods per reel
2 reels( 700 pcs finished goods) per inner box
2 Inner boxes( 1400 pcs finished goods) per master carton

L24H005-3 Dual Port 1000 Base - T Lan Filter Magnetic Transformer PoE 30W / 60W

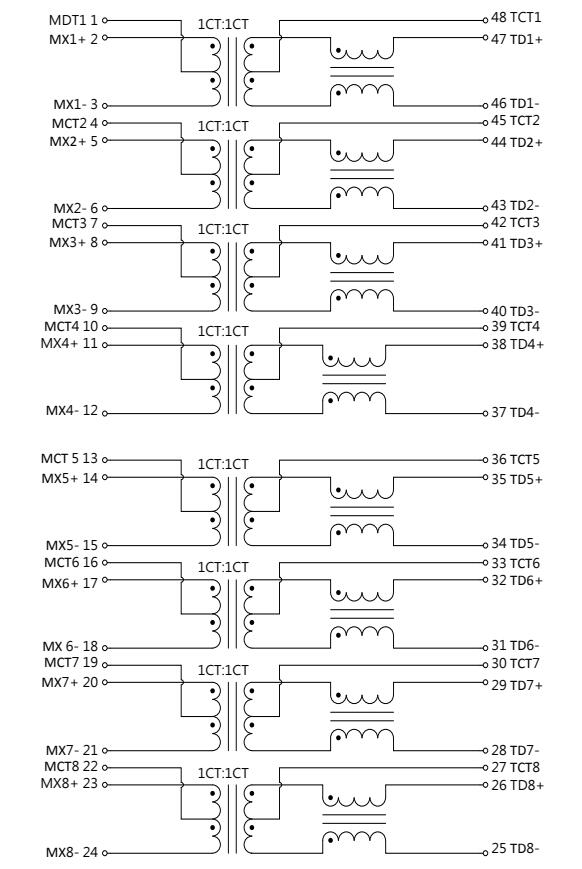

L24H005-3 Dual Port 1000 Base –T Magnetic Transformer ELECTRICAL CHARACTERISTICS Schematic:
