UDE L25T001-M Single Port 1000 Base - T Lan Filter Ethernet Magnetic Transformer Medical Products

  • 1
  • 2

Brand Name : LINK-PP

Model Number : LPxxxxxx

Certification : UL,RoHS,Reach,ISO

Place of Origin : Guangdong,China

MOQ : 400/2000/10K/25K

Price : $0.06-$3.2

Payment Terms : TT,NET30/60/90 Days

Supply Ability : 3KK/Month

Delivery Time : Stock

Packaging Details : T&R

Original : L25T001-M

Equivalent : LPxxxxxx

Speed : 1000 Base –T

Transformer Type : Isolation and Data Interface

Operating T-40~+105℃emperature : -40~+85℃

File : PDF/3D/ISG/Stp/Step/Datasheet/Touchstone Format/S-parameters

Contact Now

UDE L25T001-M Single Port 1000 Base –T Lan Filter Ethernet Magnetic Transformer Medical Products

UDE Part Number L25T001-M
LINK-PP Part Number LPxxxxxx
Manufacturer LINK-PP
Speed 1000 BASE-T
Number of Ports Single Port
PIN number 40 PIN
Cores per Port 8
POE NON PoE
Type SMD
Size 28.57 x 15.49 x 12.7
Pin Pitch 1.27
Circuits 2C+T
Operating Temperature -40~+85℃
CMC Cable
Surge / Specifically Medical4KVac(250 Vrms)(IEC6060-1,IEC60950-1)

You may be interesting in below considerate supports:
Datasheet Request by email to contact us
Samples Free For Free samples delivery, pls advise below infomation For Shipping
Company Name
Delivery Address
Telephone Number
Contact Person
UPS/DHL/Fedex/TNT A.C (If available)
Trial Production U/P(USD) $0.06-$3.2 We can ship out parts directly to your warehouse/door to door
L/T(Weeks) Stock
Shipping Term DAP/CIF/FCA/FOB
Mass Production U/P(USD) Stock
L/T(Weeks) Stock
Shipping Term DAP/CIF/FCA/FOB
Lifecycel More than 20 years You can use our parts for long term consideration
Reject Ratio Zero Defective (100% Tested)
Special Services Accept customized service Accept revised designing
Now you can contact us instantly

UDE L25T001-M Single Port 1000 Base - T Lan Filter Ethernet Magnetic Transformer Medical Products

UDE L25T001-M​ ​​FEATURES​:

Designed to meet IEC60601-1 and IEC60950-1.


Reinforced insulation at a working voltage of 250V rms.


Compliant with RoHS&Halogen Free requirements.


Operating and Storage Temperature
Operating Temperature: -40°C to +85°C
Storage Temperature :
-409C to +85°C


Packing Information
180 pcs finished goods per reel
2 reels(360 pcs finished goods) per inner box
2 Inner boxes(720 pcs finished goods) per master carton

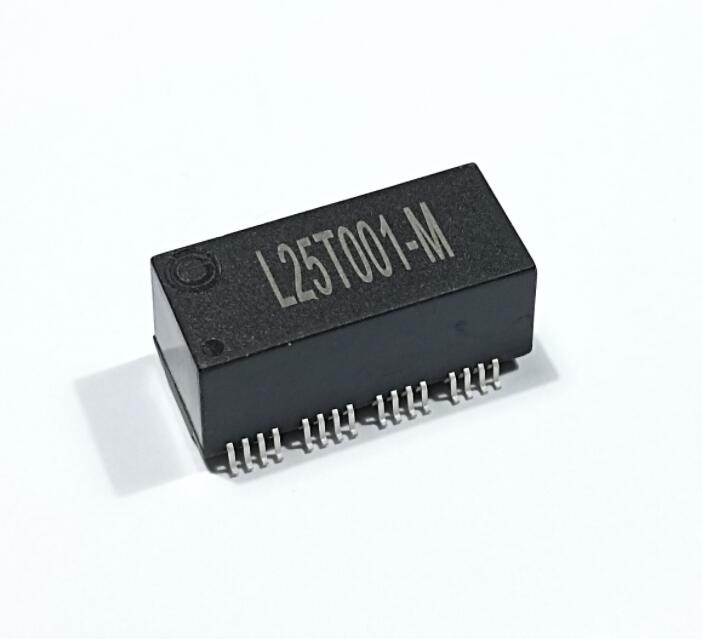

L25T001-M Single Port 1000 Base –T Lan Filter​ Product Dimension:

UDE L25T001-M Single Port 1000 Base - T Lan Filter Ethernet Magnetic Transformer Medical Products

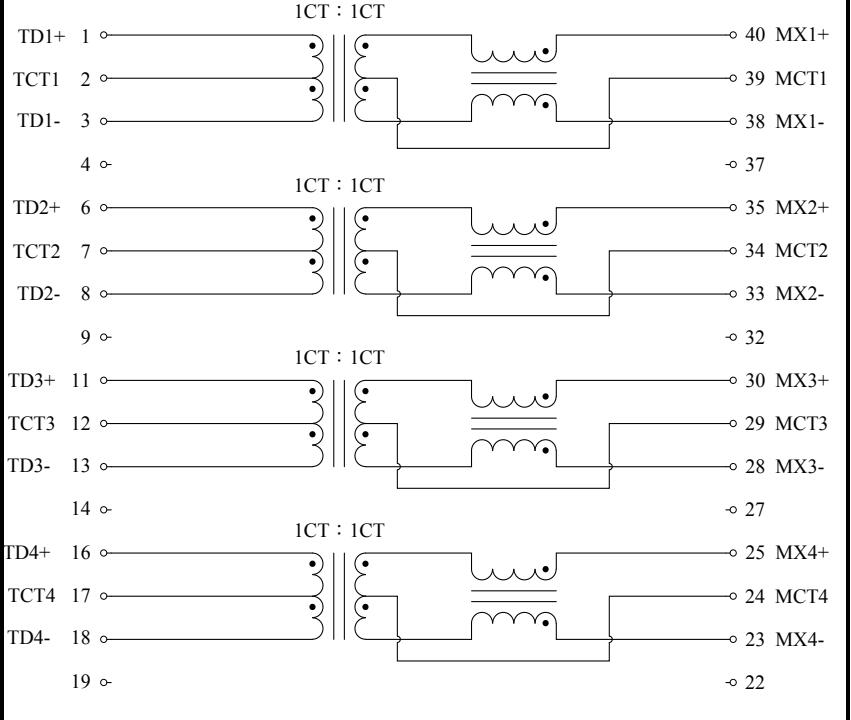

L25T001-M Single Port 1000 Base –T Ethernet Magnetic Transformer ELECTRICAL CHARACTERISTICS Schematic:

UDE L25T001-M Single Port 1000 Base - T Lan Filter Ethernet Magnetic Transformer Medical Products

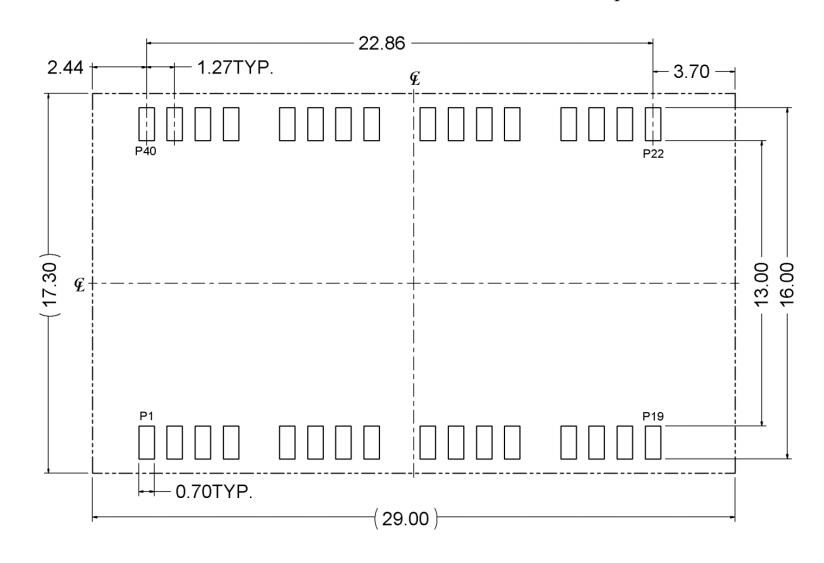

UDE L25T001-M​ ​ ​​Recommened PCB Layout (Unit mm)
UDE L25T001-M Single Port 1000 Base - T Lan Filter Ethernet Magnetic Transformer Medical Products

UDE L25T001-M​ Similar Part Number :

L24N001-0 L24T001-C L24T003-3
L24T005-3 L25N001-0 L25T001-M
L26H001-B L26H002-S L26N003-0
L26T001-3 L26T007-3 L26T009-3
LA9H001-0 LA9H001-2 LA9H002-4
