L24H004-2 Dual Port 1000 Base –T Ethernet Filter Magnetic Transformer Meet IEEE802.3 af standard
| Item Part Number | L24H004-2 |
| LINK-PP Part Number | LPxxxxxx |
| Manufacturer | LINK-PP |
| Speed | 1000 BASE-T |
| Number of Ports | Dual Port |
| PIN number | 48 PIN |
| Cores per Port | 16 |
| POE | PoE_15W |
| Type | SMD |
| Size | 27.8 x 15.2 x 7.2 |
| Pin Pitch | 1.02 |
| Circuits | 2C+T |
| Operating Temperature | 0~+70℃ |
| CMC | PHY |
| You may be interesting in below considerate supports: |
| Datasheet | Request by email to | contact us |
| Samples | Free | For Free samples delivery, pls advise below infomation For Shipping |
| Company Name | |
| Delivery Address | |
| Telephone Number | |
| Contact Person | |
| UPS/DHL/Fedex/TNT A.C | (If available) |
| Trial Production | U/P(USD) | $0.06-$3.2 | We can ship out parts directly to your warehouse/door to door |
| L/T(Weeks) | Stock |
| Shipping Term | DAP/CIF/FCA/FOB |
| Mass Production | U/P(USD) | Stock | |
| L/T(Weeks) | Stock |
| Shipping Term | DAP/CIF/FCA/FOB |
| Lifecycel | More than 20 years | You can use our parts for long term consideration |
| Reject Ratio | Zero Defective (100% Tested) |
| Special Services | Accept customized service | Accept revised designing |
Now you can contact us instantly
|
UDE L24H004-2 FEATURES:
Designed for Ethernet 1000 Base-T,full Dual ports applications.
Supports 8 pairs of category 5 UTP cable.
Cable interface for isolation and low common mode emissions.
Design to meet EEE 802.3af with 350mA balanced current.
Compliance with RoHS&Halogen Free requirements.
Operating and Storage Temperature
Operating Temperature: 0°C to +70°C
Storage Temperature :
-25°C to +105°C
Packing Information
350 pcs finished goods per reel
2 reels(700 pcs finished goods) per inner box
2 Inner boxes( 1400 pcs finished goods) per master carton

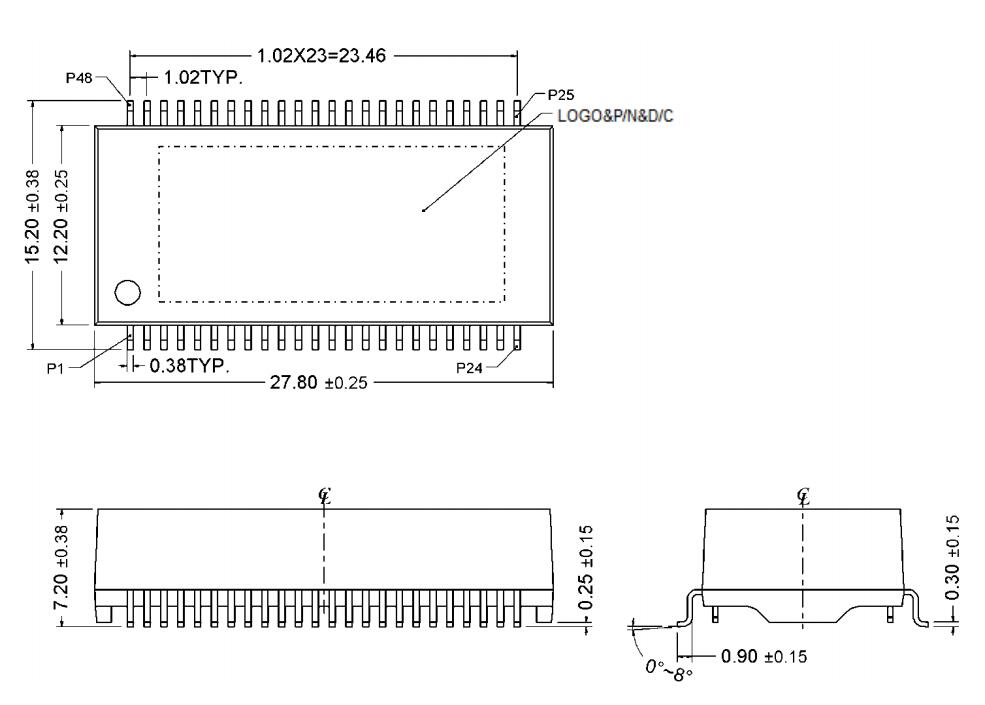

UDE L24H004-2 Dual Port 1000 Base –T Ethernet Filter Product Dimension:

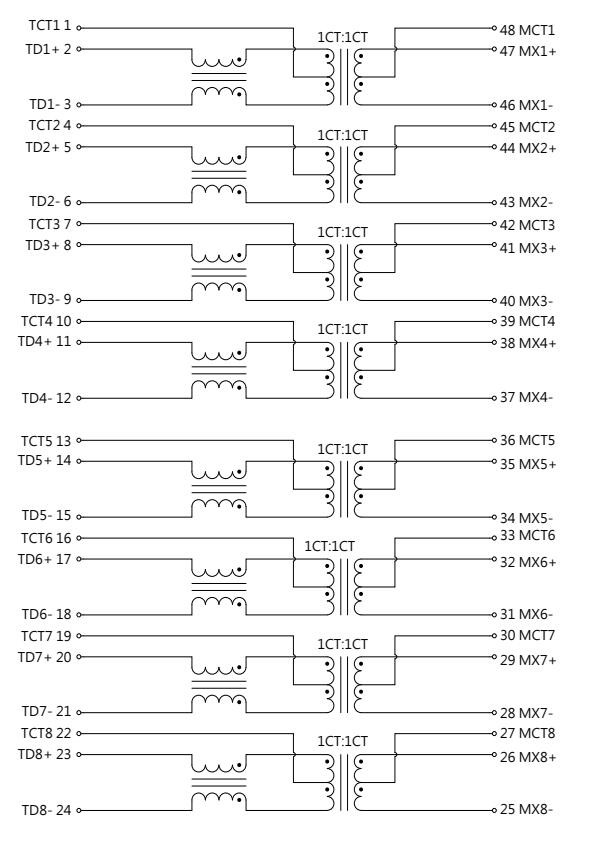

L24H004-2 Dual Port 1000 Base –T Magnetic Transformer ELECTRICAL CHARACTERISTICS Schematic:

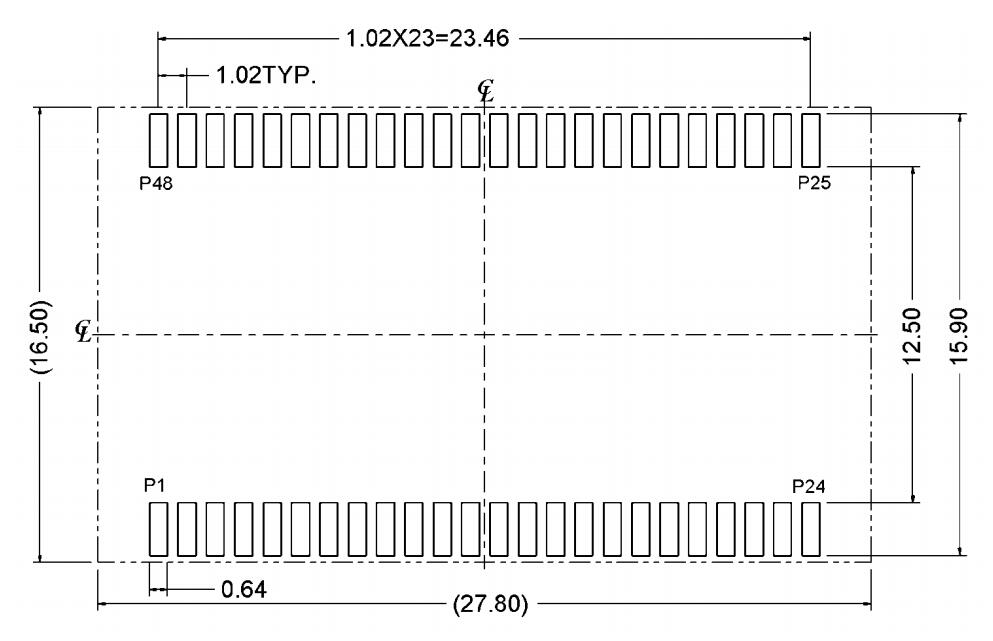

UDE L24H004-2 Recommened PCB Layout (Unit mm)
UDE L24H004-2 Similar Part Number :
| L22T006-B | L22T007-2 | L22T007-4 |
| L22T008-3 | L22T008-4 | L22T009-3 |
| L22T010-2 | L22T012-3 | L22T015-0 |
| L22T017-3 | L22T019-3 | L22T021-0 |
| L22T022-0 | L24H004-2 | L24H005-3 |
