L22T022-0 Single Port 10G Base –T LAN Filter Ethernet Magnetic Transformer

Name: L22T0220 Single Port 10G Base T LAN Filter Ethernet Magnetic Transformer
Brand: LINK-PP
Price: 0.06 USD

Brand Name : LINK-PP

Model Number : L22T022-0

Certification : UL,RoHS,Reach,ISO

Place of Origin : Guangdong,China

MOQ : 400/2000/10K/25K

Price : $0.06-$3.2

Payment Terms : TT,NET30/60/90 Days

Supply Ability : 3KK/Month

Delivery Time : Stock

Packaging Details : T&R

Original : L22T022-0

Type : SMD

Speed : 10G Base-T

Transformer Ports : 1

Operating T-40~+105℃emperature : -40~+85℃

PoE : Non PoE

Contact Now

L22T022-0 10G Base-T LAN Transformer Specifications:

LAN Filter Part Number	L22T022-0
Manufacturer	LINK-PP
Speed Rate	10G
Number of Ports	Single Port
PINs Number	24 PIN
Cores per Port	8
POE	Non-PoE
Type	SMD
Size	18.1 x 16 x 6.2 mm
Pin Pitch	1.27 mm
Circuits	3C+T
Operating Temperature	-40℃ ~ +85℃
CMC	Cable
Electrical Specifications @25℃ (Type: Balance low pass 100Ω impedance)
Turns Ratio	1:1±5%
Inductance	160uHMin @ 100KHz, 0.1V, 8mA DC BIAS
HiPot Test	1500 Vrms
Insertion Loss	1MHZ: -0.8 dB Max 20MHZ: -0.8 dB Max 50MHZ: -1.0 dB Max 200MHZ: -1.2 dB Max 400MHZ: -2.0 dB Max 500MHZ: -3.0 dB Max
Return Loss	1MHz: -20 dB Min load 100Ω 100MHz: -20 dB Min load 100Ω 200MHz: -18 dB Min load 100Ω 300MHz: -15 dB Min load 100Ω 400MHz: -10 dB Min load 100Ω 500MHz: - 8 dB Min load 100Ω
Reflected CM to Diff Conversion (REF)	50MHZ: -30 dB Min 100MHZ: -27 dB Min 200MHZ: -24 dB Min 300MHZ: -22 dB Min 400MHZ: -21 dB Min 500MHZ: -20 dB Min
Reflected Diff to CM Conversion (REF)	1MHZ: -48 dB Min 100MHZ: -33 dB Min 400MHZ: -24 dB Min 500MHZ: -24 dB Min
CM to DM Conversion (REF)	50MHZ: -40 dB Min 100MHZ: -35 dB Min 200MHZ: -30 dB Min 300MHZ: -22 dB Min 400MHZ: -17 dB Min 500MHZ: -17 dB Min
CM to CM Attenuation	1MHZ: -22 dB Min 500MHZ: -20 dB Min 800MHZ: -20 dB Min 1000MHZ: -17 dB Min
Cross Talk	1MHZ: -34 dB Min 350MHZ: -23 dB Min 500MHZ: -23 dB Min

10G Base -T Single Port LAN Filter Key Features:

Designed for Ethernet 10G Base-T, full Single port applications.
Supports 4 pairs of category 6A or greater cable.
Cable interface for isolation and low common mode emissions.
Design to meet EEE 802.3an Specification.
Compliant with RoHS & Halogen Free requirements.
Operating and Storage Temperature
Operating Temperature: -40°C to +859C
Storage Temperature: -40°C to +85°C

Packing Information
400 pcs finished goods per reel
3 reels( 1200 pcs finished goods) per inner box
2 Inner boxes(2400 pcs finished goods) per master carton

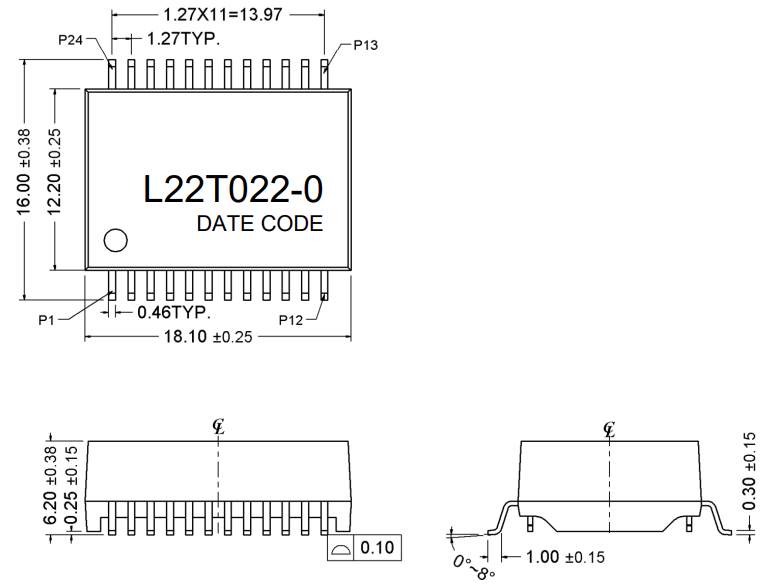

L22T022-0 SMD LAN Transformer Dimension (Unit mm):

L22T022-0 Single Port 10G Base –T LAN Filter Ethernet Magnetic Transformer

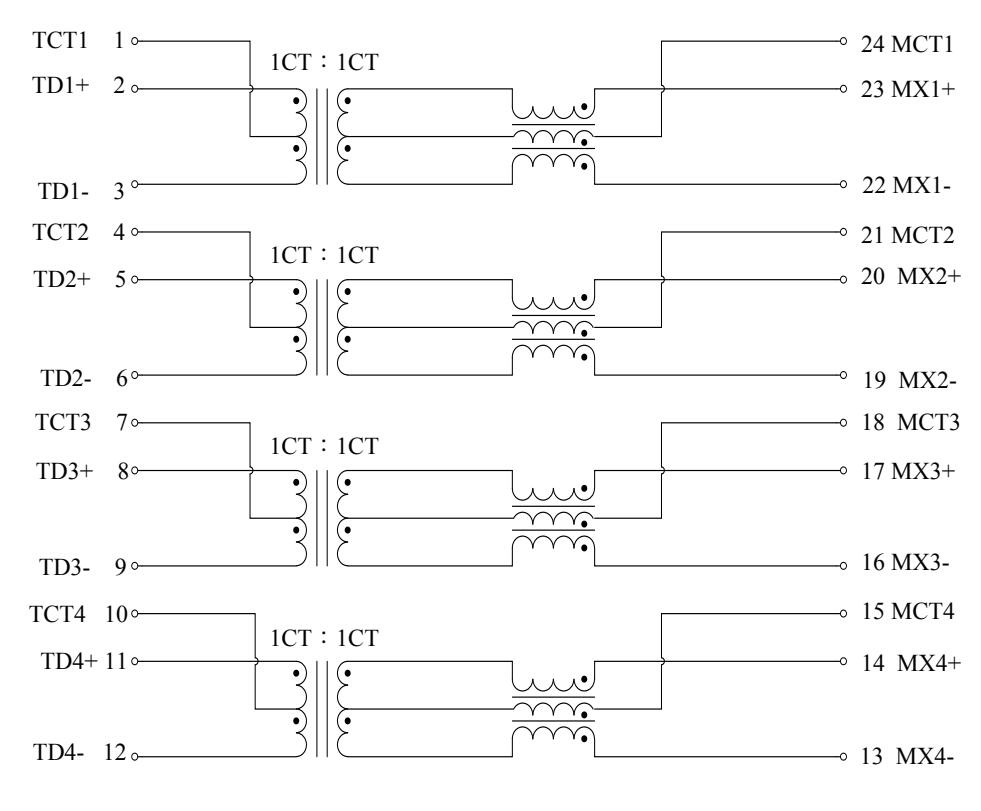

L22T022-0 Single Port LAN Filter Schematic:

L22T022-0 Single Port 10G Base –T LAN Filter Ethernet Magnetic Transformer

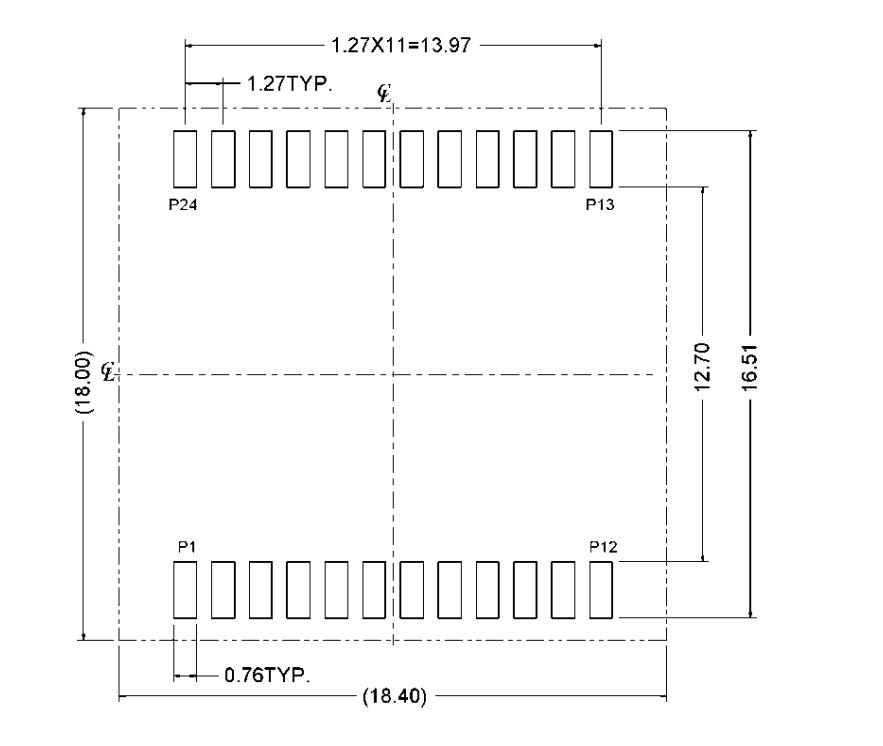

L22T022-0 Recommended PCB Layout (Unit mm):

L22T022-0 Single Port 10G Base –T LAN Filter Ethernet Magnetic Transformer
