JXD2-0Z10NL 100BASE-T TOP ENTRY VERTICAL RJ45 Connector 8P8C With LED

Name: JXD20Z10NL 100BASET TOP ENTRY VERTICAL RJ45 Connector 8P8C With LED
Brand: LINK-PP
Price: 1 USD

JXD2-0Z10NL 100BASE-T TOP ENTRY VERTICAL RJ45 Connector 8P8C With LED Manufactures

Brand Name : LINK-PP

Model Number : LPJxxxxxx

Certification : UL,ROHS,Reach,ISO

Place of Origin : GuangDong, China

MOQ : 50/500/1000

Price : OEM Price

Payment Terms : TT,NET30/60/90 Days

Supply Ability : 3000000/Month

Delivery Time : Stock

Packaging Details : Tray Package: 50 pcs in 1 tray,24tray in 1 carton, which is 32*30*31 , 8.5 KGS (1200pcs) of each carton

Original : JXD2-0Z10NL

Equivalent : LPJxxxxxx

Operating Temperature : -40°C ~ 85°C

Samples : Free Available

File : PDF/3D/ISG/Stp/Step/Datasheet/Touchstone Format/S-parameters

Lifecycle : More than 20Years

Contact Now

JXD2-0Z10NL 100BASE-T TOP ENTRY VERTICAL RJ45 Connector 8P8C With Led

LINK-PP Part Number	LPJxxxxxx
Part Number	JXD2-0Z10NL
Part Status	Active
Connector Type	Jack
Number of Positions/Contacts	8p8c (RJ45, Ethernet)
SPEED	100 BASE-T
POE RATING	NON-POE
LED Option	GREEN/YELLOW Led
Number of Ports	1X1 Port
PCB Mount Angle	SIDE ENTRY
Shield EMI Tabs	WITH
Operating Temperature	-40°C ~85°C
CONTACT MATING AREA PLATING	Gold 30 U"
PACKAGE HEIGHT MM	16.95
PACKAGE LENGTH MM	16.90
PACKAGE WIDTH MM	16.10

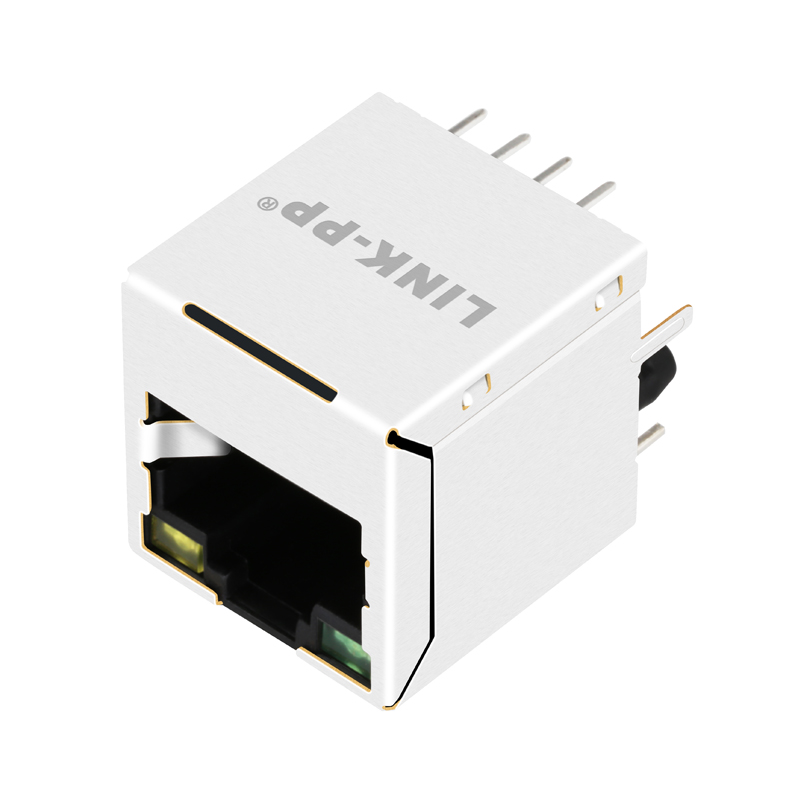

JXD2-0Z10NL 100BASE-T TOP ENTRY VERTICAL RJ45 Connector 8P8C With LED

JXD2-0Z10NL VERTICAL RJ45 Jack Description:

Industrial Fast Ethernet and Gigabit (10/100/1000Base-T) single port RJ45 vertical/ top entry integrated magnetics connector,
designed to support applications, such as embedded automation and drive control, wall and panel mount HMI and outdoor networks.

.RoHS peak wave solder temperature rating 260°C
.Top entry, small footprint to minimize board space
.Meets IEEE 802.3 specification
.350μH minimum OCL with 8mA bias current
.High performance for maximum EMI suppression

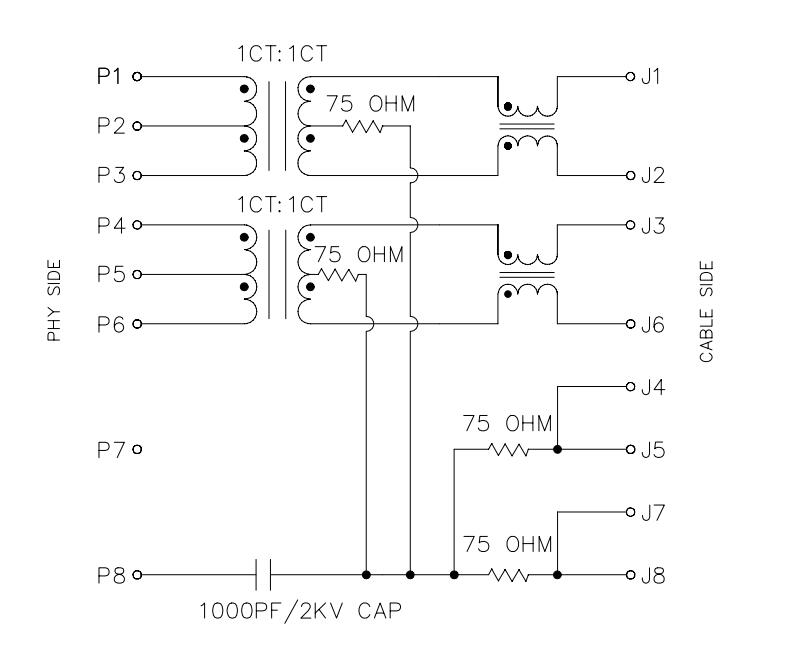

JXD2-0Z10NL VERTICAL RJ45 Connector Electrical Schematic:

JXD2-0Z10NL 100BASE-T TOP ENTRY VERTICAL RJ45 Connector 8P8C With LED

JXD2-0Z10NL VERTICAL RJ45 Jack Mechanical Specification:

JXD2-0Z10NL RJ45 MagJack Similar Part Number :

JXD2-0Z10NL	JXD2-0Z11NL	JXD2 0Z14NL
JXD2-0Z15NL	JXD2-0Z25NL	JXD2-9001NL
