HX5149NLT 1000 BASE-T 24PIN SMD Telecom Transformer Surface Mount

  • 1
  • 2

Brand Name : LINK-PP

Model Number : LPXXXXXX

Certification : UL,RoHS,Reach,ISO

Place of Origin : Guangdong,China

MOQ : 400/2000/10K/25K

Price : $0.06-$3.2

Payment Terms : TT,NET30/60/90 Days

Supply Ability : 3KK/Month

Delivery Time : Stock

Packaging Details : T&R

Original : HX5149NLT

Equivalent : LPxxxxxx

Speed : 1000 Base-T

Transformer Type : Isolation and Data Interface

Temperature : -40C TO +85C

File : PDF/3D/ISG/Stp/Step/Datasheet/Touchstone Format/S-parameters

Contact Now

HX5149NLT 1000 BASE-T 24PIN SMD Telecom Transformer Surface Mount

LINK-PP Part Number LPxxxxxx
Other Part Number HX5149NLT
Speed 1000 BASE-T
Number of Ports Single
PIN number 24 PIN
Cores per Port 8
POE RATING NON POE
Package SMD
Temperature -40C TO +85C
Configuration RX T,C,S
Configuration TX T,C,S
APPLICATION-LAN ETHERNET TRANSFORMER
Turns Ratio RX 1CT:1CT
Turns Ratio TX 1CT:1CT

You may be interesting in below considerate supports:
Datasheet Request by email to contact us
Samples Free For Free samples delivery, pls advise below infomation For Shipping
Company Name
Delivery Address
Telephone Number
Contact Person
UPS/DHL/Fedex/TNT A.C (If available)
Trial Production U/P(USD) $0.06-$3.2 We can ship out parts directly to your warehouse/door to door
L/T(Weeks) Stock
Shipping Term DAP/CIF/FCA/FOB
Mass Production U/P(USD) Stock
L/T(Weeks) Stock
Shipping Term DAP/CIF/FCA/FOB
Lifecycel More than 20 years You can use our parts for long term consideration
Reject Ratio Zero Defective (100% Tested)
Special Services Accept customized service Accept revised designing
Now you can contact us instantly

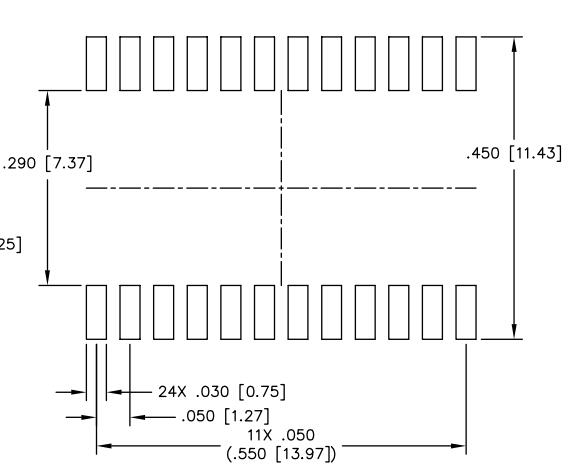

HX5149NLT 1000BASE-T SMT Telecom Transformer 24PIN Surface Mount Mechanical Specification:

HX5149NLT 1000 BASE-T 24PIN SMD Telecom Transformer Surface Mount


HX5149NLT​ Single Port 1000BASE-T SMD Telecom Transformer 24PIN Surface Mount Electrical Schematic:

HX5149NLT 1000 BASE-T 24PIN SMD Telecom Transformer Surface Mount

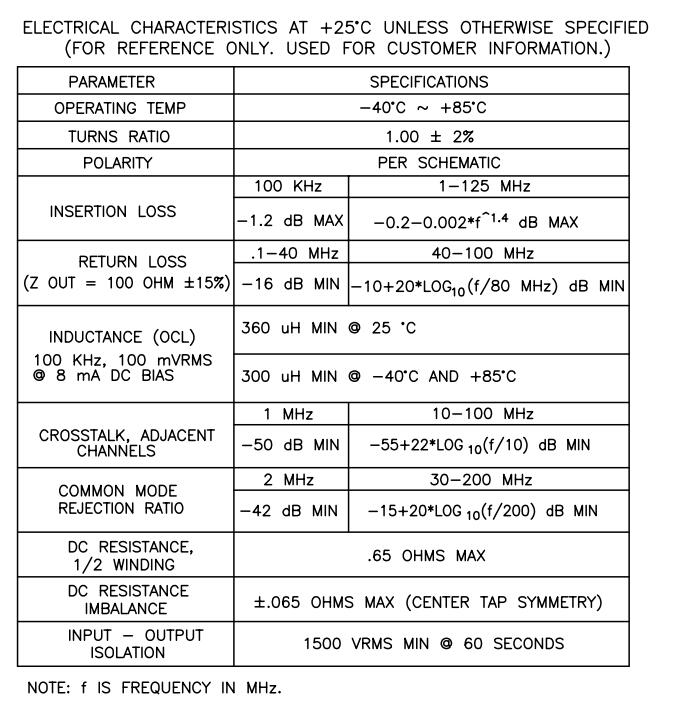

HX5149NLT Electrical Specifications:

HX5149NLT 1000 BASE-T 24PIN SMD Telecom Transformer Surface Mount

HX5149NLT Similar Part Number :

HX5149NL HX5149NLT HX5401NL
HX5164NLT HX5400NL HX5400NLT



HX5149NLT Description:
1.HX5149NLT 1000BASE-T Single Port Lan TRANSFORMER
2.HX5149NLT 24PIN ETHERNET TRANSFORMER
3.HX5149NLT Single Port SMT Transformer Modules

HX5149NLT Delivery Time:
- Material Preparation Time: 3 days (or inventory)
- Production & Assembly Time 9 days
- Testing & Packaging Time: 3 days
- Total Delivery Time: 15 days in 50,000pcs for safe delivery lead time.
- The faster delivery could be negotiable.

HX5149NLT Shipping:
- International express such as UPS, TNT, DHL, etc
- Internatioal air: CA, AA, EA, etc
- By sea
- Standard export sea port: Shenzhen, Hongkong, Ningbo
- Standard export airport: Shenzhen, Hongkong, Hangzhou, Shanghai
