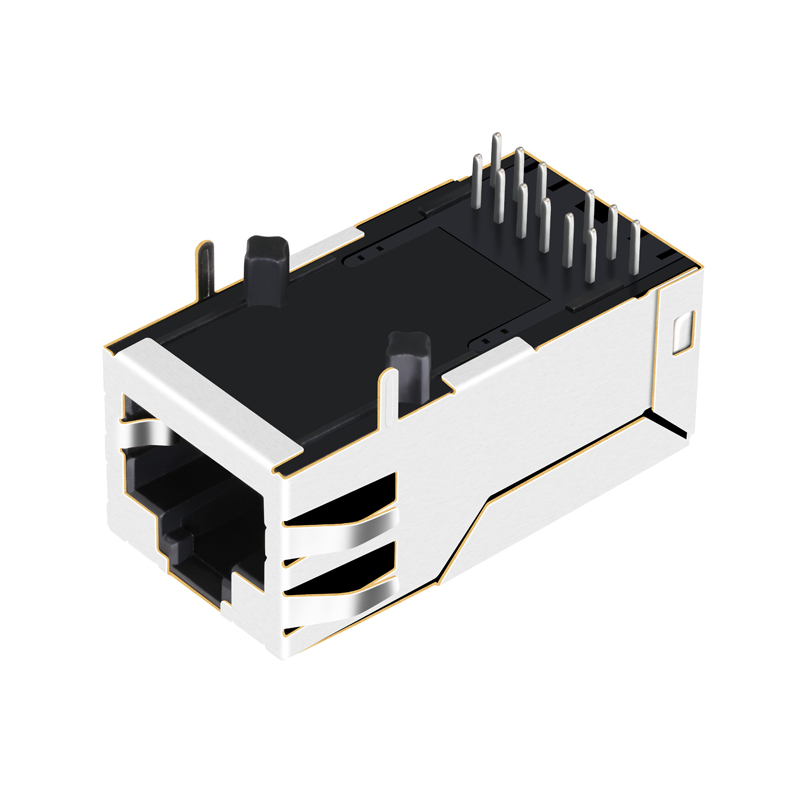

HFJT1-2GH4PRL 1A Single Port 2.5G BASE-T PoE RJ45 Magjack Tab Up Without LED

Brand Name : LINK-PP

Model Number : LPJGxxxxxx

Certification : UL,ROHS,Reach,ISO

Place of Origin : GuangDong, China

MOQ : 50/500/1000

Price : OEM Price

Payment Terms : TT,NET30/60/90 Days

Supply Ability : 3000000/Month

Delivery Time : Stock

Packaging Details : Tray Package: 50 pcs in 1 tray,24tray in 1 carton, which is 32*30*31 , 8.5 KGS (1200pcs) of each carton

Original : HFJT1-2GH4PRL

Equivalent : LPJGxxxxxx

Operating Temperature : 0°C ~ 70°C

Samples : Free Available

File : PDF/3D/ISG/Stp/Step/Datasheet/Touchstone Format/S-parameters

Lifecycle : More than 20Years

Contact Now

HFJT1-2GH4PRL 1A Single Port 2.5G BASE-T PoE RJ45 Magjack Tab UP Without led

Product Features:

. 2.5G and 5G Ethernet RJ45
. IEEE802.3bz/af/at/bt Compliant
. Compatible with Current and Voltage Drive PHY’s
. 100% Compliance Testing
. 1500Vrms Hi-Pot
. 30µ” Gold (min) on Contacts
. Proprietary Robust Contact Design
. UL60950 and UL62368 Recognized

LINK-PP Part Number LPJGxxxxxx
Part Number HFJT1-2GH4PRL
Part Status Active
Connector Type Jack
Number of Positions/Contacts 12p8c (RJ45, Ethernet)
LATCH Tab UP
SPEED 2.5G BASE-T
POE RATING POE+
LED Option NO Led
Number of Ports 1X1 Port
PCB Mount Angle SIDE ENTRY
Shield EMI Tabs WITH
Operating Temperature 0°C ~70°C
PACKAGE HEIGHT MM 13.90
PACKAGE LENGTH MM 33.02
PACKAGE WIDTH MM 16.79


HFJT1-2GH4PRL 1A Single Port 2.5G BASE-T PoE RJ45 Magjack Tab Up Without LED

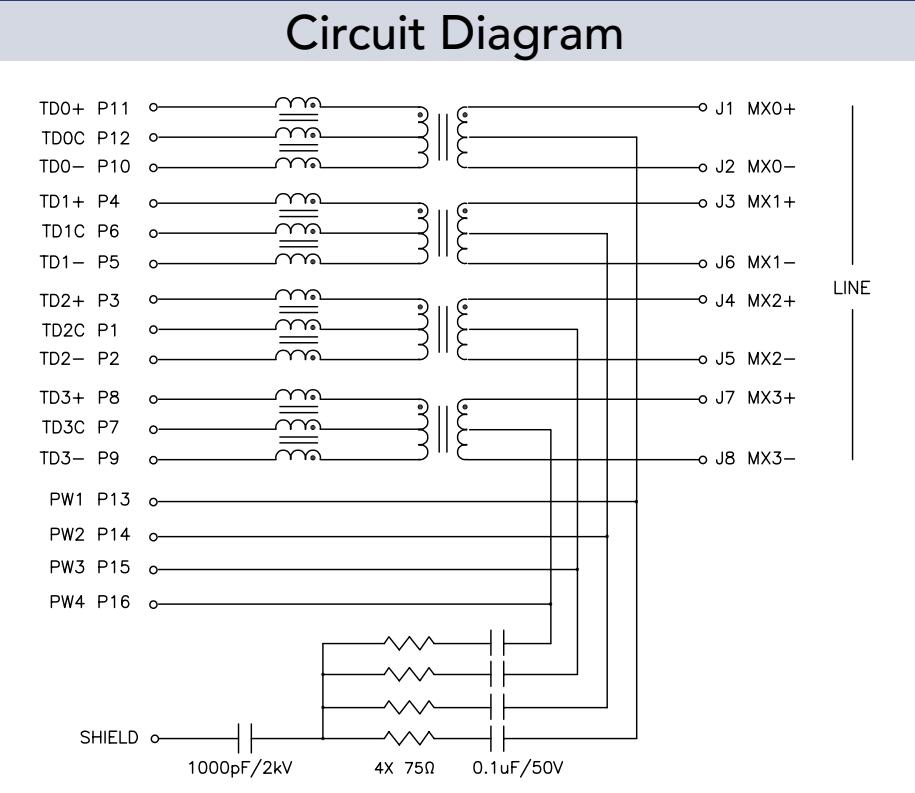

HFJT1-2GH4PRL 1A Single Port 2.5G BASE-T PoE RJ45 Magjack Circuit Diagram:

HFJT1-2GH4PRL 1A Single Port 2.5G BASE-T PoE RJ45 Magjack Tab Up Without LED

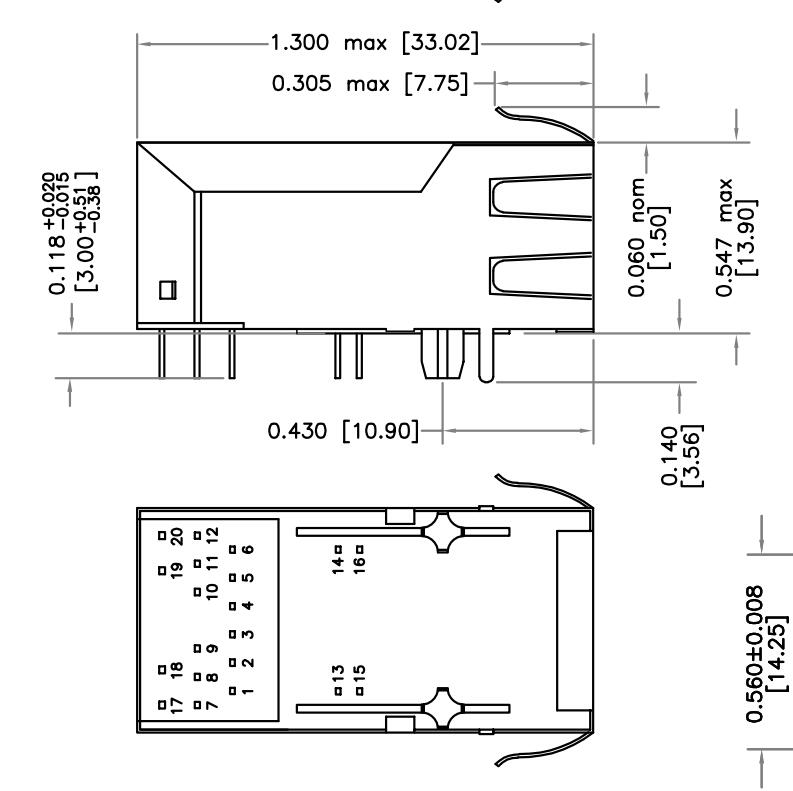

HFJT1-2GH4PRL 1A Single Port 2.5G BASE-T PoE RJ45 Fastjack Mechanical Specification:
HFJT1-2GH4PRL 1A Single Port 2.5G BASE-T PoE RJ45 Magjack Tab Up Without LED

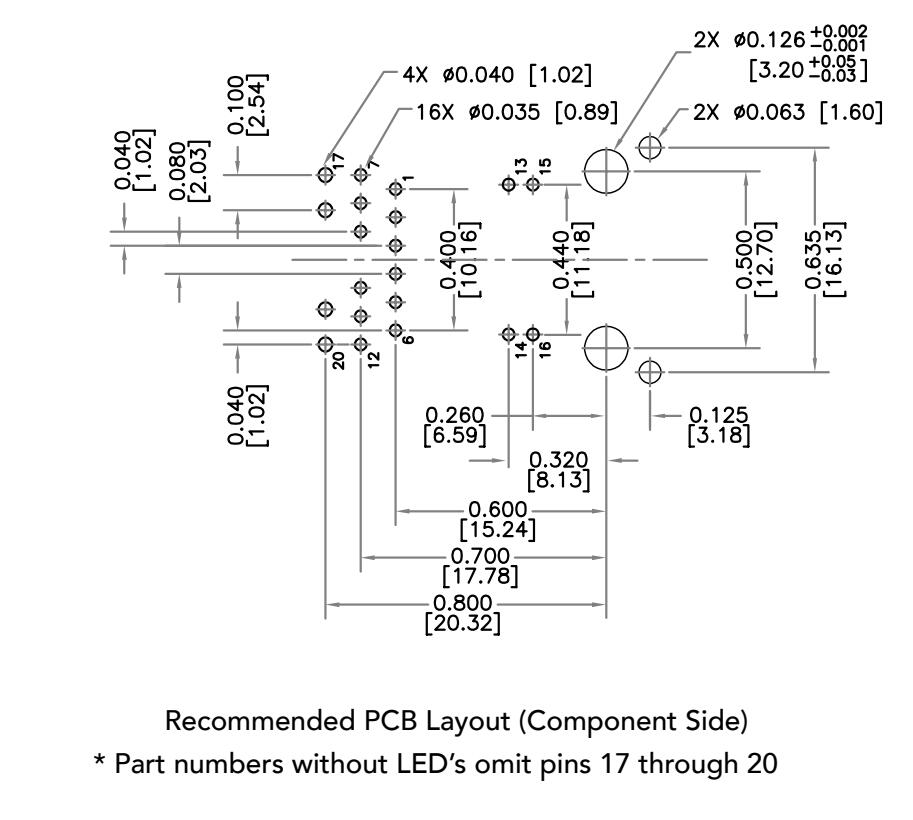

HFJT1-2GH4PRL Recommended PCB Layout (Component Side)
HFJT1-2GH4PRL 1A Single Port 2.5G BASE-T PoE RJ45 Magjack Tab Up Without LED

HFJT1-2GH4PRL​​ RJ45 Jack Female Connector Similar Part Number :

HFJT1-2GHPRL HFJT1-2GHP-L11RL HFJT1-2GHP-L12RL
HFJT1-2GH4PRL HFJT1-2GH4P-L11RL HFJT1-2GH4P-L12RL
HFJT1-5GHPRL HFJT1-5GHP-L11RL HFJT1-5GHP-L12RL
HFJT1-5GH4PRL HFJT1-5GH4P-L11RL HFJT1-5GH4P-L12RL
HFJT1-2GHPERL HFJT1-2GHPE-L11RL HFJT1-2GHPE-L12RL
HFJT1-2GH4PERL HFJT1-2GH4PE-L11RL HFJT1-2GH4PE-L12RL
HFJT1-5GHPERL HFJT1-5GHPE-L11RL HFJT1-5GHPE-L12RL
HFJT1-5GH4PERL HFJT1-5GH4PE-L11RL HFJT1-5GH4PE-L12RL
