J0G-0210NL 1X1 Port 1000BASE-T SIDE ENTRY RJ45 Magjack Tab Up 12PIN G/OG led

Product Categories
LINK-PP INT'L TECHNOLOGY CO., LIMITED
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

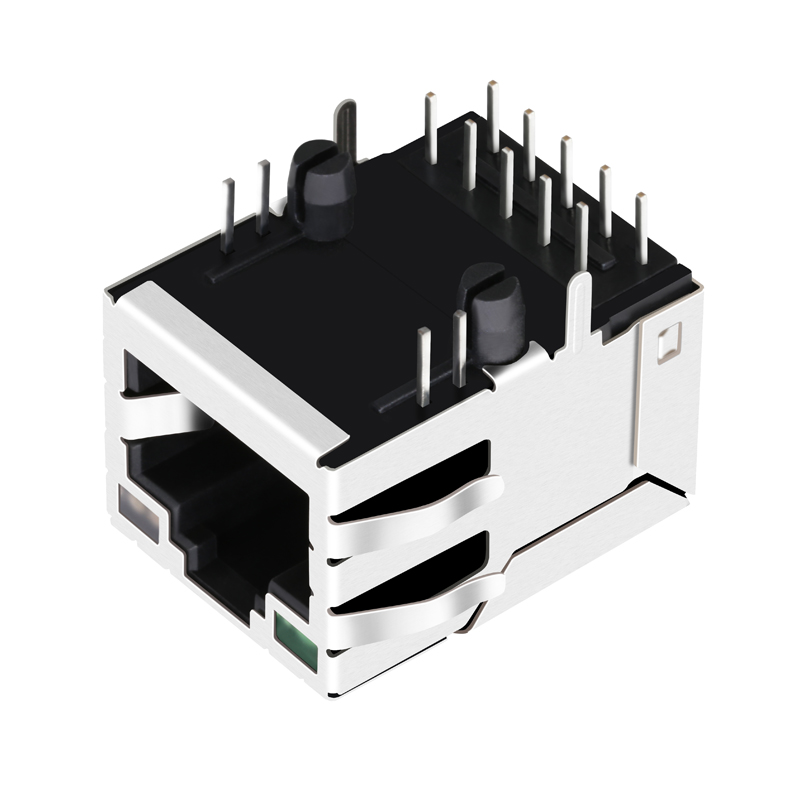

J0G-0210NL 1X1 Port 1000BASE-T SIDE ENTRY RJ45 Magjack Tab Up 12PIN G/OG led

  • 1
  • 2
  • 3

Brand Name : LINK-PP

Model Number : LPJxxxxxx

Certification : UL,ROHS,Reach,ISO

Place of Origin : GuangDong, China

MOQ : 50/500/1000

Price : OEM Price

Payment Terms : TT,NET30/60/90 Days

Supply Ability : 3000000/Month

Delivery Time : Stock

Packaging Details : Tray Package: 50 pcs in 1 tray,24tray in 1 carton, which is 32*30*31 , 8.5 KGS (1200pcs) of each carton

Original : J0G-0210NL

Equivalent : LPJxxxxxx

Ethernet Aplly : 1000 Base-T

Samples : Free Available

File : PDF/3D/ISG/Stp/Step/Datasheet/Touchstone Format/S-parameters

Lifecycle : More than 20Years

Contact Now

J0G-0210NL 1X1 Port 1000BASE-T SIDE ENTRY RJ45 Magjack Tab Up 12PIN G/OG led

The J0G-0210NL supports speed 100/1000 Base-T, It is compliant to IEEE 802.3, UL, Reach, RoHs, ISO19001,ISO14001 standards.

LINK-PP Part Number LPJxxxxxx
Part Number J0G-0210NL
Part Status Active
Speed 100/1000 BASE-T
Connector Type Jack
Number of Positions/Contacts 12p8c (RJ45, Ethernet)
Cores per Port 8
LED Option GREEN/ORANGE & GREEN Led
Latch Tab up
Number of Ports 1X1
PCB Mount Angle SIDE ENTRY
Shield EMI Tabs WITH
Temperature 0 TO 70℃


J0G-0210NL 1X1 Port 1000BASE-T SIDE ENTRY RJ45 Magjack Tab Up 12PIN G/OG led

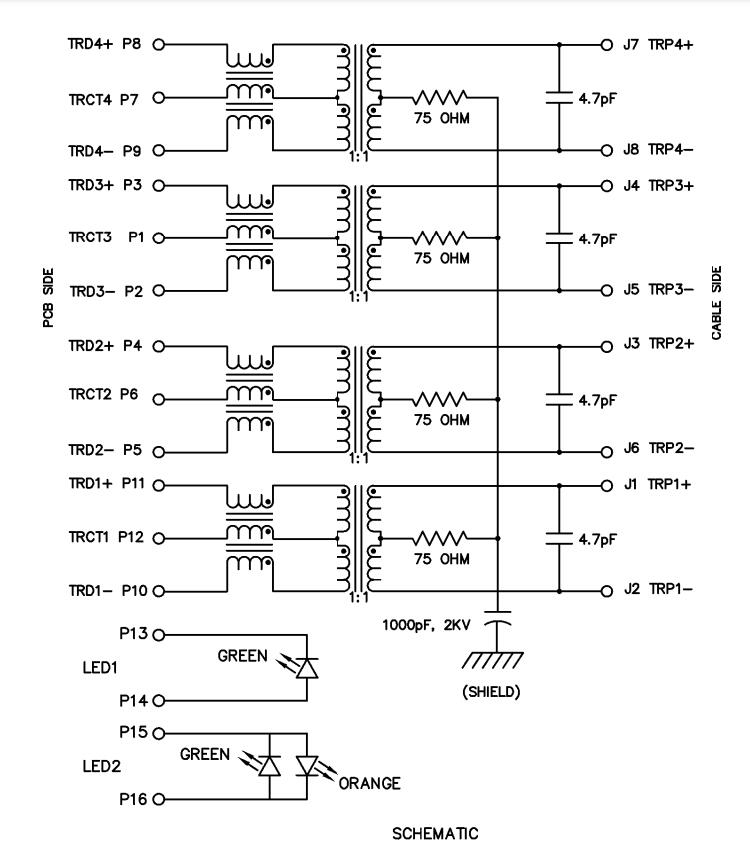

J0G-0210NL Rj45 Connector Electrical Schematic:
J0G-0210NL 1X1 Port 1000BASE-T SIDE ENTRY RJ45 Magjack Tab Up 12PIN G/OG led


J0G-0210NL SIDE ENTRY RJ45 Magjack Description:


1.J0G-0210NL 1X1 Port GIGABIT Rj45 jack
2.J0G-0210NL 1000 Base-T rj45 modular socket
3.J0G-0210NL 12PIN Single Port Tab Up RJ45 MagJack

J0G-0210NL OEM/ODM Service:

If you want to display your own brand LOGO on the goods such as network connector and lan magnetics or any where. It is no any problem.

Product Tags:

J0G-0210NL



rj45 magnetic jack



Side Entry Tab Up RJ45 Magjack
