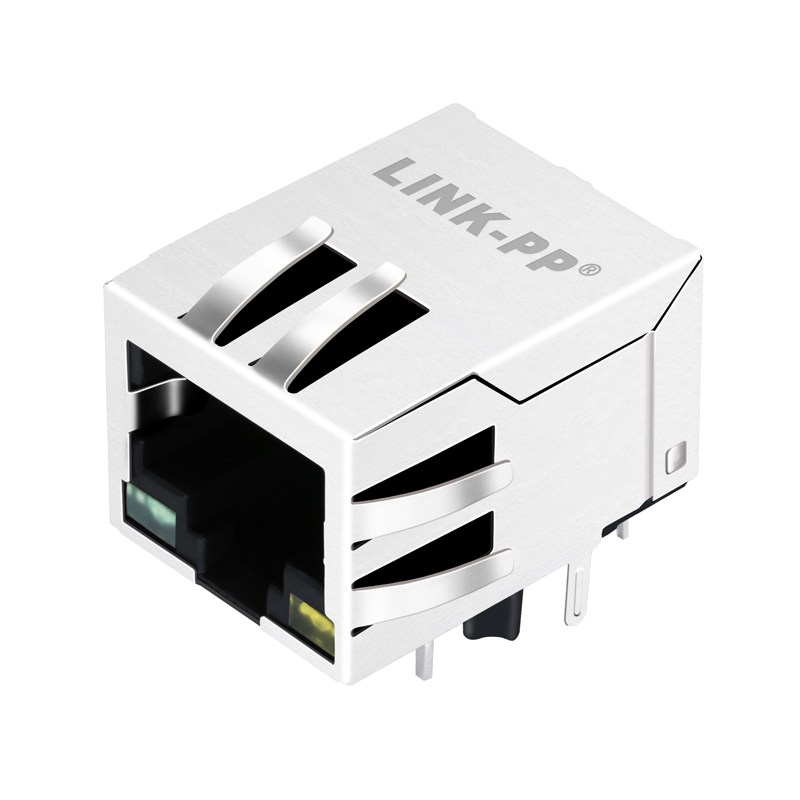

E5J88-41LHS4-LT CAT5e 1X1 Port RJ45 Magnetic Connectors Tab Down With leds

Name: E5J8841LHS4LT CAT5e 1X1 Port RJ45 Magnetic Connectors Tab Down With leds
Brand: LINK-PP
Price: 1 USD

E5J88-41LHS4-LT CAT5e 1X1 Port RJ45 Magnetic Connectors Tab Down With leds Manufactures

Brand Name : LINK-PP

Model Number : LPJxxxxxx

Certification : UL,ROHS,Reach,ISO

Place of Origin : GuangDong, China

MOQ : 50/500/1000

Price : OEM Price

Payment Terms : TT,NET30/60/90 Days

Supply Ability : 3000000/Month

Delivery Time : Stock

Packaging Details : Tray Package: 50 pcs in 1 tray,24tray in 1 carton, which is 32*30*31 , 8.5 KGS (1200pcs) of each carton

Original : E5J88-41LHS4-LT

Equivalent : LPJxxxxxx

Ethernet Aplly : 1000 Base-T

Samples : Free Available

File : PDF/3D/ISG/Stp/Step/Datasheet/Touchstone Format/S-parameters

Lifecycle : More than 20Years

Contact Now

E5J88-41LHS4-LT CAT5e 1X2 Port RJ45 Magnetic Connectors Tab Down With leds

LINK-PP Part Number	LPJxxxxxx
Part Number	E5J88-41LHS4-LT
Part Status	Active
Speed	100/1000 BASE-T
Connector Type	Jack
Number of Positions/Contacts	8p8c (RJ45, Ethernet)
Cores per Port
LED Option	GREEN/YELLOW Led
Latch	Tab Down
Number of Ports	1X1 PORT
PCB Mount Angle	SIDE ENTRY
Shield EMI Tabs	WITH
CONTACT MATING AREA PLATING	GOLD 0.76um
PACKAGE HEIGHT MM	13.9
PACKAGE LENGTH MM	15.7
PACKAGE WIDTH MM	16.4

E5J88-41LHS4-LT CAT5e 1X1 Port RJ45 Magnetic Connectors Tab Down With leds
E5J88-41LHS4-LT Mechanical Specification:

E5J88-41LHS4-LT CAT5e 1X1 Port RJ45 Magnetic Connectors Features and Benefits:

.Small footprint – increase PCB real estate.
.1x1 and 1x2 design for Ethernet 100/1000 or RS232/485
.Support PoE currents up to 1.2Amp per channel
.Bi-Colour LEDs for indicating operating mode
.Rugged Design for -40 to +85°C operations
.Wave 260°C pk or Reflow solderable 245°C pk
.Tape and Reel option for automatic PnP processing

E5J88-41LHS4-LT RJ45 Magjack Description:
1.E5J88-41LHS4-LT 1X1Port Rj45 jack

2.E5J88-41LHS4-LT CAT5e RJ45 Female Connector

3.E5J88-41LHS4-LT 8PIN Single Port Tab Up RJ45 Jack
