TC1000 1G BASE-T SINGLE Port 8PIN SMT ETHERNET TRANSFORMER

  • 1
  • 2

Brand Name : LINK-PP

Model Number : LPXXXXXX

Certification : UL,RoHS,Reach,ISO

Place of Origin : Guangdong,China

MOQ : 400/2000/10K/25K

Price : $0.06-$3.2

Payment Terms : TT,NET30/60/90 Days

Supply Ability : 3KK/Month

Delivery Time : Stock

Packaging Details : T&R

Original : TC1000

Equivalent : LPxxxxxx

Speed : 1G Base-T

Transformer Type : Isolation and Data Interface

Temperature : -40°C ~ 85°C

File : PDF/3D/ISG/Stp/Step/Datasheet/Touchstone Format/S-parameters

Contact Now

TC1000 1G BASE-T SINGLE Port 8PIN SMT ETHERNET TRANSFORMER

LINK-PP Part Number LPxxxxxx
Other Part Number TC1000
Speed 1G BASE-T
Number of Ports SINGLE
Application - LAN ETHERNET (NON PoE)
Package SMT
Temperature -40°C ~ 85°C
AutomDX YES
Comment SAME AS NL VERSION
Configuration RX T,C,S
Configuration TX T,C,S
Construction OPEN FRAME
Number of Ports SINGLE
Package Height (Inches/mm) 3
Package Length (Inches/mm) 4.85
Package Width (Inches/mm) 3.55
Turns Ratio RX 1CT:1CT
Turns Ratio TX 1CT:1CT

TC1000 1G BASE-T SINGLE Port 8PIN SMT ETHERNET TRANSFORMER Features:

.Meets IEEE802.3 specification with 1000BASE-T, 2.5GBASE-T, 5GBASE-T, and 10GBASE-T (Non-PoE and PoE+)
.Compatible with all Major PHYs
.Compliance to the REACH and RoHS directive
.Ideal for Networking and Interconnect devices, Servers, Switches, Router, Access Point, and Digital Video and Cameras

You may be interesting in below considerate supports:
Datasheet Request by email to contact us
Samples Free For Free samples delivery, pls advise below infomation For Shipping
Company Name
Delivery Address
Telephone Number
Contact Person
UPS/DHL/Fedex/TNT A.C (If available)
Trial Production U/P(USD) $0.06-$3.2 We can ship out parts directly to your warehouse/door to door
L/T(Weeks) Stock
Shipping Term DAP/CIF/FCA/FOB
Mass Production U/P(USD) Stock
L/T(Weeks) Stock
Shipping Term DAP/CIF/FCA/FOB
Lifecycel More than 20 years You can use our parts for long term consideration
Reject Ratio Zero Defective (100% Tested)
Special Services Accept customized service Accept revised designing
Now you can contact us instantly

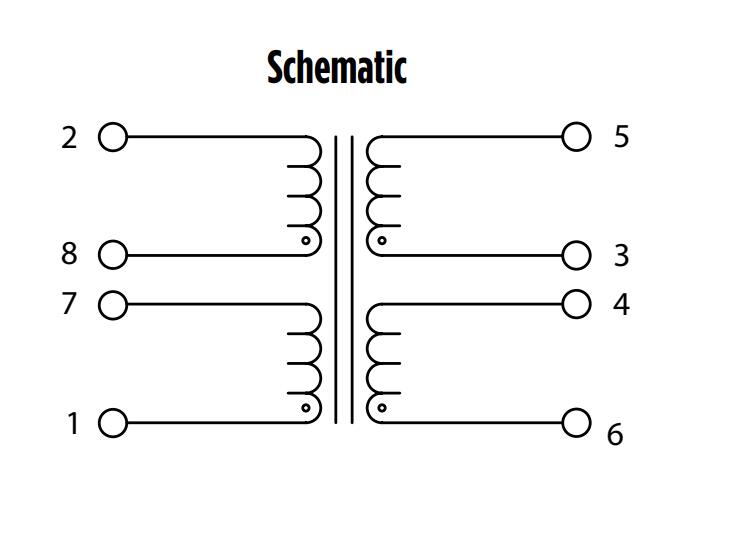

TC1000 1G BASE-T SINGLE Port 8PIN SMT ETHERNET TRANSFORMER​ Electrical Schematic:

TC1000 1G BASE-T SINGLE Port 8PIN SMT ETHERNET TRANSFORMER

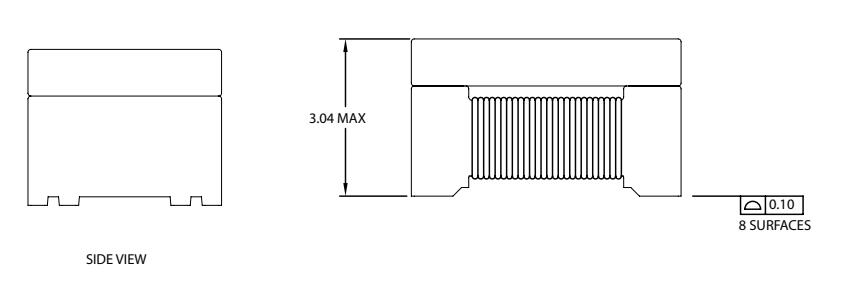

TC1000 SMT ETHERNET TRANSFORMER Mechanical Specification:

TC1000 1G BASE-T SINGLE Port 8PIN SMT ETHERNET TRANSFORMER

TC1000​ SMD ETHERNET TRANSFORMER package:

TC1000 1G BASE-T SINGLE Port 8PIN SMT ETHERNET TRANSFORMER

TC1000 similar Part Number :

TC1000 ST7033QNL TC1000
ST7033QNLT TC10000P TC1000P
