ST7010FNL 16 Pin 1 Port SMT LAN Transformer 10 BASE-T

  • 1
  • 2

Brand Name : LINK-PP

Model Number : LPXXXXXX

Certification : UL,RoHS,Reach,ISO

Place of Origin : Guangdong,China

MOQ : 400/2000/10K/25K

Price : $0.06-$3.2

Payment Terms : TT,NET30/60/90 Days

Supply Ability : 3KK/Month

Delivery Time : Stock

Packaging Details : T&R

Original : ST4202TNL

Equivalent : LPxxxxxx

Speed : 10 Base-T

Transformer Type : Isolation and Data Interface

Temperature : 0°C ~ 70°C

File : PDF/3D/ISG/Stp/Step/Datasheet/Touchstone Format/S-parameters

Contact Now

ST7010FNL 16 Pin 1 Port SMT Lan Transformer 10 BASE-T

LINK-PP Part Number LPxxxxxx
Other Part Number ST7010FNL
Speed 10 BASE-T
Number of Ports SINGLE
PIN number 16
Cores per Port 4
POE RATING NON-POE
Package SMT
Temperature 0°C ~ 70°C
Configuration RX T,C,S
Configuration TX T,C,S
Construction OPEN FRAME
APPLICATION-LAN ETHERNET TRANSFORMER
Package Height (Inches) 5.715
Package Length (Inches) 11.557
Package Width (Inches) 9.525
Turns Ratio RX 1CT:1CT
Turns Ratio TX 1CT:1CT

You may be interesting in below considerate supports:
Datasheet Request by email to contact us
Samples Free For Free samples delivery, pls advise below infomation For Shipping
Company Name
Delivery Address
Telephone Number
Contact Person
UPS/DHL/Fedex/TNT A.C (If available)
Trial Production U/P(USD) $0.06-$3.2 We can ship out parts directly to your warehouse/door to door
L/T(Weeks) Stock
Shipping Term DAP/CIF/FCA/FOB
Mass Production U/P(USD) Stock
L/T(Weeks) Stock
Shipping Term DAP/CIF/FCA/FOB
Lifecycel More than 20 years You can use our parts for long term consideration
Reject Ratio Zero Defective (100% Tested)
Special Services Accept customized service Accept revised designing
Now you can contact us instantly

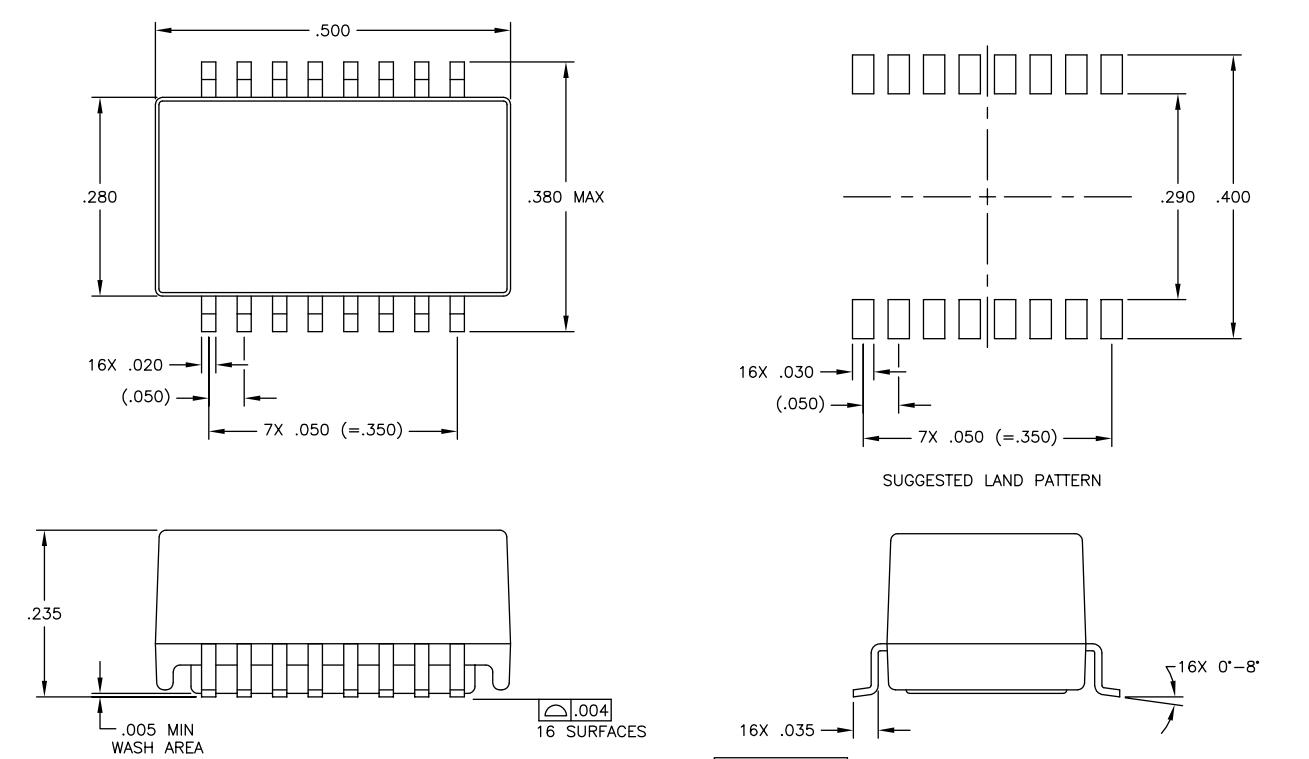

ST7010FNL Mechanical Specification:

ST7010FNL 16 Pin 1 Port SMT LAN Transformer 10 BASE-T

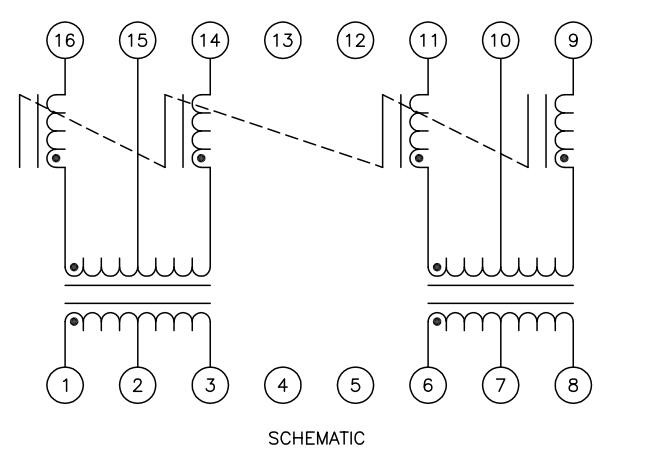

ST7010FNL 10 BASE-T 16Pin Lan Transformer Modules Electrical Schematic:

ST7010FNL 16 Pin 1 Port SMT LAN Transformer 10 BASE-T

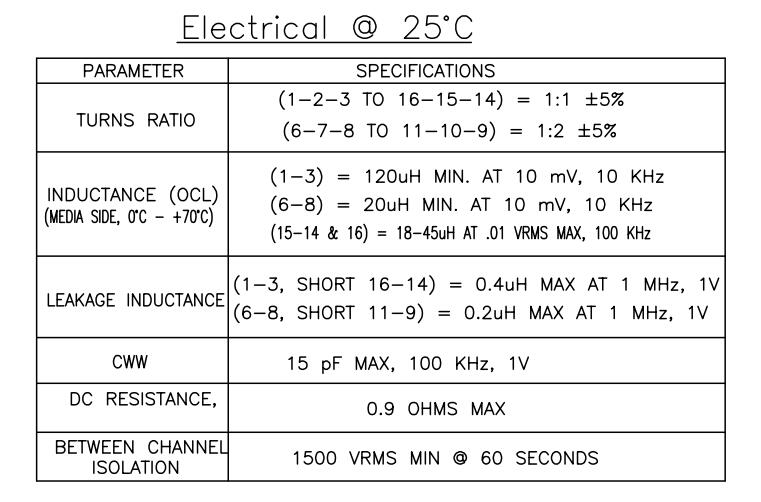

ST7010FNL 16 Pin 1 Port SMT Lan Transformer Electrical Specifications:

ST7010FNL 16 Pin 1 Port SMT LAN Transformer 10 BASE-T
​

ST7010FNL similar Part Number :

ST7010FNL ST7032QNL ST7032QNLT
ST7010FNLT ST7011FNL ST7011FNLT
