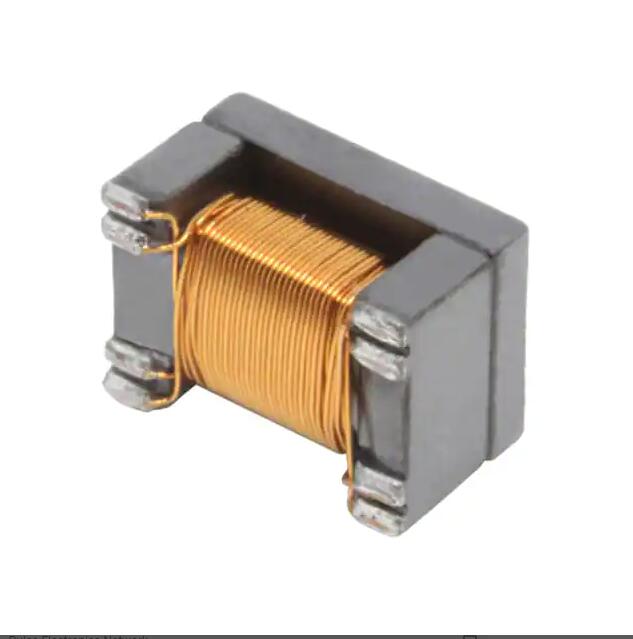

TC2500P 2.5G BASE-T POE+ 30W SMT Lan Transformer Modules SINGLE Port 8Pin

  • 1
  • 2
  • 3

Brand Name : LINK-PP

Model Number : LPXXXXXX

Certification : UL,RoHS,Reach,ISO

Place of Origin : Guangdong,China

MOQ : 400/2000/10K/25K

Price : $0.06-$3.2

Payment Terms : TT,NET30/60/90 Days

Supply Ability : 3KK/Month

Delivery Time : Stock

Packaging Details : T&R

Original : TC2500P

Equivalent : LPxxxxxx

Speed : 2.5G Base-T

Transformer Type : Isolation and Data Interface

Temperature : -40°C ~ 85°C

File : PDF/3D/ISG/Stp/Step/Datasheet/Touchstone Format/S-parameters

Contact Now

TC2500P 2.5G BASE-T POE+ 30W SMT Lan Transformer Modules SINGLE Port 8Pin


TC2500P 2.5G BASE-T POE+ 30W SMT Lan Transformer Modules SINGLE Port 8Pin Features:


.Meets IEEE802.3 specification with 1000BASE-T, 2.5GBASE-T, 5GBASE-T, and 10GBASE-T (Non-PoE and PoE+)
.Compatible with all Major PHYs
.Compliance to the REACH and RoHS directive
.Ideal for Networking and Interconnect devices, Servers, Switches, Router, Access Point, and Digital Video and Cameras

LINK-PP Part Number LPxxxxxx
Other Part Number TC2500P
Speed 2.5G BASE-T
Number of Ports SINGLE
POE RATING POE+ 30W
Package SMT
Temperature -40°C ~ 85°C
Configuration RX T,C,S
Configuration TX T,C,S
Construction OPEN FRAME
APPLICATION-LAN ETHERNET TRANSFORMER
Package Height (Inches/mm) 3
Package Length (Inches/mm) 4.85
Package Width (Inches/mm) 3.55
Turns Ratio RX 1CT:1CT
Turns Ratio TX 1CT:1CT

You may be interesting in below considerate supports:
Datasheet Request by email to contact us
Samples Free For Free samples delivery, pls advise below infomation For Shipping
Company Name
Delivery Address
Telephone Number
Contact Person
UPS/DHL/Fedex/TNT A.C (If available)
Trial Production U/P(USD) $0.06-$3.2 We can ship out parts directly to your warehouse/door to door
L/T(Weeks) Stock
Shipping Term DAP/CIF/FCA/FOB
Mass Production U/P(USD) Stock
L/T(Weeks) Stock
Shipping Term DAP/CIF/FCA/FOB
Lifecycel More than 20 years You can use our parts for long term consideration
Reject Ratio Zero Defective (100% Tested)
Special Services Accept customized service Accept revised designing
Now you can contact us instantly


TC2500P 2.5G BASE-T POE+ 30W SMT Lan Transformer Modules SINGLE Port 8Pin

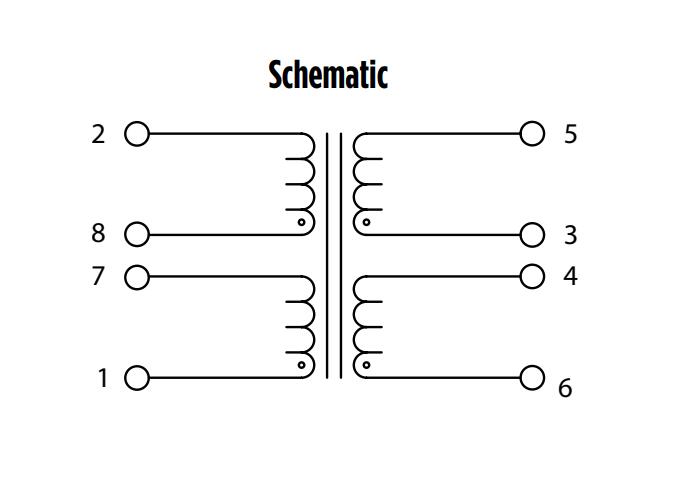

TC2500P 2.5G BASE-T POE Lan Transformer Modules Electrical Schematic:

TC2500P 2.5G BASE-T POE+ 30W SMT Lan Transformer Modules SINGLE Port 8Pin

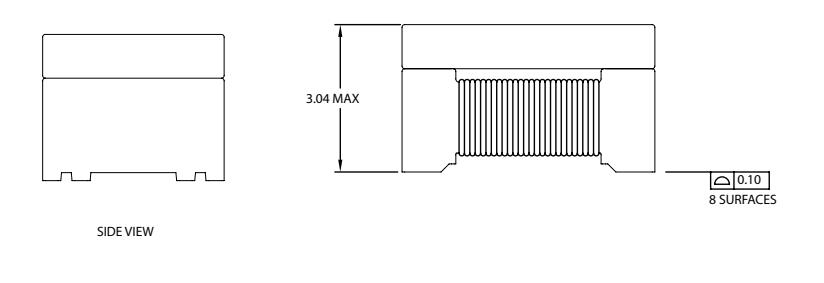

TC2500P 2.5G BASE-T POE+ 30W SINGLE Port 8Pin SMT Lan Transformer Modules Side VIEW:


TC2500P 2.5G BASE-T POE+ 30W SMT Lan Transformer Modules SINGLE Port 8Pin


TC2500P similar Part Number :

TC2500 TC2500P TC1000
TC5000 TC5000P TC1000P
