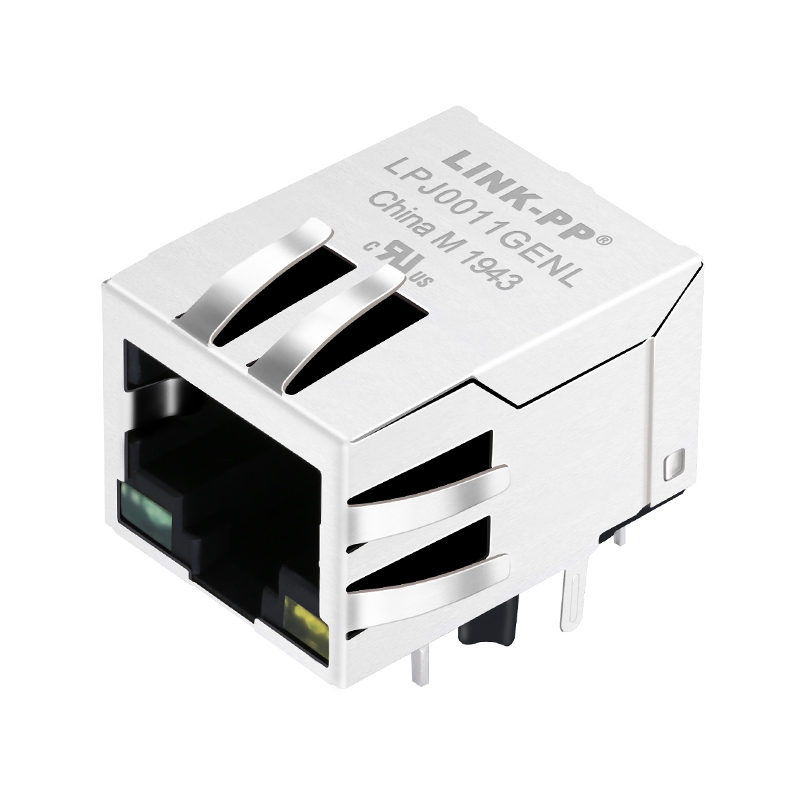

RJ324109BN-LF 100 Base-T Tab Down 1 Port RJ45 Jack Connector Green/Yellow Led LPJ0011GENL

Brand Name : LINK-PP

Model Number : LPJ0011GENL

Certification : UL,ROHS,Reach,ISO

Place of Origin : GuangDong, China

MOQ : 50/500/1000

Price : OEM Price

Payment Terms : TT,NET30/60/90 Days

Supply Ability : 3000000/Month

Delivery Time : Stock

Packaging Details : Tray Package: 50 pcs in 1 tray,24tray in 1 carton, which is 32*30*31 , 8.5 KGS (1200pcs) of each carton

Original : RJ324109BN-LF

Equivalent : LPJ0011GENL

Operating Temperature : 0℃ TO 70℃

Samples : Free Available

File : PDF/3D/ISG/Stp/Step/Datasheet/Touchstone Format/S-parameters

Lifecycle : More than 20Years

Contact Now

RJ324109BN-LF 100 Base-T Tab Down 1 Port RJ45 Jack Connector Green/Yellow Led LPJ0011GENL

RJ324109BN-LF Compatible LINK-PP LPJ0011GENL 10/100 Base-T RJ45 Jack Connector for Monitoring System and Entrance Guard System (1x1 Port, Tab Down, Green/Yellow Led)
LINK-PP Part Number LPJ0011GENL
Part Number RJ324109BN-LF
Application-Lan ETHERNET(NON PoE)
Part Status Active
Connector Type Jack
Number of Positions/Contacts 8p8c (RJ45, Ethernet)
Cores per Port 4
Speed 100 Base-T
LED Option Green/Yellow Led
Latch Tab Down
Number of Ports 1X1 Port
Orientation 90° Angle (Right)
PCB Mount Angle SIDE ENTRY
PCB Retaining Post T POST
Package Height (Inches/mm) 0.528/13.30
Package Length (Inches/mm) 0.838/21.25
Package Width (Inches/mm) 0.626/15.95
Search YES
Shield EMI Tabs With
Temperature 0℃ TO 70℃
Contact Mating Area Plating GOLD 6u"/15u"/30u"
AutomDX YES
Turns Ratio RX 1CT:1CT
Turns Ratio TX 1CT:1CT

You may be interesting in below considerate supports:
Datasheet Request by email to
Samples Free For Free samples delivery, pls advise below infomation For Shipping
Company Name
Delivery Address
Telephone Number
Contact Person
UPS/DHL/Fedex/TNT A.C (If available)
Trial Production U/P(USD) $0.09-$1.85 We can ship out parts directly to your warehouse/door to door
L/T(Weeks) Stock
Shipping Term DAP/CIF/FCA/FOB
Mass Production U/P(USD) Stock
L/T(Weeks) Stock
Shipping Term DAP/CIF/FCA/FOB
Lifecycel More than 20 years You can use our parts for long term consideration
Reject Ratio Zero Defective (100% Tested)
Special Services Accept customized service Accept revised designing
Now you can contact us instantly

RJ324109BN-LF 100 Base-T Tab Down 1 Port RJ45 Jack Connector Green/Yellow Led LPJ0011GENL

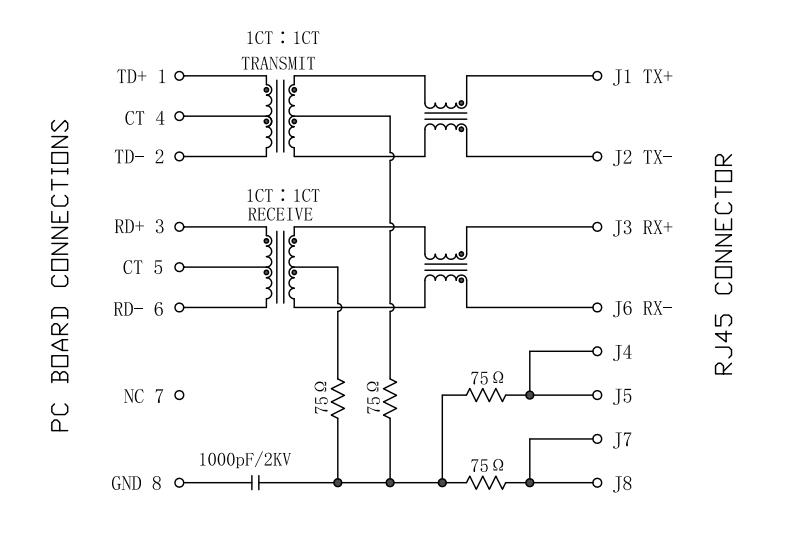

RJ324109BN-LF 100 Base-T Tab Down 1 Port RJ45 Jack Connector Circuit Diagram:

RJ324109BN-LF 100 Base-T Tab Down 1 Port RJ45 Jack Connector Green/Yellow Led LPJ0011GENL


RJ324109BN-LF 100 Base-T Tab Down 1 Port RJ45 Jack Connector Electrical Specifications @25"C
1. Turn Ratio(士2%) :
TX=1CT:1CT
RX=1CT:1CT
2. Inductance 0CL: 350uH MIN
@ 100KHz/0. 1V 8mA DC Bias
3. Insertion Loss:
1~ 100MHz:-1.0dB MAX
4. Return Loss(dB MIN) :
. 1~ 30MHz: -18
30~60MHz:-15
60~80MHz: -12
80~ 100MHz:-10
5. Cross talk(dB MIN) :
30MHz: -40
60MHz: - -35
100MHz:-30
6. Common Mode Rejection(dB MIN) :
30MHz: -40
60MHz: - 35
100MHz:-30
7. Hipot Test: 1500Vrms
8. Operating Temperature Range: 0°C~70°C.

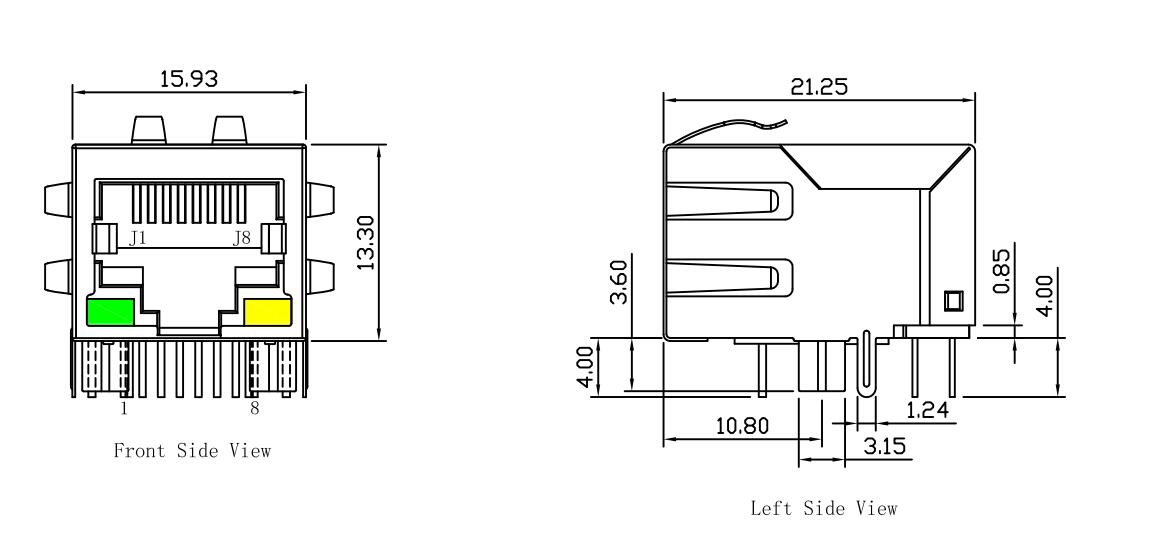

RJ324109BN-LF 100 Base-T Tab Down 1 Port RJ45 Jack Connector Mechanical Specification:
RJ324109BN-LF 100 Base-T Tab Down 1 Port RJ45 Jack Connector Green/Yellow Led LPJ0011GENL

RJ324109BN-LF Description:

  • RJ324109BN-LF Compatible LINK-PP LPJ0011GENL 10/100 Base-T RJ45 Jack
  • RJ324109BN-LF Single Port RJ45 MagJack
  • RJ324109BN-LF 100 Base-T RJ45 Connector Green/Yellow Led
  • RJ324109BN-LF 100 Base-T Rj45 Female Connector

RJ324109BN-LF RJ45 Connector Package:

RJ324109BN-LF 100 Base-T Tab Down 1 Port RJ45 Jack Connector Green/Yellow Led LPJ0011GENL

Connector Network Applications:

Networking : Router , Server , Switches , Network Firewall , SMPS.

Consumer : Digital Camera , Video Recorder , Media Player , Game Controller , TV.

Security : Alarm , Smart Camera , Monitoring System , Intercom , Entrance Guard System.

Telecom : Set-top Box , Smart Home , Smart Meters , Satellite , New Energy , Solar Inverter.

Medical : Surgical Equipment , Patient Care , The Handheld Device , Operation Generator , Home Dialysis , Machine.

Industrial l/O : Industrial PC , Embedded Main Board , Ethernet Control , Automation , Fieldbus System , 1/0 Controller.
