L3BH002-0 100 Base - T Dual Ports LAN Filter Magnetic Transformers 20 Pin

  • 1
  • 2
  • 3

Brand Name : LINK-PP

Model Number : LPxxxxxx

Certification : UL,RoHS,Reach,ISO

Place of Origin : Guangdong,China

MOQ : 400/2000/10K/25K

Price : $0.06-$3.2

Payment Terms : TT,NET30/60/90 Days

Supply Ability : 3KK/Month

Delivery Time : Stock

Packaging Details : T&R

Original : L3BH002-0

Equivalent : LPxxxxxx

Speed : 100 Base-T

Transformer Type : Isolation and Data Interface

Operating Temperature : 0°C to +70°C

File : PDF/3D/ISG/Stp/Step/Datasheet/Touchstone Format/S-parameters

Contact Now

L3BH002-0 100 Base –T Dual Ports LAN Filter Magnetic Transformers 20 Pin

Item Part Number L3BH002-0
LINK-PP Part Number LPxxxxxx
Manufacturer LINK-PP
Speed 100 BASE-T
Number of Ports Dual Port
PIN number 20 PIN
Cores per Port 8
POE Ethernet(NON PoE )
Type DIP
Size 25.5 x 10 x 6.7
Pin Pitch 2.54
Circuits T+2C
Operating Temperature 0°C to +70°C
CMC Cable

You may be interesting in below considerate supports:
Datasheet Request by email to contact us
Samples Free For Free samples delivery, pls advise below infomation For Shipping
Company Name
Delivery Address
Telephone Number
Contact Person
UPS/DHL/Fedex/TNT A.C (If available)
Trial Production U/P(USD) $0.06-$3.2 We can ship out parts directly to your warehouse/door to door
L/T(Weeks) Stock
Shipping Term DAP/CIF/FCA/FOB
Mass Production U/P(USD) Stock
L/T(Weeks) Stock
Shipping Term DAP/CIF/FCA/FOB
Lifecycel More than 20 years You can use our parts for long term consideration
Reject Ratio Zero Defective (100% Tested)
Special Services Accept customized service Accept revised designing
Now you can contact us instantly

L3BH002-0 100 Base - T Dual Ports LAN Filter Magnetic Transformers 20 Pin

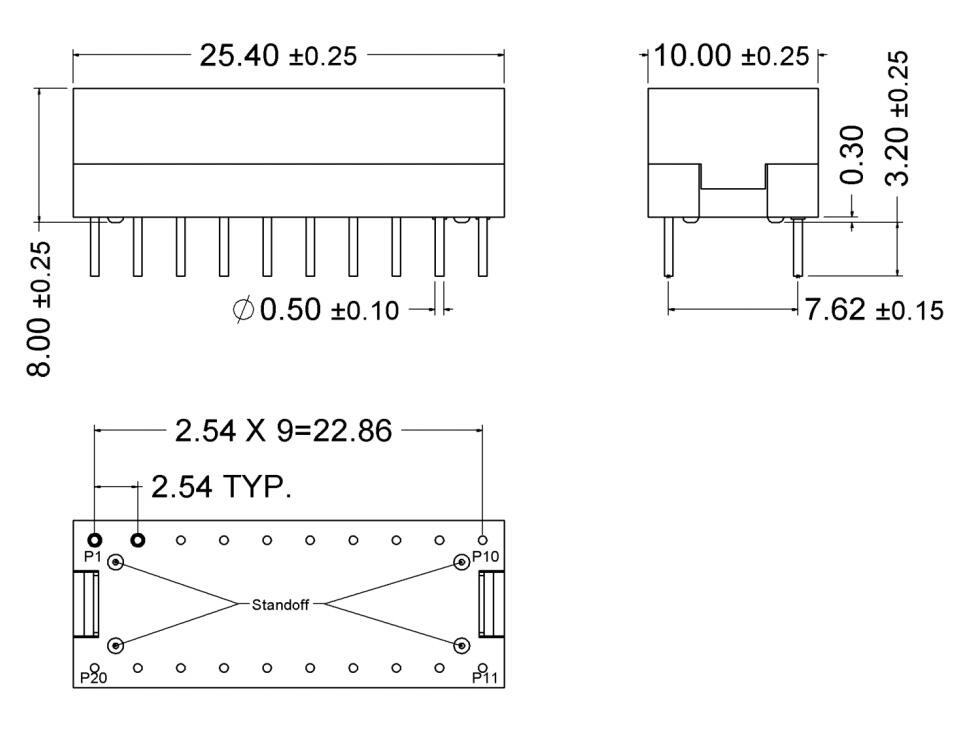

L3BH002-0 100 Base –T Dual Ports LAN Filter Magnetic Transformers Product Dimension:

L3BH002-0 100 Base - T Dual Ports LAN Filter Magnetic Transformers 20 Pin

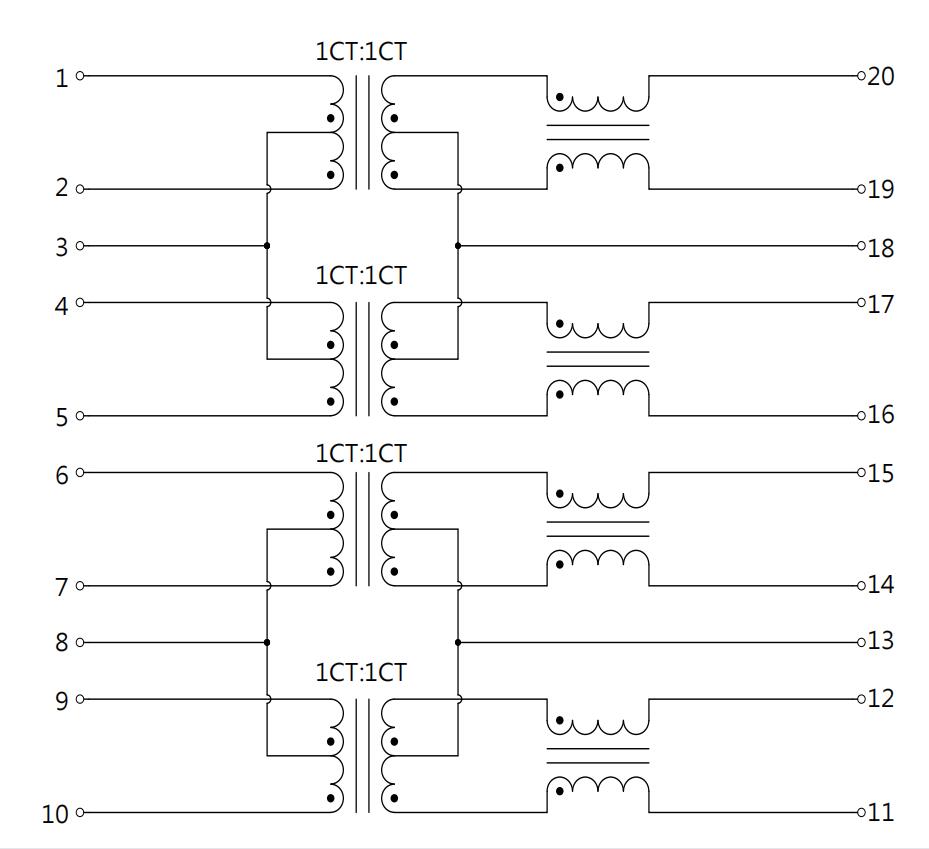

L3BH002-0 ELECTRICAL CHARACTERISTICS Schematic:

L3BH002-0 100 Base - T Dual Ports LAN Filter Magnetic Transformers 20 Pin

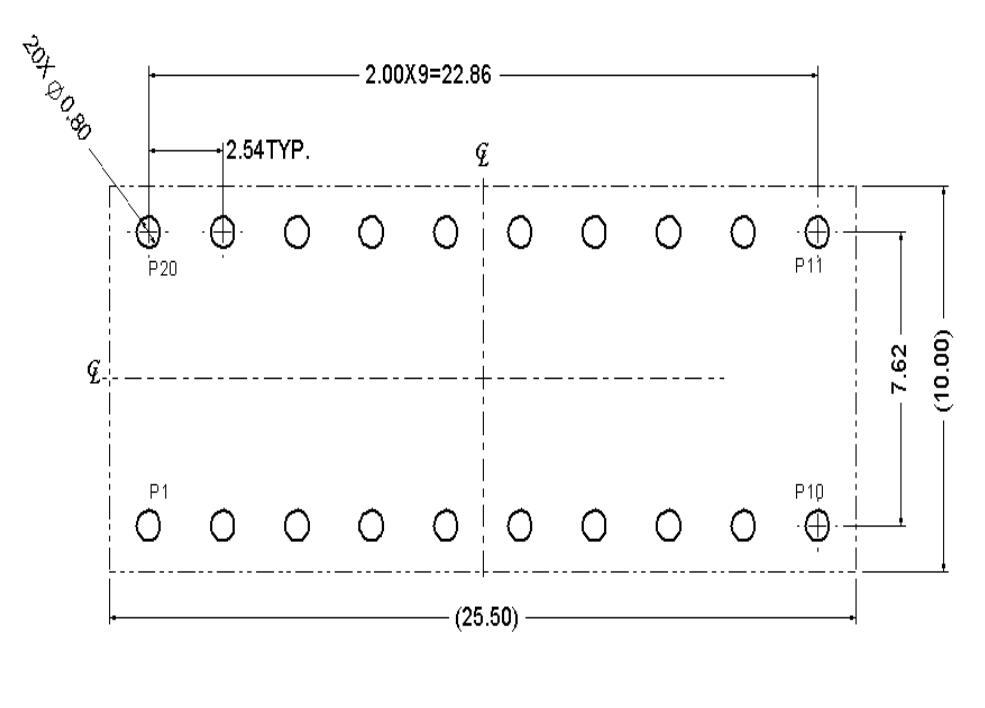

L3AH002-0 Recommened PCB Layout (Unit mm)
L3BH002-0 100 Base - T Dual Ports LAN Filter Magnetic Transformers 20 Pin
L3BH002-0 SPECIFICATION:
Designed for Ethernet 100 Base- T,Dual Ports applications.
Supports 4 pairs of category 5 UTP cable.
Cable interface for isolation and low common mode emissions.
Compliant with EEE 802.3 and ANSI X3263 standard.
Compliant with Halogen Free& RoHS requirements.
Operating and Storage Temperature
Operating Temperature: 0°C to +70°C
Storage Temperature :-25°C to + 105°C

Pack ing Information
20 pcs finished goods per tube.
288 tubes(5760 pcs finished goods) per master carton.

L3BH002-0 Similar Part Number :

L1CN001-0 L3AH002-0 L3BH002-0
L12N003-0 L12T001-2 L12T002-0
L13H003-0 L14H001-3 L14H002-4
L14H003-3 L14H005-0 L14T002-0
L14T002-3 L18T010-3 L19H007-4
