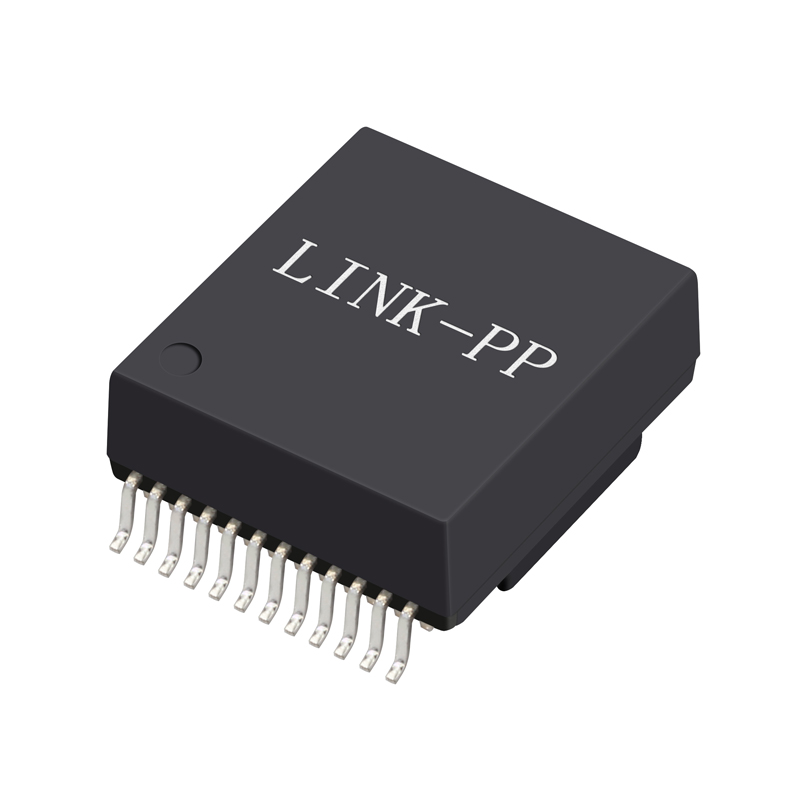

L22B003-0 5G Base - T Single Port Magnetic Filter Transformer SMD 100% RoHS

Brand Name : LINK-PP

Model Number : LPxxxxxx

Certification : UL,RoHS,Reach,ISO

Place of Origin : Guangdong,China

MOQ : 400/2000/10K/25K

Price : $0.06-$3.2

Payment Terms : TT,NET30/60/90 Days

Supply Ability : 3KK/Month

Delivery Time : Stock

Packaging Details : T&R

Original : L22B003-0

Equivalent : LPxxxxxx

Speed : 5G Base-T

Transformer Type : Isolation and Data Interface

Operating T-40~+105℃emperature : -40~+85℃

File : PDF/3D/ISG/Stp/Step/Datasheet/Touchstone Format/S-parameters

Contact Now

L22B003-0 5G Base –T Single Port Magnetic Filter Transformer SMD 100% RoHS

Item Part Number L22B003-0
LINK-PP Part Number LPxxxxxx
Manufacturer LINK-PP
Speed 5G BASE-T
Number of Ports Single Ports
PIN number 24 PIN
Cores per Port 8
POE Non PoE
Type SMD
Size 13.51 x 15.2 x 6.09
Pin Pitch 1.02
Circuits 3C+T
Operating Temperature -40~+85℃
CMC PHY

You may be interesting in below considerate supports:
Datasheet Request by email to contact us
Samples Free For Free samples delivery, pls advise below infomation For Shipping
Company Name
Delivery Address
Telephone Number
Contact Person
UPS/DHL/Fedex/TNT A.C (If available)
Trial Production U/P(USD) $0.06-$3.2 We can ship out parts directly to your warehouse/door to door
L/T(Weeks) Stock
Shipping Term DAP/CIF/FCA/FOB
Mass Production U/P(USD) Stock
L/T(Weeks) Stock
Shipping Term DAP/CIF/FCA/FOB
Lifecycel More than 20 years You can use our parts for long term consideration
Reject Ratio Zero Defective (100% Tested)
Special Services Accept customized service Accept revised designing
Now you can contact us instantly

L22B003-0 5G Base - T Single Port Magnetic Filter Transformer SMD 100% RoHS

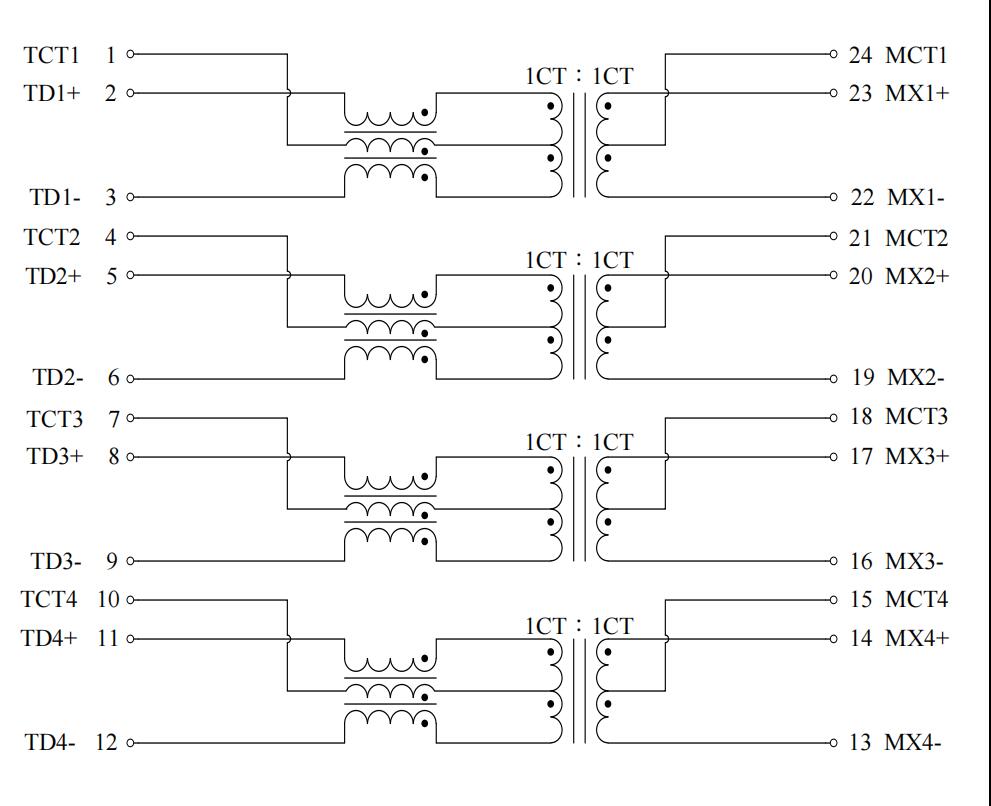

L22B003-0 5G Base –T Magnetic Filter ELECTRICAL CHARACTERISTICS Schematic:

L22B003-0 5G Base - T Single Port Magnetic Filter Transformer SMD 100% RoHS

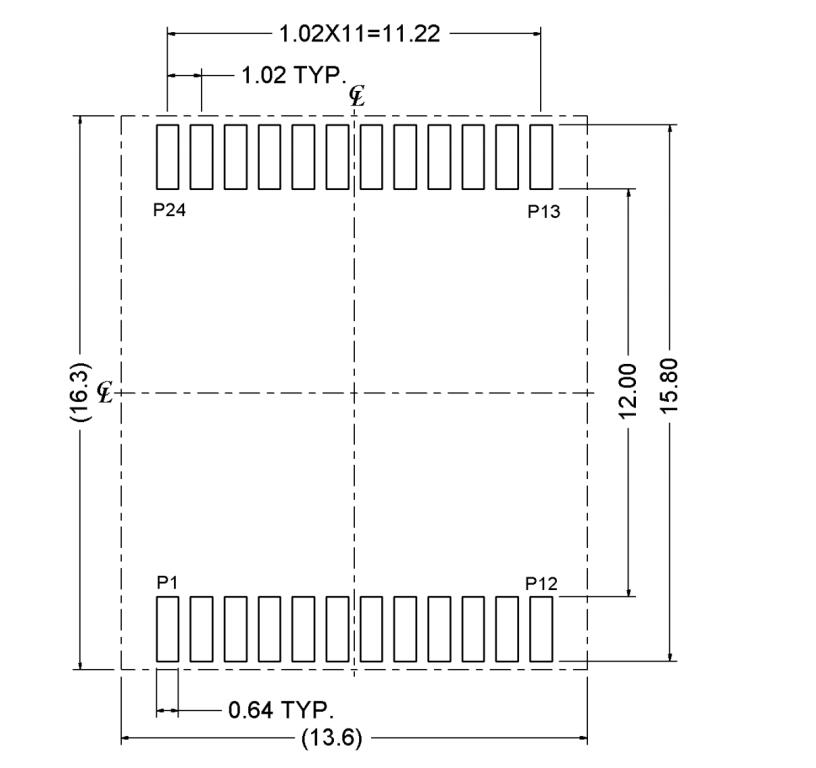

L22B003-0 Recommened PCB Layout (Unit mm)
L22B003-0 5G Base - T Single Port Magnetic Filter Transformer SMD 100% RoHS

L22B003-0 SPECIFICATION:

Designed for Ethernet 5G Base- T,Single port applications.
Supports 4 pairs of category 5e or greater cable.
Cable interface for isolation and low common mode emissions.
Designed to meet IEEE 802 .3bz Standard.
Compliant with RoHS&Halogen Free requirements.
Operating and Storage Temperature
Operating Temperature : -40°C to +859C
Storage Temperature: - 40°C to +85°C
Packing Information
500 pcs finished goods per reel
3 reels( 1500
pcs finished goods) per inner box
2 Inner boxes( 3000 pcs finished goods) per master carton

L22B003-0 Similar Part Number :

L19T003-4 L19T004-3 L22A003-3
L22A007-3 L22B003-0 L22B005-0
L22B006-0 L22H004-S L22H005-3
L22H006-2 L22H006-4 L22H007-0
L22H008-3 L22H010-3 L22H017-0
