2170746-2 QSFP28 Cage Ganged 1 X 4 Connector With Lightpipe

Name: 21707462 QSFP28 Cage Ganged 1 X 4 Connector With Lightpipe
Brand: LINK-PP
Price: 0.11 USD

2170746-2 QSFP28 Cage Ganged 1 X 4 Connector With Lightpipe Manufactures

Brand Name : LINK-PP

Certification : ISO 9001,ISO 14001,UL,SGS,REACH168

Place of Origin : Guangdong,China

MOQ : 10/100/25K

Price : $0.11-$35

Payment Terms : TT,NET30/60/90 Days

Supply Ability : 350K/Month

Delivery Time : Stock

Packaging Details : 20/Tray

Original : 2170746-2

Connector Type : QSFP28 Cage

Part Status : Active

Data Rate (Max) (Gb/s) : 28 Gb/s

File : PDF/3D/ISG/Stp/Step/Datasheet/Touchstone Format/S-parameters

Lifecycle : More Than 20Years

Contact Now

2170746-2 QSFP28 Cage Ganged (1 x 4) Connector With Lightpipe

QSFP28, Cage Assembly, 1 x 4, Internal/External EMI Springs, Included Lightpipe, Standard, Data Rate (Max) 28 Gb/s

Part Number	2170746-2
Part Status	Active
Connector Type	QSFP28
Connector Style	Cage, Ganged (1 x 4)
Number of Ports	1X4 port
Included Lightpipe	Yes
PCB Mounting Style	Through Hole - Press-Fit
Data Rate (Max)	28 Gb/s
Features	EMI Shielded
Operating Temperature Range	-40 – 85 °C
PCB Thickness (Recommended)	1.57 mm [ .062 in ]
Tail Length	2.05 mm [ .081 in ]
Cage Material	Nickel Silver
EMI Containment Feature Type	EMI Springs
Circuit Application	Signal
Pluggable I/O Applications	SFP+ Stacked Belly-to-Belly

You may be interesting in below considerate supports:

Datasheet	Request by email to	contact us
Samples	Free	For Free samples delivery, pls advise below infomation For Shipping
		Company Name
		Delivery Address
		Telephone Number
		Contact Person
		UPS/DHL/Fedex/TNT A.C	(If available)
Trial Production	U/P(USD)	$0.09-$1.85	We can ship out parts directly to your warehouse/door to door
	L/T(Weeks)	Stock
	Shipping Term	DAP/CIF/FCA/FOB
Mass Production	U/P(USD)	Stock
	L/T(Weeks)	Stock
	Shipping Term	DAP/CIF/FCA/FOB
	Lifecycel	More than 20 years	You can use our parts for long term consideration
	Reject Ratio	Zero Defective (100% Tested)
Special Services	Accept customized service		Accept revised designing
Now you can contact us instantly

2170746-2 QSFP28 Cage Ganged 1 X 4 Connector With Lightpipe

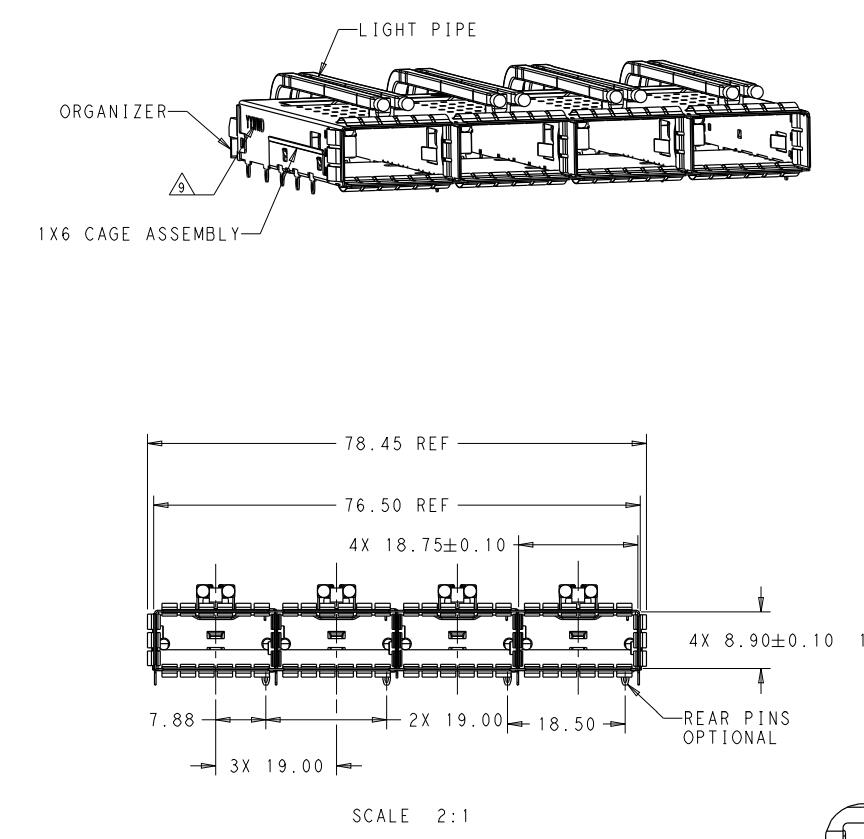

2170746-2 QSFP28 Cage Ganged (1 x 4) Connector With Lightpipe Drawing:

2170746-2 Description:

.2170746-2 QSFP28 Cage Ganged (1 x 4)
.2170746-2 1x4 Port QSFP28 Cage With Lightpipe
.2170746-2 4 Port QSFP28 Cage Assembly 28 Gb/s

.2170746-2 QSFP28 Cage 1x4 Port Through Hole Press-Fit

What Is QSFP28 ?

QSFP28 (quad small form-factor pluggable 28) is designed for 100G applications.

It offers four channels of high-speed differential signals with data rates ranging from

25 Gbps up to potentially 40 Gbps, and finally, meet 100 Gbps Ethernet (4×25 Gbps)

and 100 Gbps 4X InfiniBand Enhanced Data Rate (EDR) requirements. Note that,

QSFP28 can do 4x25G and 2x50G breakout connection, or 1x100G depending on

the transceiver type that is used.

2170746-2 QSFP28 Cage Similar Part Number :

2284170-1	2007251-1	2007181-1
2007132-1	2007180-1	2110069-1
2170744-4	2170805-1	2169260-1
2057555-1	2300275-1	2338495-3
2170746-2	2170805-5	2007250-1

What is the difference between QSFP56 and QSFP28?

The main difference between the QSFP56 package and the QSFP+ and QSFP28

packages is that the QSFP56 no longer adopts the previous NRZ modulation technology,

but instead adopts PAM4 modulation technology, which can achieve transmission rates of up

to 50G per channel, allowing more data to be transmitted over existing ...
