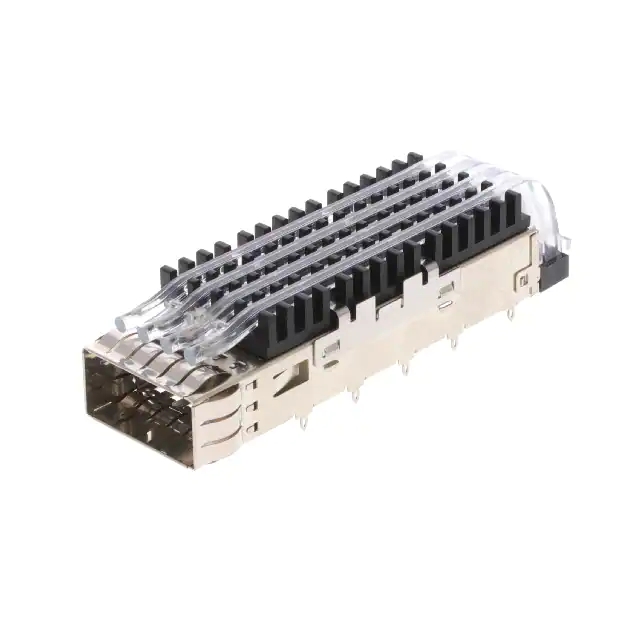

4-2170705-2 ZQSFP+ Cage With Heat Sink 1 x 1 Port Included Lightpipe

Name: 421707052 ZQSFP Cage With Heat Sink 1 x 1 Port Included Lightpipe
Brand: LINK-PP
Price: 0.11 USD

4-2170705-2 ZQSFP+ Cage With Heat Sink 1 x 1 Port Included Lightpipe Manufactures

Brand Name : LINK-PP

Certification : ISO 9001,ISO 14001,UL,SGS,REACH168

Place of Origin : Guangdong,China

MOQ : 10/100/25K

Price : $0.11-$35

Payment Terms : TT,NET30/60/90 Days

Supply Ability : 350K/Month

Delivery Time : Stock

Packaging Details : 20/Tray

Original : 4-2170705-2

Connector Type : ZQSFP+ Cage

Part Status : Active

Data Rate (Max) (Gb/s) : 28 Gb/s

File : PDF/3D/ISG/Stp/Step/Datasheet/Touchstone Format/S-parameters

Lifecycle : More Than 20Years

Contact Now

4-2170705-2 ZQSFP+ Cage With Heat Sink 1 x 1 Port Included Lightpipe

zQSFP+, Cage Assembly, 1 x 1, Internal/External EMI Springs, Included Lightpipe, Standard, Data Rate (Max) 28 Gb/

Part Number	4-2170705-2
Part Status	Active
Connector Type	ZQSFP+
Connector Style	Cage with Heat Sink
Number of Ports	1X1 port
Included Lightpipe	Yes
PCB Mounting Style	Through Hole - Press-Fit
Data Rate (Max)	28 Gb/s
Features	EMI Shielded
Operating Temperature Range	-40 – 85 °C
PCB Thickness (Recommended)	1.57 mm [ .062 in ]
Tail Length	2.05 mm [ .081 in ]
Cage Material	Nickel Silver
EMI Containment Feature Type	EMI Springs
Circuit Application	Signal
Pluggable I/O Applications	SFP+ Stacked Belly-to-Belly

You may be interesting in below considerate supports:

Datasheet	Request by email to	contact us
Samples	Free	For Free samples delivery, pls advise below infomation For Shipping
		Company Name
		Delivery Address
		Telephone Number
		Contact Person
		UPS/DHL/Fedex/TNT A.C	(If available)
Trial Production	U/P(USD)	$0.09-$1.85	We can ship out parts directly to your warehouse/door to door
	L/T(Weeks)	Stock
	Shipping Term	DAP/CIF/FCA/FOB
Mass Production	U/P(USD)	Stock
	L/T(Weeks)	Stock
	Shipping Term	DAP/CIF/FCA/FOB
	Lifecycel	More than 20 years	You can use our parts for long term consideration
	Reject Ratio	Zero Defective (100% Tested)
Special Services	Accept customized service		Accept revised designing
Now you can contact us instantly

4-2170705-2 ZQSFP+ Cage With Heat Sink 1 x 1 Port Included Lightpipe

4-2170705-2 ZQSFP+ Cage With Heat Sink 1 x 1 Port Included Lightpipe Drawing:

4-2170705-2 ZQSFP+ Cage With Heat Sink 1 x 1 Port Included Lightpipe

4-2170705-2 Description:

.4-2170705-2 ZQSFP+ Cage With Heat Sink
.4-2170705-2 1x1 Port ZQSFP+ Cage
.4-2170705-2 ZQSFP+ Cage Assembly 28 Gb/s

.4-2170705-2 ZQSFP+ Cage Included Lightpipe

4-2170705-2 Similar Part Number :

4-2170705-2	2143451-1	2291634-2
2291634-3	2007170-1	1888971-1
2170395-1	2299056-1	1551892-3
2-2170705-5	2344508-1	2007464-1
2170703-6	2170744-1	2227731-1

Is zQSFP+ the same as QSFP28?

QSFP28 can do 4x25G breakout connection, 2x50G breakout, or 1x100G depending on the transceiver used.
While QSFP+ supports the data rate of 40G, 4 channels for transmitting and 4 channels for receiving, each lane
carrying 10G. QSFP+ can break out into 4x10G or 1x40G connection.
