2170395-1 QSFP+ Cage 1x1 Port With Heat Sink Connector Solder

Name: 21703951 QSFP Cage 1x1 Port With Heat Sink Connector Solder
Brand: LINK-PP
Price: 0.11 USD

2170395-1 QSFP+ Cage 1x1 Port With Heat Sink Connector Solder Manufactures

Brand Name : LINK-PP

Certification : ISO 9001,ISO 14001,UL,SGS,REACH168

Place of Origin : Guangdong,China

MOQ : 10/100/25K

Price : $0.11-$35

Payment Terms : TT,NET30/60/90 Days

Supply Ability : 350K/Month

Delivery Time : Stock

Packaging Details : 20/Tray

Original : 2170395-1

Connector Type : QSFP+ Cage

Part Status : Active

Data Rate (Max) (Gb/s) : - Gb/s

File : PDF/3D/ISG/Stp/Step/Datasheet/Touchstone Format/S-parameters

Lifecycle : More Than 20Years

Contact Now

2170395-1 QSFP+ Cage 1x1 Port With Heat Sink Connector Solder

QSFP+ ,Cage Assembly, 1 x 1, Customer Applied Gasket, EMI Enhanced, 1 Port, Pin, Heat Sink Height 4.2 mm [.165 in]

Part Number	2170395-1
Part Status	Active
Connector Type	QSFP+
Connector Style	Cage with Heat Sink
Number of Ports	1X1 port
Included Lightpipe	NO
PCB Mounting Style	Through Hole - Press-Fit
Data Rate (Max)	-
Features	EMI Shielded
Operating Temperature Range	-55 – 105 °C
PCB Thickness (Recommended)	1.45 mm [ .057 in ]
Tail Length	2.2 mm [ .086 in ]
Cage Material	Nickel Silver
EMI Containment Feature Type	EMI Springs
Circuit Application	Signal
Pluggable I/O Applications	SFP+ Stacked Belly-to-Belly

You may be interesting in below considerate supports:

Datasheet	Request by email to	contact us
Samples	Free	For Free samples delivery, pls advise below infomation For Shipping
		Company Name
		Delivery Address
		Telephone Number
		Contact Person
		UPS/DHL/Fedex/TNT A.C	(If available)
Trial Production	U/P(USD)	$0.09-$1.85	We can ship out parts directly to your warehouse/door to door
	L/T(Weeks)	Stock
	Shipping Term	DAP/CIF/FCA/FOB
Mass Production	U/P(USD)	Stock
	L/T(Weeks)	Stock
	Shipping Term	DAP/CIF/FCA/FOB
	Lifecycel	More than 20 years	You can use our parts for long term consideration
	Reject Ratio	Zero Defective (100% Tested)
Special Services	Accept customized service		Accept revised designing
Now you can contact us instantly

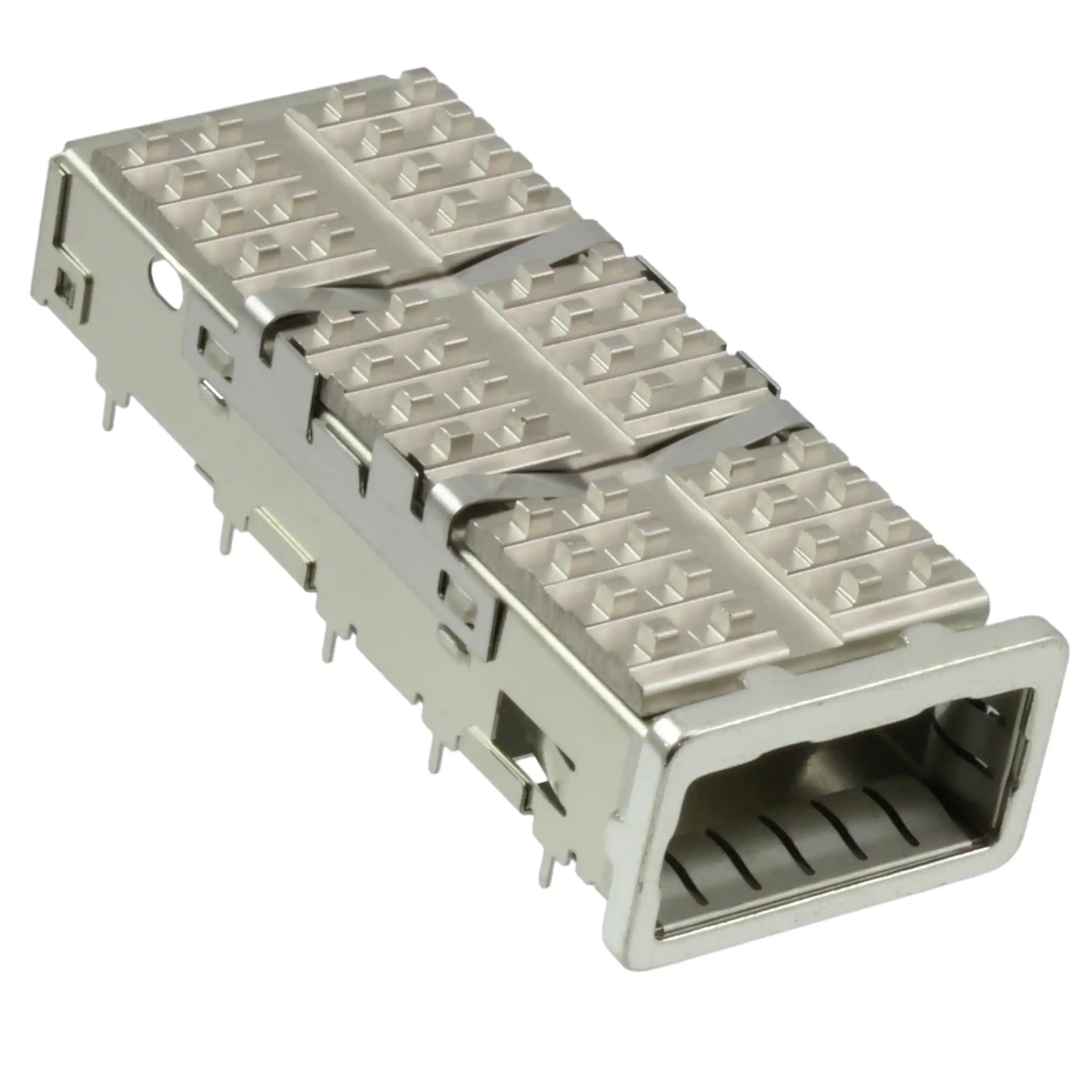

2170395-1 QSFP+ Cage 1x1 Port With Heat Sink Connector Solder

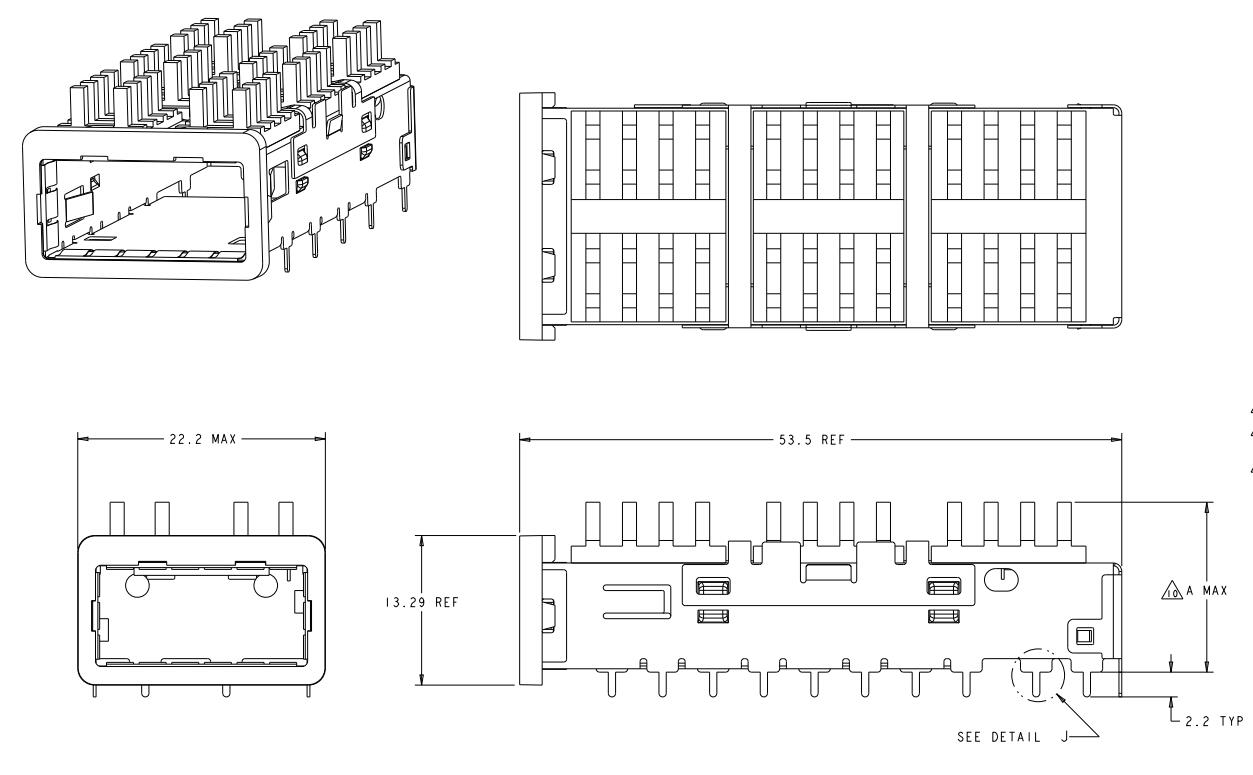

2170395-1 QSFP+ Cage 1x1 Port With Heat Sink Connector Solder Drawing:

2170395-1 QSFP+ Cage 1x1 Port With Heat Sink Connector Solder

What is QSFP+?

QSFP+ stands for Quad Small Form-Factor Pluggable Plus.
A parallel and hot-swappable fiber optical module that provides high-density 40G connectivity options

for high-performance computing networks and modern data centers.

2170395-1 Description:

.2170395-1 QSFP+ Cage With Heat Sink
.2170395-1 1x1 Port QSFP+ Cage
.2170395-1 QSFP+ Cage Connector Solder

.2170395-1 QSFP+ Cage Assembly

2170395-1 Similar Part Number :

4-2170705-2	2143451-1	2291634-2
2291634-3	2007170-1	1888971-1
2170395-1	2299056-1	1551892-3
2-2170705-5	2344508-1	2007464-1
2170703-6	2170744-1	2227731-1
