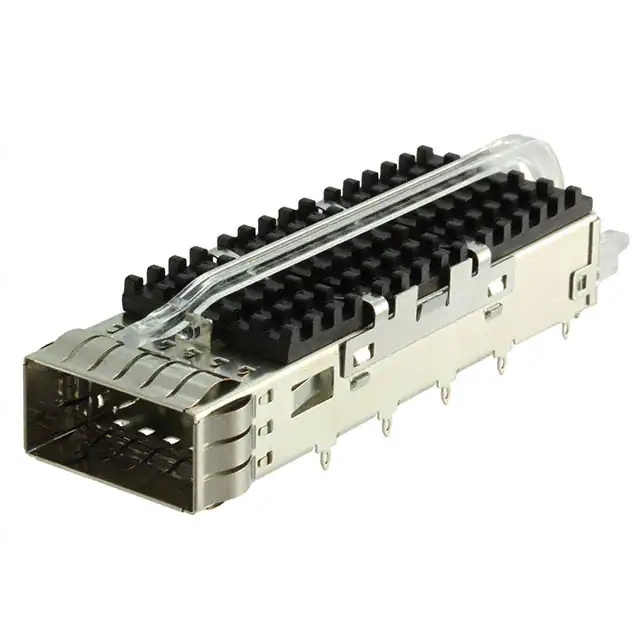

2170705-7 ZQSFP+ Cage With Heat Sink 1x1 Port 28 Gb/s Included Lightpipe

Name: 21707057 ZQSFP Cage With Heat Sink 1x1 Port 28 Gbs Included Lightpipe
Brand: LINK-PP
Price: 0.11 USD

2170705-7 ZQSFP+ Cage With Heat Sink 1x1 Port 28 Gb/s Included Lightpipe Manufactures

Brand Name : LINK-PP

Certification : ISO 9001,ISO 14001,UL,SGS,REACH168

Place of Origin : Guangdong,China

MOQ : 10/100/25K

Price : $0.11-$35

Payment Terms : TT,NET30/60/90 Days

Supply Ability : 350K/Month

Delivery Time : Stock

Packaging Details : 20/Tray

Original Part No : 2170705-7

Connector Type : ZQSFP+ Cage Assembly

EMI Springs : Internal/External EMI Springs

Data Rate (Max) : 28 Gb/S

Light Pipe : Included Lightpipe

Port Configuration : 1 x 1 (Single)

Heat Sink : With Heat Sink

Connector System : Cable-to-Board

Part Status : Active

Lifecycle : More Than 20Years

Contact Now

2170705-7 zQSFP+ Cage description:

QSFP, QSFP+ & zQSPF+, Cage Assembly, 1 x 1, Internal/External EMI Springs, Included Lightpipe, Standard, Data Rate (Max) 28 Gb/s, zQSFP+/QSFP28

2170705-7 Cage assembly designed for QSFP28/56 form factor with efficient thermal dissipation. This pluggable I/O connector is integrated with the heat sink, ensuring thermal management. The connector and cage assembly are available in a 1 x 1 port matrix configuration. The internal/external EMI springs can suppress electromagnetic interference.
The connector system is wire-to-board, providing a safe and reliable connection. Through-hole and right-angle mounting to the PCB board. Each cage assembly includes a pin-type heat sink with a height rating of 4.2 mm for PCI. It is designed to operate over a wide temperature range, making it suitable for a variety of environmental conditions. Ideal for pluggable I/O applications such as SFP+ stacked Belly-to-Belly connections. It comes with light pipes for added convenience.

Cage Type	Cage with Heat Sink	Termination Method to Printed Circuit Board	Through Hole - Press-Fit
Form Factor	QSFP28/56	Termination Post & Tail Length	2.05 mm [.081 in]
Pluggable I/O Product Type	Cage Assembly	Connector Mounting Type	Board Mount
Thermal Accessory Type Included	Heat Sink	Cage Material	Nickel Silver
Connector System	Cable-to-Board	PCB Thickness (Recommended)	1.57 mm [.062 in]
Sealable	No	Operating Temperature Range	-40 – 85°C [-40 – 185°F]
Mounting Type	Through Hole, Right Angle	Pluggable I/O Applications	SFP+ Stacked Belly-to-Belly
Termination	Press-Fit	Circuit Application	Signal
Connector & Contact Terminates To	Printed Circuit Board	UL Flammability Rating	UL 94V-0
Port Matrix Configuration	1 x 1	EMI Containment Feature Type	Internal/External EMI Springs
Number of Ports	1	Included Lightpipe	Yes
Lightpipe Configuration	Single-Round	Enhancements	Standard
EMI Containment Feature	Type Internal/External EMI Springs	Number of Rear EONs per Port Column	1
Data Rate (Max) (Gb/s)	28	Heat Sink Height	4.2 mm [.165 in]
Heat Sink Style	Pin	Heat Sink Height Class	PCI
Heat Sink Finish	Anodized Black	PCB Contact Termination Area Plating Material	Tin
