L22H007-0 SMD Ethernet Magnetic Transformers Single Port 1000 Base - T LAN Filter

  • 1
  • 2

Brand Name : LINK-PP

Model Number : LPxxxxxx

Certification : UL,RoHS,Reach,ISO

Place of Origin : Guangdong,China

MOQ : 400/2000/10K/25K

Price : $0.06-$3.2

Payment Terms : TT,NET30/60/90 Days

Supply Ability : 3KK/Month

Delivery Time : Stock

Packaging Details : T&R

Original : L22H007-0

Equivalent : LPxxxxxx

Speed : 1000 Base-T

Transformer Type : Isolation and Data Interface

Operating Temperature : 0~+70℃

File : PDF/3D/ISG/Stp/Step/Datasheet/Touchstone Format/S-parameters

Contact Now

L22H007-0 SMD Ethernet Magnetic Transformers Single Port 1000 Base –T LAN Filter

Item Part Number L22H007-0
LINK-PP Part Number LPxxxxxx
Manufacturer LINK-PP
Speed 1000 BASE-T
Number of Ports Single Ports
PIN number 24 PIN
Cores per Port 8
POE Non PoE
Type SMD
Size 17.55 x 16 x 6
Pin Pitch

1.27
Circuits 2C+T
Operating Temperature 0~+70℃
CMC Cable

You may be interesting in below considerate supports:
Datasheet Request by email to contact us
Samples Free For Free samples delivery, pls advise below infomation For Shipping
Company Name
Delivery Address
Telephone Number
Contact Person
UPS/DHL/Fedex/TNT A.C (If available)
Trial Production U/P(USD) $0.06-$3.2 We can ship out parts directly to your warehouse/door to door
L/T(Weeks) Stock
Shipping Term DAP/CIF/FCA/FOB
Mass Production U/P(USD) Stock
L/T(Weeks) Stock
Shipping Term DAP/CIF/FCA/FOB
Lifecycel More than 20 years You can use our parts for long term consideration
Reject Ratio Zero Defective (100% Tested)
Special Services Accept customized service Accept revised designing
Now you can contact us instantly

L22H007-0 SMD Ethernet Magnetic Transformers Single Port 1000 Base - T LAN Filter

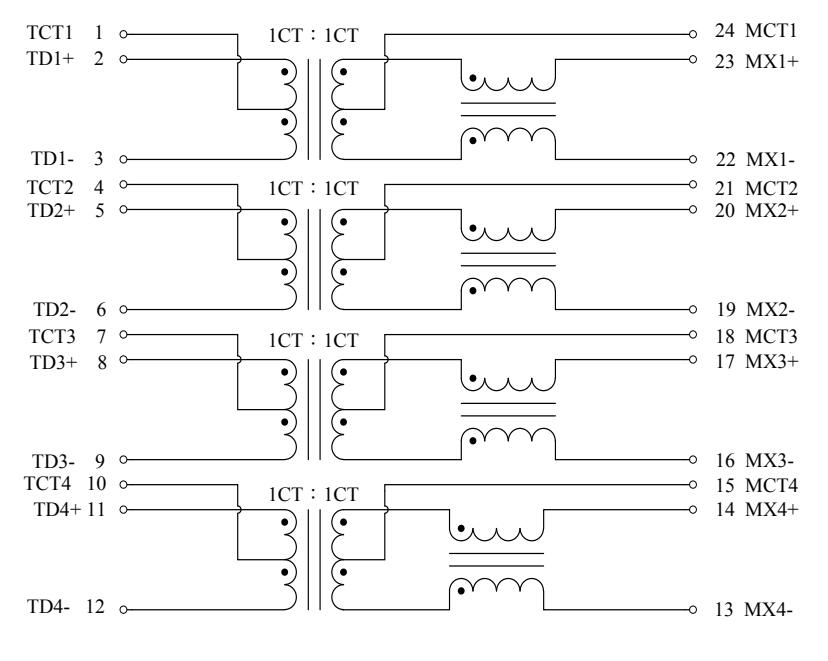

L22H007-0​ Single Port 1000 Base –T LAN Filter ELECTRICAL CHARACTERISTICS Schematic:

L22H007-0 SMD Ethernet Magnetic Transformers Single Port 1000 Base - T LAN Filter

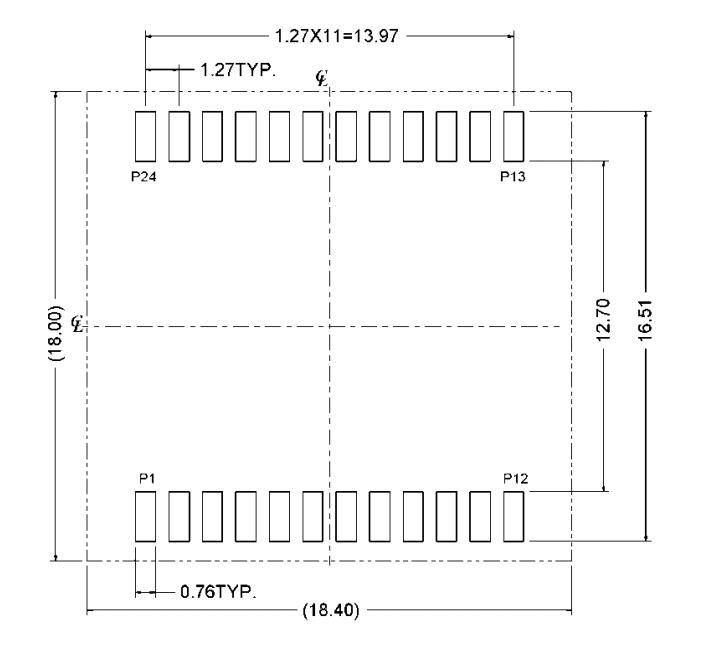

L22H007-0 SMD Ethernet Magnetic Transformers Recommened PCB Layout (Unit mm)
L22H007-0 SMD Ethernet Magnetic Transformers Single Port 1000 Base - T LAN Filter

L22H007-0​​ LAN Filter SPECIFICATION:

Designed for Ethernet 1000 Base-T,Single port applications.


Supports 4 pairs of category 5 UTP cable.


Cable interface for isolation and low common mode emissions.


Compliant with IEEE 802.3ab standard for 1000 Base-T.


Compliant with RoHS&Halogen Free requirements.


Operating and Storage Temperature
Operating Temperature: 0°C to +70°C
Storage Temperature :
-25°C to +105°C


Packing Information
400 pcs finished goods per reel
3 reels( 1200 pcs finished goods) per inner box
2 Inner boxes(2400 pcs finished goods) per master carton

L22H007-0 Similar Part Number :

L19T003-4 L19T004-3 L22A003-3
L22A007-3 L22B003-0 L22B005-0
L22B006-0 L22H004-S L22H005-3
L22H006-2 L22H006-4 L22H007-0
L22H008-3 L22H010-3 L22H017-0
