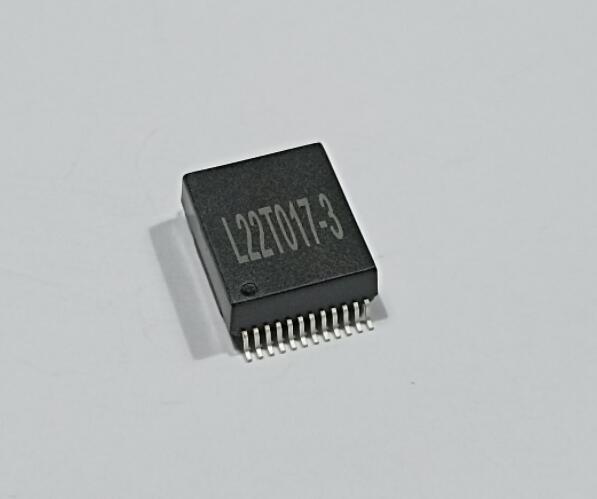

L22T017-3 Single Port 1000 Base –T LAN Filter Magnetic Transformer Meet IEEE802.3bt type3 standard PoE 60W
| UDE Part Number | L22T017-3 |
| LINK-PP Part Number | LPxxxxxx |
| Manufacturer | LINK-PP |
| Speed | 1000 BASE-T |
| Number of Ports | Single Port |
| PIN number | 24 PIN |
| Cores per Port | 8 |
| POE | PoE_30/60W |
| Type | SMD |
| Size | 18.1 x 16 x 6.2 |
| Pin Pitch | 0.99 |
| Circuits | 2C+T |
| Operating Temperature | -40~+85℃ |
| CMC | Cable |
| You may be interesting in below considerate supports: |
| Datasheet | Request by email to | contact us |
| Samples | Free | For Free samples delivery, pls advise below infomation For Shipping |
| Company Name | |
| Delivery Address | |
| Telephone Number | |
| Contact Person | |
| UPS/DHL/Fedex/TNT A.C | (If available) |
| Trial Production | U/P(USD) | $0.06-$3.2 | We can ship out parts directly to your warehouse/door to door |
| L/T(Weeks) | Stock |
| Shipping Term | DAP/CIF/FCA/FOB |
| Mass Production | U/P(USD) | Stock | |
| L/T(Weeks) | Stock |
| Shipping Term | DAP/CIF/FCA/FOB |
| Lifecycel | More than 20 years | You can use our parts for long term consideration |
| Reject Ratio | Zero Defective (100% Tested) |
| Special Services | Accept customized service | Accept revised designing |
Now you can contact us instantly
|
UDE L22T017-3 FEATURES:
Designed for Ethernet 1000 Base-T,Single port applications.
Supports 4 pairs of category 5 UTP cable.
Cable interface for isolation and low common mode emissions.
Design to meet EEE 802.3bt type3 with 720mA balanced current.
Compliance with RoHS&Halogen Free requirements.
Operating and Storage Temperature
Operating Temperature: -40°C to +85°C
Storage Temperature :
-25°C to +105°C
Packing Information
500 pcs finished goods per reel
3 reels( 1500 pcs finished goods) per inner box
2 Inner boxes(3000 pcs finished goods) per master carton

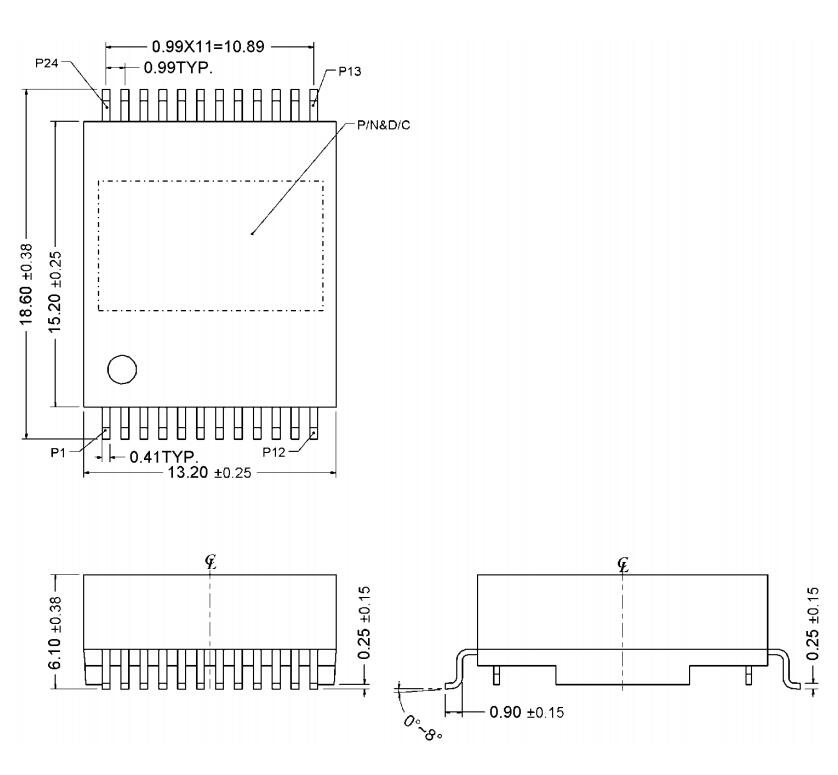

L22T017-3 Single Port 1000 Base –T LAN Filter Product Dimension:

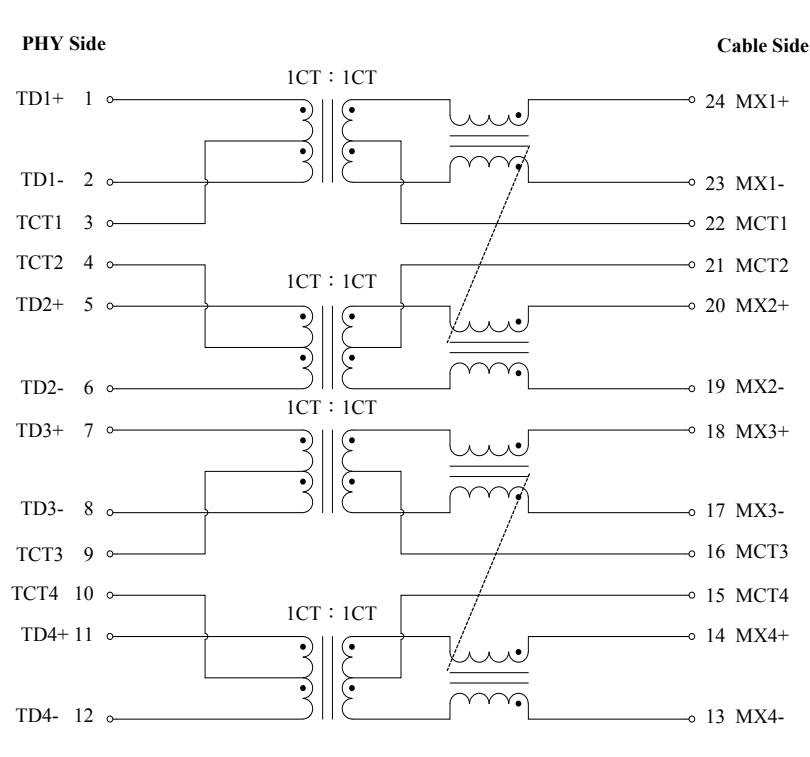

L22T017-3 Single Port 1000 Base –T Magnetic Transformer ELECTRICAL CHARACTERISTICS Schematic:

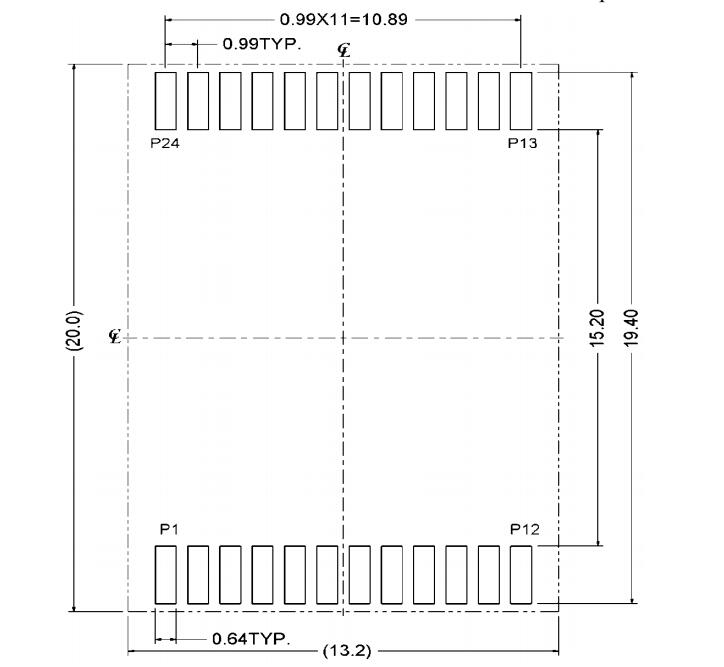

UDE L22T017-3 Recommened PCB Layout (Unit mm)
