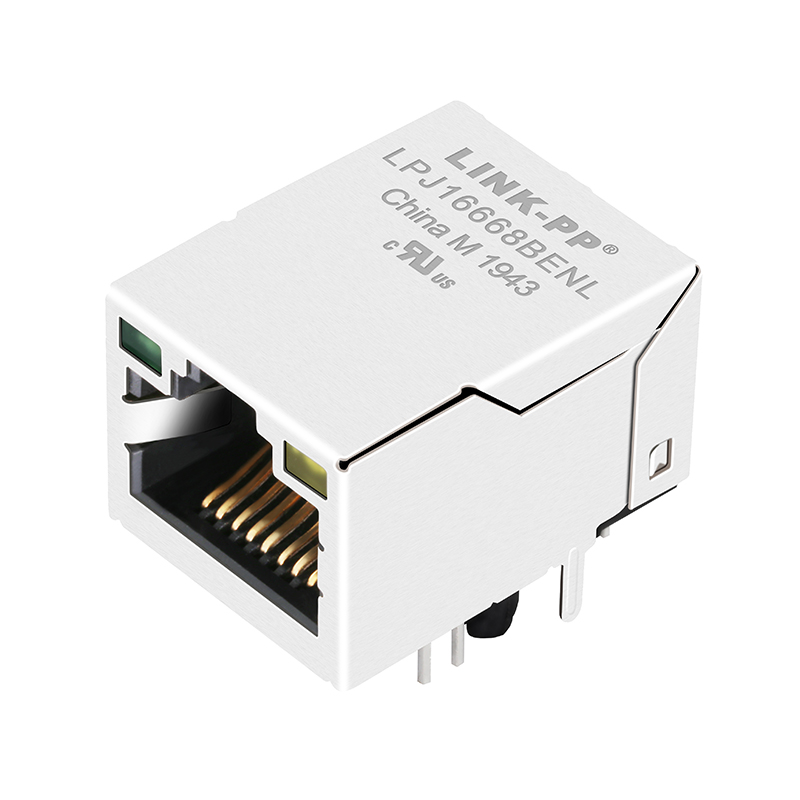

ARJM11D7-104-AB-EW2 Tab UP 10/100 Base-T Green/Yellow Led 1 Port PoE+ RJ45 Magnetic Connector
ARJM11D7-104-AB-EW2 Compatible LINK-PP LPJ16668BENL 10/100 Base-T RJ45 Connector for Smart Meters and Satellite (POE+, 1 Port, Tab UP, Green/Yellow Led)
The LPJ16668BENL supports speed 10/100 Base-T, It is compliant to IEEE 802.3 at, UL, Reach, RoHs, ISO19001,ISO14001 standards.It can be used to support application, such as Smart Meters, Router, Automation and Network Firewall.
| LINK-PP Part Number: | LPJ16668BENL | Part Number | ARJM11D7-104-AB-EW2 |
| Part Status | Active | Connector Type | Jack |
| Number of Positions/Contacts | 8p8c (RJ45, Ethernet) | Application-Lan | Ethernet(PoE+) |
| Number of Ports | 1x1 Port | Speed | 10/100 Base-T |
| Latch | UP | Cores per Port | 4 |
| Orientation | 90° Angle (Right) | PCB Mount Angle | SIDE ENTRY |
| Shield EMI Tabs | Without | LED Option | Green/Yellow |
| PCB | FR4 | PCB Retaining Post | T POST |
| Package Height (Inches/mm) | 0.530/13.45 | Package Length (Inches/mm) | 0.837/21.25 |
| Package Width (Inches/mm) | 0.628/15.95 | Temperature | -40℃ TO 85℃ |
| Bst Circuit | Yes | AutomDX | YES |
| Diodes | No | Contact Mating Area Plating | GOLD 6u"/15u"/30u" |
| Turns Ratio RX/TX | 1CT:1CT | Configuration RX/TX | T,C |
ARJM11D7-104-AB-EW2 1 Port POE+ RJ45 Ethernet Magjack Package:
ARJM11D7-104-AB-EW2 Tab UP 10/100 Base-T Green/Yellow Led 1 Port PoE+ RJ45 Connector:
