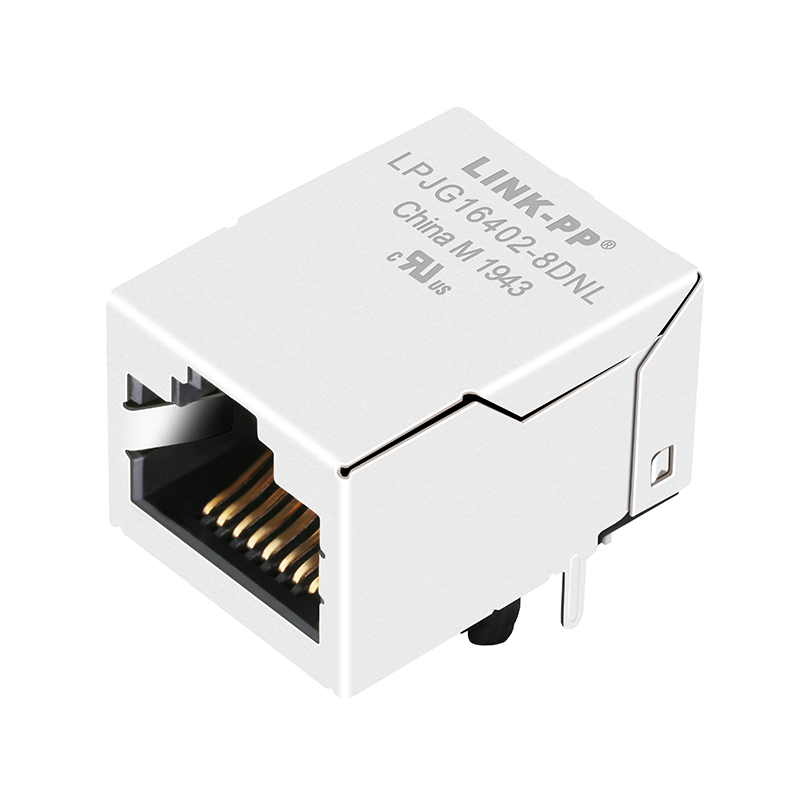

RT9-HK-0002 1000 Base-T Tab Up Without Led 1x1 Port Integrated Magnetics RJ45 Jack
RT9-HK-0002 Compatible LINK-PP LPJG16402-8DNL 1000 Base-T Integrated Magnetics RJ45 Jack for Smart Meters and Satellite (Single Port, Tab UP, Without Led)
The LPJG16402-8DNL supports speed 100/1000 Base-T, It is compliant to IEEE 802.3, UL, Reach, RoHs, ISO19001,ISO14001 standards.It can be used to support application, such as Smart Meters, Solar Inverter, Automation and Video Recorder.
| LINK-PP Number: | LPJG16402-8DNL | Part Number | RT9-HK-0002 |
| Part Status | Active | Mounting Type | Through Hole |
| Number of Positions/Contacts | 10p8c (RJ45, Ethernet) | Application-Lan | Ethernet(NoN PoE) |
| Number of Ports | 1x1 Port | Speed | 10/100/1000 Base-T |
| Latch | Up | Cores per Port | 8 |
| Orientation | 90° Angle (Right) | PCB Mount Angle | SIDE ENTRY |
| Shield EMI Tabs | Without | LED Option | Without Leds |
| PCB | FR4 | PCB Retaining Post | T POST |
| Package Height (Inches/mm) | 0.530/13.45 | Package Length (Inches/mm) | 0.837/21.25 |
| Package Width (Inches/mm) | 0.628/15.95 | Temperature | 0℃ TO 70℃ |
| Bst Circuit | Yes | AutomDX | YES |
| Diodes | - | Contact Mating Area Plating | GOLD 6u"/15u"/30u" |
| Turns Ratio RX/TX | 1CT:1CT | Configuration RX/TX | T,C |
| You may be interesting in below considerate supports: |
| Datasheet | Request by email to | contact us |
| Samples | Free | For Free samples delivery, pls advise below infomation For Shipping |
| Company Name | |
| Delivery Address | |
| Telephone Number | |
| Contact Person | |
| UPS/DHL/Fedex/TNT A.C | (If available) |
| Trial Production | U/P(USD) | $0.09-$1.85 | We can ship out parts directly to your warehouse/door to door |
| L/T(Weeks) | Stock |
| Shipping Term | DAP/CIF/FCA/FOB |
| Mass Production | U/P(USD) | Stock | |
| L/T(Weeks) | Stock |
| Shipping Term | DAP/CIF/FCA/FOB |
| Lifecycel | More than 20 years | You can use our parts for long term consideration |
| Reject Ratio | Zero Defective (100% Tested) |
| Special Services | Accept customized service | Accept revised designing |
| Now you can contact us instantly |
RT9-HK-0002 1000 Base-T Rj45 Ethernet Jack Package:
Package:Tray N.W/pcs:0.008kg
SPQ:50pcs Qty/carton:1000pcs
Carton size:32*30*31cm G.W./carton:8kg
RT9-HK-0002 1000 Base-T Tab Up Without Led 1x1 Port Integrated Magnetics RJ45 Jack
LINK-PP INT'L TECHNOLOGY CO., LIMITED
is a specialized manufacturer of magnetic telecom and networking components, certificated by ISO9001:2000 ,ROSH,REACH, CEand UL, owns advanced manufacturing facilities and test equipments imported from abroad. Established in 1997, we have around 2000 staff at present. With the abundant productive capacity of 3000K per month, we are able to delivery the goods within the short time.Moreover, we can provide the professional complete solution for magnetic components and strong technical support as well. Our products are widely used in networking and communication equipments such as HUB,PC card,Switch
,Router,PC Mainboard,SDH,PDH,IP Phone,xDSL modem.
Link-pp Main Product
• RJ45 Modular Jack & USB Jack
• 10/100M/1G/2.5G/5G/10G Discrete Magnetic
• 10/100M/1G/2.5G/5G/10G Magnetic RJ45
• T1/E1/T3/E3 Transformer
• SFP/SFP+ Cage&Receptacle Connector
• Optical Transceivers
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 3-7 days if the goods are in stock. or it is 2-3 Weeks if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight..
Q: What is your terms of payment ?
A: TT/LC/DP/DA/Paypal/Western Union/MoneyGram
