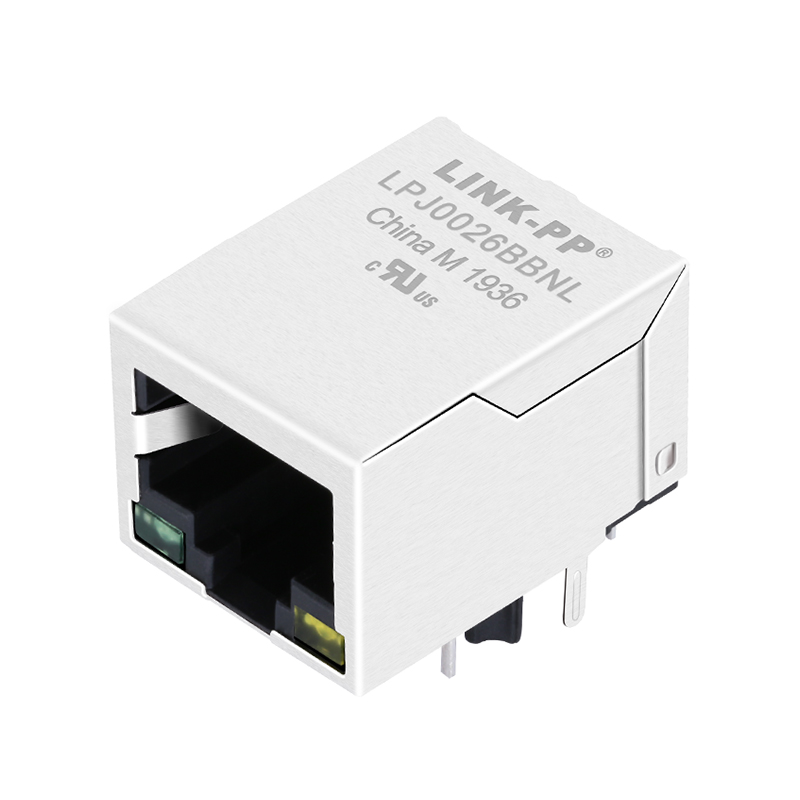

HFJ11-S026E-S1LS12 10/100 Base-T Green/Yellow Led 1x1 Port RJ45 Ethernet Magjack
HFJ11-S026E-S1LS12 Compatible LINK-PP LPJ0026BBNL 10/100 Base-T RJ45 Ethernet Magjack for Server and Network Firewall (1x1 Port, Green/Yellow Led)
The LPJ0026BBNL supports speed 10/100 Base-T, It is compliant to IEEE 802.3, UL, Reach, RoHs, ISO19001,ISO14001 standards.It can be used to support application, such as Monitoring System, Hub, Server and Embedded Main Board.
| LINK-PP Part Number: | LPJ0026BBNL | Part Number | HFJ11-S026E-S1LS12 |
| Part Status | Active | Connector Type | Jack |
| Number of Positions/Contacts | 8p8c (RJ45, Ethernet) | Application-Lan | Ethernet(NoN PoE) |
| Number of Ports | 1x1 Port | Speed | 10/100 Base-T |
| Latch | Down | Cores per Port | 5 |
| Orientation | 90° Angle (Right) | PCB Mount Angle | SIDE ENTRY |
| Shield EMI Tabs | Without | LED Option | Green/Yellow |
| PCB | FR4 | PCB Retaining Post | T POST |
| Package Height (Inches/mm) | 0.524/13.30 | Package Length (Inches/mm) | 0.837/21.25 |
| Package Width (Inches/mm) | 0.627/15.93 | Temperature | 0℃ TO 70℃ |
| Bst Circuit | Yes | AutomDX | YES |
| Diodes | No | Contact Mating Area Plating | GOLD 6u"/15u"/30u" |
| Turns Ratio RX/TX | 1CT:1CT | Configuration RX/TX | T,C |
HFJ11-S026E-S1LS12 Single Port RJ45 Ethernet Magjack Package:
HFJ11-S026E-S1LS12 10/100 Base-T Green/Yellow Led 1x1 Port RJ45 Ethernet Jack
