PT61018PEL Dual Port SMD Ethernet Magnetic Transformer Modules 100 BASE-T 16 Pin

Brand Name : LINK-PP

Model Number : LPXXXXXX

Certification : UL,RoHS,Reach,ISO

Place of Origin : Guangdong,China

MOQ : 400/2000/10K/25K

Price : $0.06-$3.2

Payment Terms : TT,NET30/60/90 Days

Supply Ability : 3KK/Month

Delivery Time : Stock

Packaging Details : T&R

Original : PT61018PEL

Equivalent : LPxxxxxx

Speed : 10/100 Base-T

Number of Ports : Dual Port

Temperature : -40°C ~ 85°C

File : PDF/3D/ISG/Stp/Step/Datasheet/Touchstone Format/S-parameters

Contact Now

PT61018PEL 100 BASE-T 16 Pin Dual Port SMD Ethernet Magnetic Transformer Modules

PT61018PEL 10/100 Base-T Lan Transformer For Digital Camera (SMD ,16 PIN, Dual Port )
LINK-PP Part Number LPxxxxxx
Other Part Number PT61018PEL
Speed 10/100BASE-T
Number of Ports Dual
Application - LAN ETHERNET (NON PoE)
Package SMT
Temperature -40 TO 85℃
AutomDX YES
Comment SAME AS NL VERSION
Configuration RX T,C,S
Configuration TX T,C,S
Construction OPEN FRAME
Cores Per Port 4
Number of Ports SINGLE
Package Height (Inches/mm) 0.222/5.65
Package Length (Inches/mm) 0.504/12.80
Package Width (Inches/mm) 0.272/6.90
Turns Ratio RX 1CT:1CT
Turns Ratio TX 1CT:1CT

PT61018PEL Dual Port SMD Ethernet Magnetic Transformer Modules 100 BASE-T 16 Pin

PT61018PEL Ethernet Magnetic Transformer Features:

■ IEEE 802.3 Ethernet compatible
■ Dual channel 16-pin SMD
■ Wide operating temperature range: -40 to +85 °C
■ RoHS compliant*

PT61018PEL Applications:

■ Ethernet

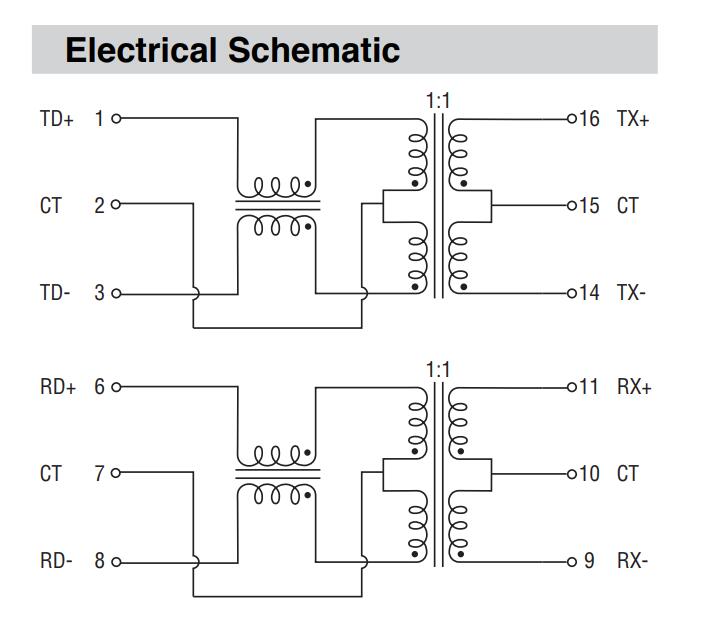

PT61018PEL Electrical Schematic​:
PT61018PEL Dual Port SMD Ethernet Magnetic Transformer Modules 100 BASE-T 16 Pin

You may be interesting in below considerate supports:
Datasheet Request by email to contact us
Samples Free For Free samples delivery, pls advise below infomation For Shipping
Company Name
Delivery Address
Telephone Number
Contact Person
UPS/DHL/Fedex/TNT A.C (If available)
Trial Production U/P(USD) $0.06-$3.2 We can ship out parts directly to your warehouse/door to door
L/T(Weeks) Stock
Shipping Term DAP/CIF/FCA/FOB
Mass Production U/P(USD) Stock
L/T(Weeks) Stock
Shipping Term DAP/CIF/FCA/FOB
Lifecycel More than 20 years You can use our parts for long term consideration
Reject Ratio Zero Defective (100% Tested)
Special Services Accept customized service Accept revised designing
Now you can contact us instantly

PT61018PEL Dual Port SMD Ethernet Magnetic Transformer Modules 100 BASE-T 16 Pin

PT61018PEL Description:
1.PT61018PEL Gigabit Ethernet Transformer
2.PT61018PEL 1000 BASE-T LAN Transformer
3.PT61018PEL 16 Pin Lan Transformer
4.PT61018PELDual Port Telecom Transformer
