JT5-2610CNL 10G Base-T 2x6 Port RJ45 Magnetic Jacks SIDE ENTRY 12PIN With Led
JT5-2610CNL Compatible LINK-PP 10G Base-T RJ45 Magnetic Jacks for Entrance Guard System and Switches(2x6 Port, With LED)
The JT5-2610CNL supports speed 10G Base-T, It is compliant to IEEE 802.3, UL, Reach, RoHs, ISO19001,ISO14001 standards.It can be used to support application, such as Switches, Ethernet Control, Hub and Entrance Guard System.
| LINK-PP Part Number | LPJGxxxxxx |
| Part Number | JT5-2610CNL |
| Part Status | Active |
| Speed | 10G BASE-T |
| Connector Type | Jack |
| Number of Positions/Contacts | 12p8c (RJ45, Ethernet) |
| LED Option | With LIGHT PIPES |
| Latch | Both |
| Number of Ports | 2X6 |
| PCB Mount Angle | SIDE ENTRY |
| Shield EMI Tabs | WITH |
| Temperature | 0 TO 70℃
|
| CONTACT MATING AREA PLATING | GOLD 50 U'' |
| PACKAGE HEIGHT MM | 25.59 |
| PACKAGE LENGTH MM | 41.4 |
| PACKAGE WIDTH MM | 87.12 |
| You may be interesting in below considerate supports: |
| Datasheet | Request by email to | contact us |
| Samples | Free | For Free samples delivery, pls advise below infomation For Shipping |
| Company Name | |
| Delivery Address | |
| Telephone Number | |
| Contact Person | |
| UPS/DHL/Fedex/TNT A.C | (If available) |
| Trial Production | U/P(USD) | $0.09-$1.85 | We can ship out parts directly to your warehouse/door to door |
| L/T(Weeks) | Stock |
| Shipping Term | DAP/CIF/FCA/FOB |
| Mass Production | U/P(USD) | Stock | |
| L/T(Weeks) | Stock |
| Shipping Term | DAP/CIF/FCA/FOB |
| Lifecycel | More than 20 years | You can use our parts for long term consideration |
| Reject Ratio | Zero Defective (100% Tested) |
| Special Services | Accept customized service | Accept revised designing |
Now you can contact us instantly
|

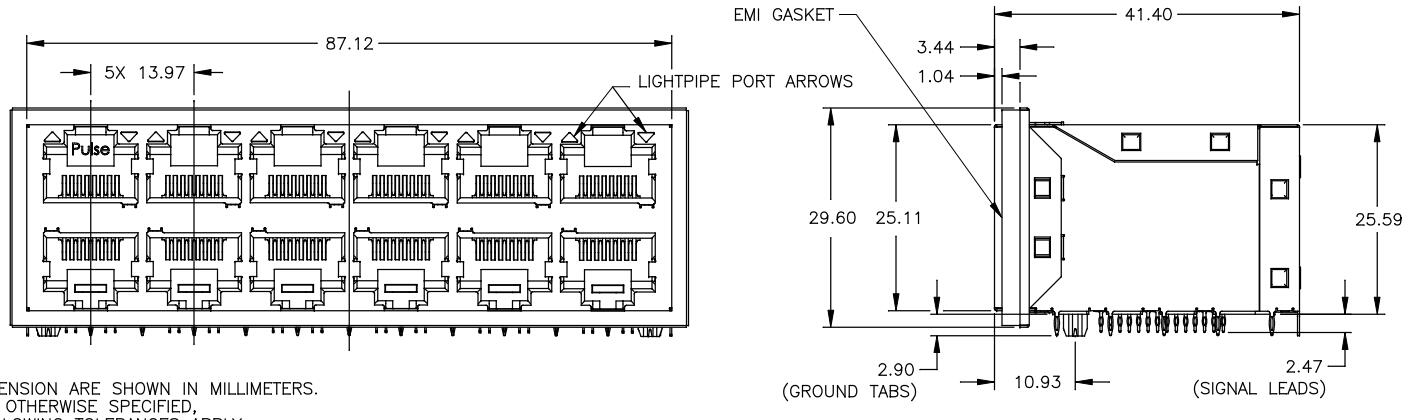

JT5-2610CNL 2x6 Port 10G Base-T RJ45 Magnetic Jacks Mechanical Specification:

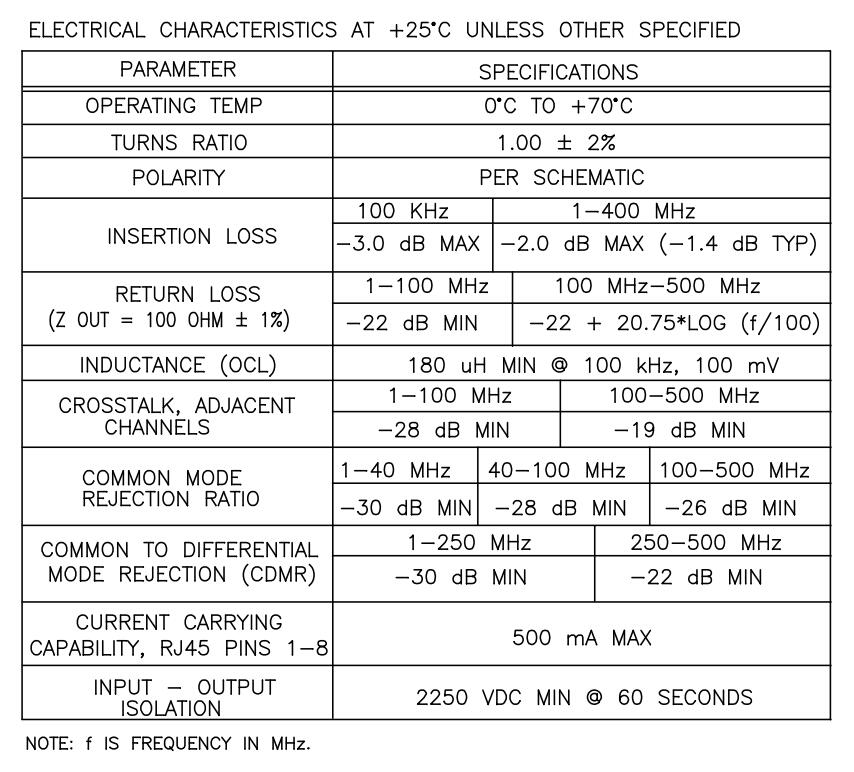

JT5-2610CNL RJ45 Magjack Electrical Specifications:
JT5-2610CNL RJ45 Connector Magjack Description:
1.JT5-2610CNL 10G Base-T RJ45 Jack
2.JT5-2610CNL 10G Base-T 2x6 Port RJ45 Connectors
3.JT5-2610CNL 2x6 Port 12PIN RJ45 MagJack
4.JT5-2610CNL 2x6 Port RJ45 Female Connector
