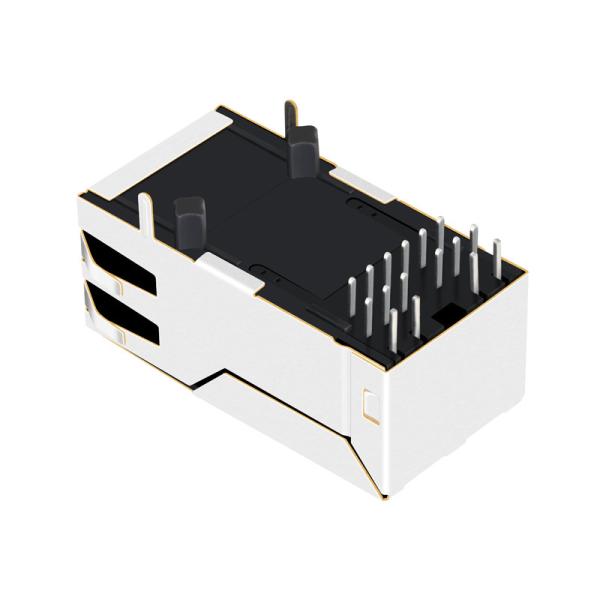

1840728-5 1X1 Port 1000BASE-T 1G41 RJ45 Magjack 12PIN Tab Up YG/G Led

  • 1
  • 2
  • 3

Brand Name : LINK-PP

Model Number : LPJxxxxxx

Certification : UL,ROHS,Reach,ISO

Place of Origin : GuangDong, China

MOQ : 50/500/1000

Price : OEM Price

Payment Terms : TT,NET30/60/90 Days

Supply Ability : 3000000/Month

Delivery Time : Stock

Packaging Details : Tray Package: 50 pcs in 1 tray,24tray in 1 carton, which is 32*30*31 , 8.5 KGS (1200pcs) of each carton

Original : 1840728-5

Equivalent : LPJxxxxxx

Ethernet Aplly : 100/1000 Base-T

Samples : Free Available

File : PDF/3D/ISG/Stp/Step/Datasheet/Touchstone Format/S-parameters

Lifecycle : More than 20Years

Contact Now

1840728-5 1X1 Port 1000BASE-T 1G41 RJ45 Magjack 12PIN Tab Up YG/G Led

The 1840728-5 supports speed 100/1000 Base-T, It is compliant to IEEE 802.3, UL, Reach, RoHs, ISO19001,ISO14001 standards.

LINK-PP Part Number LPJxxxxxx
Part Number 1840728-5
Part Status Active
Speed 100/1000 BASE-T
Connector Type Jack
Number of Positions/Contacts 12p8c (RJ45, Ethernet)
Cores per Port 8
LED Option Yellow&Green/Green Led
Latch Tab up
Number of Ports 1X1
PCB Mount Angle SIDE ENTRY
Shield EMI Tabs WITH
Temperature 0 TO 70℃

You may be interesting in below considerate supports:
Datasheet Request by email to contact us
Samples Free For Free samples delivery, pls advise below infomation For Shipping
Company Name
Delivery Address
Telephone Number
Contact Person
UPS/DHL/Fedex/TNT A.C (If available)
Trial Production U/P(USD) $0.09-$1.85 We can ship out parts directly to your warehouse/door to door
L/T(Weeks) Stock
Shipping Term DAP/CIF/FCA/FOB
Mass Production U/P(USD) Stock
L/T(Weeks) Stock
Shipping Term DAP/CIF/FCA/FOB
Lifecycel More than 20 years You can use our parts for long term consideration
Reject Ratio Zero Defective (100% Tested)
Special Services Accept customized service Accept revised designing
Now you can contact us instantly

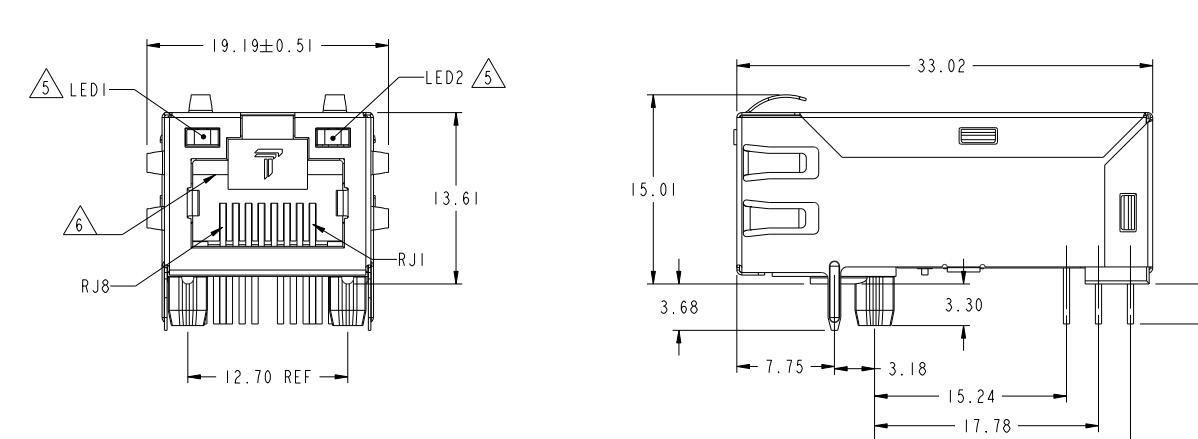

1840728-5 1G41 RJ45 Magjack Mechanical Specification:

1840728-5 1X1 Port 1000BASE-T 1G41 RJ45 Magjack 12PIN Tab Up YG/G Led

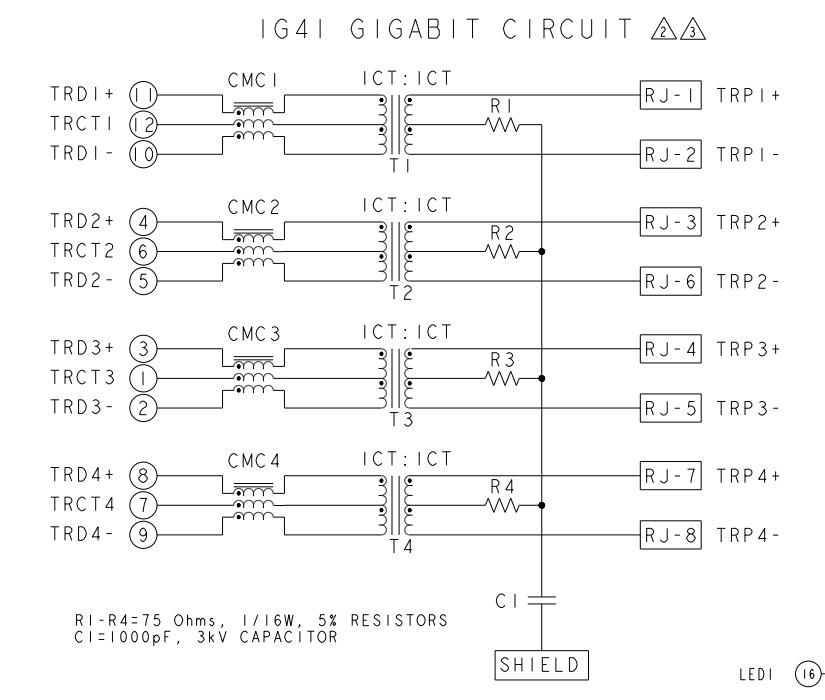

1840728-5 Rj45 Connector Electrical Schematic:
1840728-5 1X1 Port 1000BASE-T 1G41 RJ45 Magjack 12PIN Tab Up YG/G Led



1840728-5 RJ45 Magnetic jack Description:


1.1840728-5 1X1 Port GIGABIT Rj45 jack
2.1840728-5 1000 Base-T rj45 modular socket
3.1840728-5 Single Port Tab Up RJ45 MagJack

1840728-5 OEM/ODM Service:

If you want to display your own brand LOGO on the goods such as network connector and lan magnetics or any where. It is no any problem. Our OEM and ODM service is always ready to do it.

1840728-5 1X1 Port 1000BASE-T 1G41 RJ45 Magjack 12PIN Tab Up YG/G Led
