0875-1X1T-G4 1000 BASE-T Gigabit 10PIN RJ45 Female Connector Through Hole With Led
| The 0875-1X1T-G4 supports speed 100/1000 Base-T, It can be used to support application, such as Smart Home, Monitoring System, hub and switches. |
| LINK-PP Part Number | LPJxxxxxx |
| Part Number | 0875-1X1T-G4 |
| Part Status | Active |
| Speed | 1000 BASE-T |
| Connector Type | Jack |
| Mounting Type | Through Hole |
| Number of Positions/Contacts | 10p8c (RJ45, Ethernet) |
| Cores per Port | 8 |
| LED Option | Orange&Green/Yellow |
| Latch | Tab Up |
| Number of Ports | 1X1 |
| PCB Mount Angle | SIDE ENTRY |
| Shield EMI Tabs | WITH |
| Operating Temperature | 0 to 70ºC |
| You may be interesting in below considerate supports: |
| Datasheet | Request by email to | contact us |
| Samples | Free | For Free samples delivery, pls advise below infomation For Shipping |
| Company Name | |
| Delivery Address | |
| Telephone Number | |
| Contact Person | |
| UPS/DHL/Fedex/TNT A.C | (If available) |
| Trial Production | U/P(USD) | $0.09-$1.85 | We can ship out parts directly to your warehouse/door to door |
| L/T(Weeks) | Stock |
| Shipping Term | DAP/CIF/FCA/FOB |
| Mass Production | U/P(USD) | Stock | |
| L/T(Weeks) | Stock |
| Shipping Term | DAP/CIF/FCA/FOB |
| Lifecycel | More than 20 years | You can use our parts for long term consideration |
| Reject Ratio | Zero Defective (100% Tested) |
| Special Services | Accept customized service | Accept revised designing |
| Now you can contact us instantly |

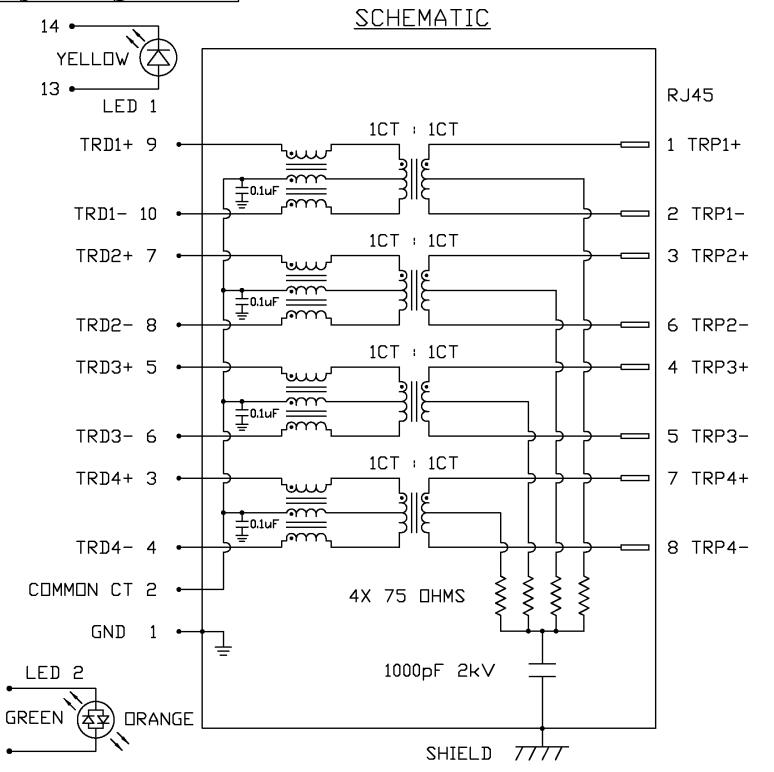

0875-1X1T-G4 1000 BASE-T RJ45 Female Connector Electrical Schematic:

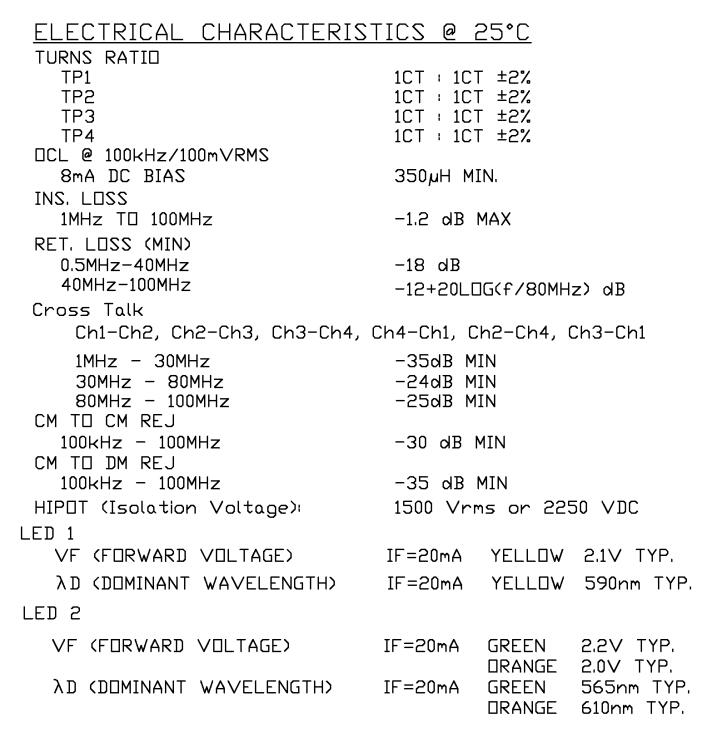

0875-1X1T-G4 Gigabit RJ45 Female Connector Electrical Specifications @ 25 °C:

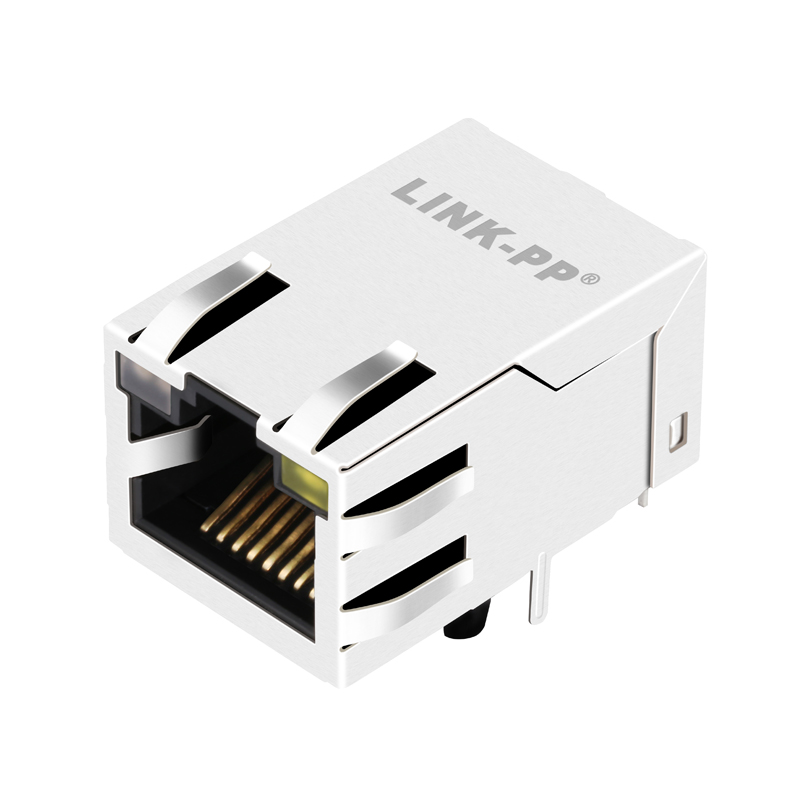

0875-1X1T-G4 1000 BASE-T Gigabit 10PIN RJ45 Connector Package:
0875-1X1T-G4 RJ45 Magnetic Jack Description:
1.0875-1X1T-G4 Gigabit RJ45 Jack
2.0875-1X1T-G4 1000 Base-T RJ45 Connector
3.0875-1X1T-G4 Single Port 10PIN RJ45 MagJack
4.0875-1X1T-G4 Tab UP RJ45 Female Connector
0875-1X1T-G4 Rj45 Magjack Similar Part Number :
| 0875-1X1T-G4 | 0875-1A1T-P2 | 0875-1AX1-BH |
| 0875-1X1T-B2 | 0826-1X1T-M1-F | 1-1840728-3
|
