0875-1X1T-B2 1000 Base-T Tab Up 1 Port RJ45 Modular Jack With OG/Y Led

Product Categories
LINK-PP INT'L TECHNOLOGY CO., LIMITED
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

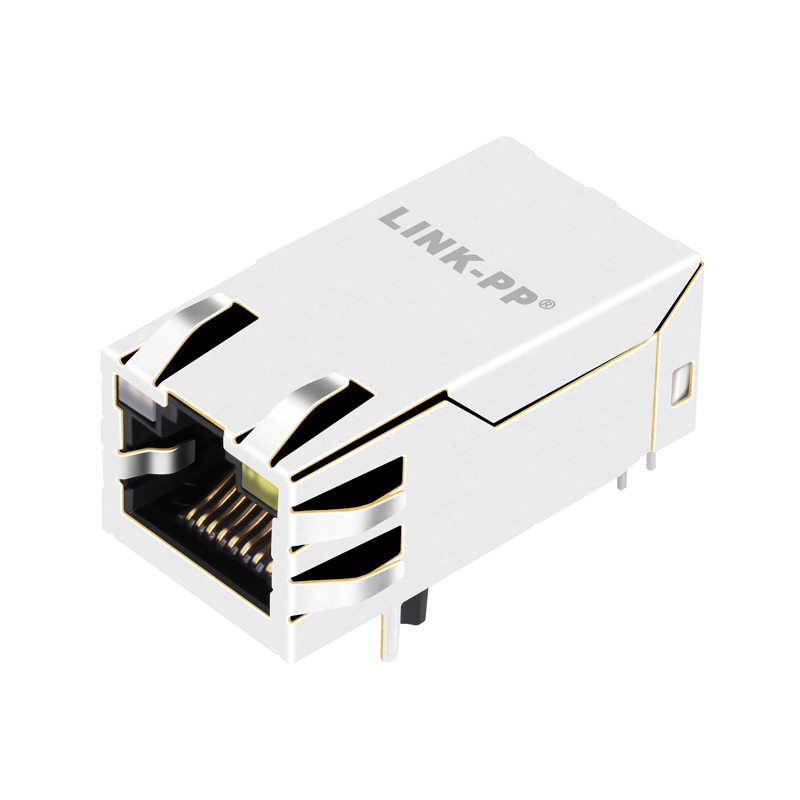

0875-1X1T-B2 1000 Base-T Tab Up 1 Port RJ45 Modular Jack With OG/Y Led

  • 1
  • 2

Brand Name : LINK-PP

Model Number : LPJxxxxxx

Certification : UL,ROHS,Reach,ISO

Place of Origin : GuangDong, China

MOQ : 50/500/1000

Price : OEM Price

Payment Terms : TT,NET30/60/90 Days

Supply Ability : 3000000/Month

Delivery Time : Stock

Packaging Details : Tray Package: 50 pcs in 1 tray,24tray in 1 carton, which is 32*30*31 , 8.5 KGS (1200pcs) of each carton

Original : 0875-1X1T-B2

Equivalent : LPJxxxxxx

Ethernet Aplly : 1000 Base-T

Samples : Free Available

File : PDF/3D/ISG/Stp/Step/Datasheet/Touchstone Format/S-parameters

Lifecycle : More than 20Years

Contact Now

0875-1X1T-B2 1000 Base-T Tab Up 1 Port RJ45 Modular Jack With OG/Y Led

The 0875-1X1T-B2 supports speed 100/1000 Base-T, It is compliant to IEEE 802.3, UL, Reach, RoHs, ISO19001,ISO14001 standards.
LINK-PP Part Number LPJxxxxxx
Part Number 0875-1X1T-B2
PoE Rating No POE
Part Status Active
Speed 1000 BASE-T
Connector Type Jack
Number of Positions/Contacts 12p8c (RJ45, Ethernet)
Cores per Port 8
LED Option Orange&Green/Yellow
Latch Tab Up
Number of Ports 1X1
PCB Mount Angle SIDE ENTRY
Shield EMI Tabs WITH
Operating Temperature 0 to 70ºC


0875-1X1T-B2 1000 Base-T Tab Up 1 Port RJ45 Modular Jack With OG/Y Led

You may be interesting in below considerate supports:
Datasheet Request by email to contact us
Samples Free For Free samples delivery, pls advise below infomation For Shipping
Company Name
Delivery Address
Telephone Number
Contact Person
UPS/DHL/Fedex/TNT A.C (If available)
Trial Production U/P(USD) $0.09-$1.85 We can ship out parts directly to your warehouse/door to door
L/T(Weeks) Stock
Shipping Term DAP/CIF/FCA/FOB
Mass Production U/P(USD) Stock
L/T(Weeks) Stock
Shipping Term DAP/CIF/FCA/FOB
Lifecycel More than 20 years You can use our parts for long term consideration
Reject Ratio Zero Defective (100% Tested)
Special Services Accept customized service Accept revised designing
Now you can contact us instantly

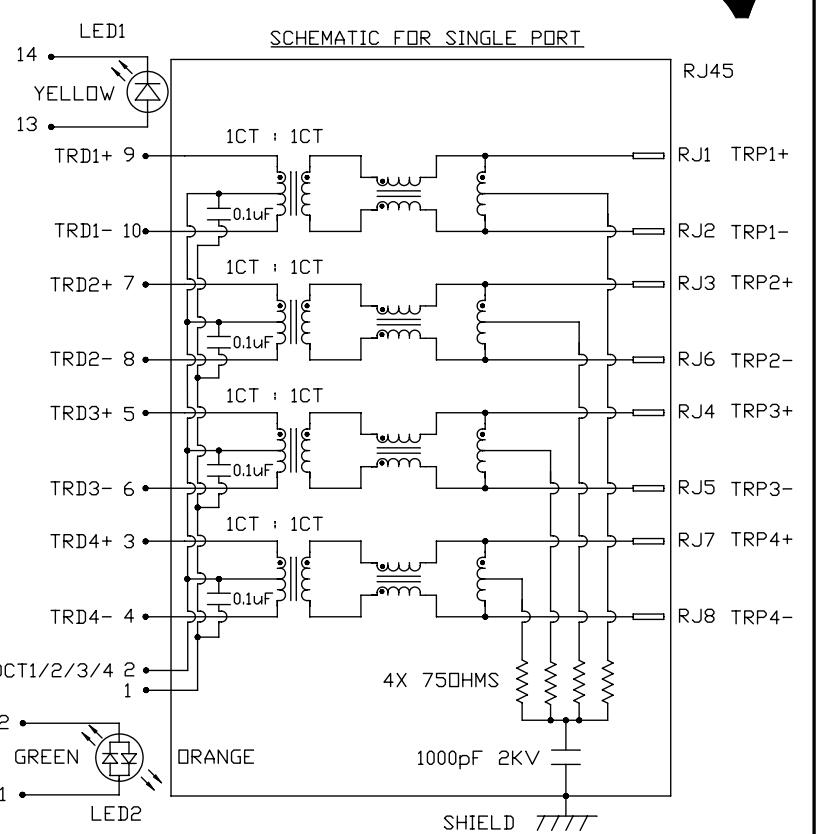

0875-1X1T-B2 1 Port RJ45 Modular Jack Electrical Schematic:
0875-1X1T-B2 1000 Base-T Tab Up 1 Port RJ45 Modular Jack With OG/Y Led



0875-1X1T-B2 Tab UP RJ45 MagJack Similar products:

0875-1X1T-B2 1000 Base-T Tab Up 1 Port RJ45 Modular Jack With OG/Y Led

0875-1X1T-B2 Rj45 Magjack Similar Part Number :

0875-1X1T-B2 0875-1A1T-P2 L8BJ-1K1T-KDE
0813-1X1T-M1-F 0826-1X1T-M1-F 0826-1X1T-JK-F


0875-1X1T-B2 RJ45 Modular Jack Description:


1.0875-1X1T-B2 RJ45 Jack
2.0875-1X1T-B2 1000 Base-T Magnetic RJ45 Connector
3.0875-1X1T-B2 one Port RJ45 MagJack With Led
4.00875-1X1T-B2 Tab UP RJ45 Female Connector

0875-1X1T-B2 Delivery Time:
- Material Preparation Time: 3 days (or inventory)
- Production & Assembly Time 9 days
- Testing & Packaging Time: 3 days
- Total Delivery Time: 15 days in 50,000pcs for safe delivery lead time.
- The faster delivery could be negotiable.
